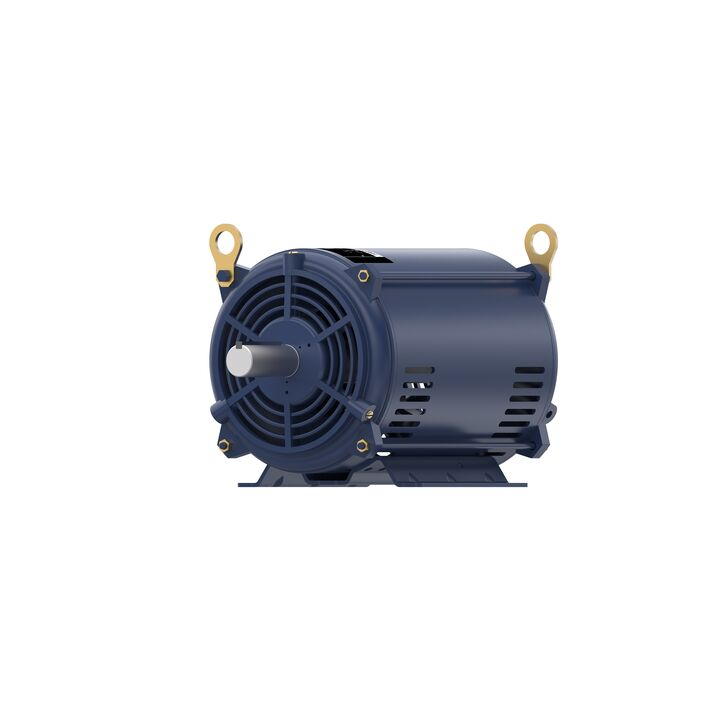

MARATHON MOTORS 213TTDBD6070 GT0016A-P / 213TTDBD6070AA General Purpose Motor, 1800 RPM, 60 Hz, 230/460 V, 7.5 HP
Get it by Tuesday, Aug 25
€2,023.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Amps | 9.9/19.8A |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 91% |
| Enclosure Type | Drip Proof |
| Frame Material | Rolled Steel |
| Frame Type | 213T |
| Frequency | 60 Hz |
| Hp | 5 hp, 7 1/2 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Max. Speed | 1766 RPM |
| Mounting Type | Rigid Base |
| No. Of Speeds | 1 |
| Phase | 3 |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Design | T |
| Shaft Dia. | 1 3/8" |
| Thermal Protection | NO Protection |
| Type | Three Phase Motor |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 54.45 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 56.36 |
| Ship width (cm) | 41.91 |
| Country of Origin | MX |
