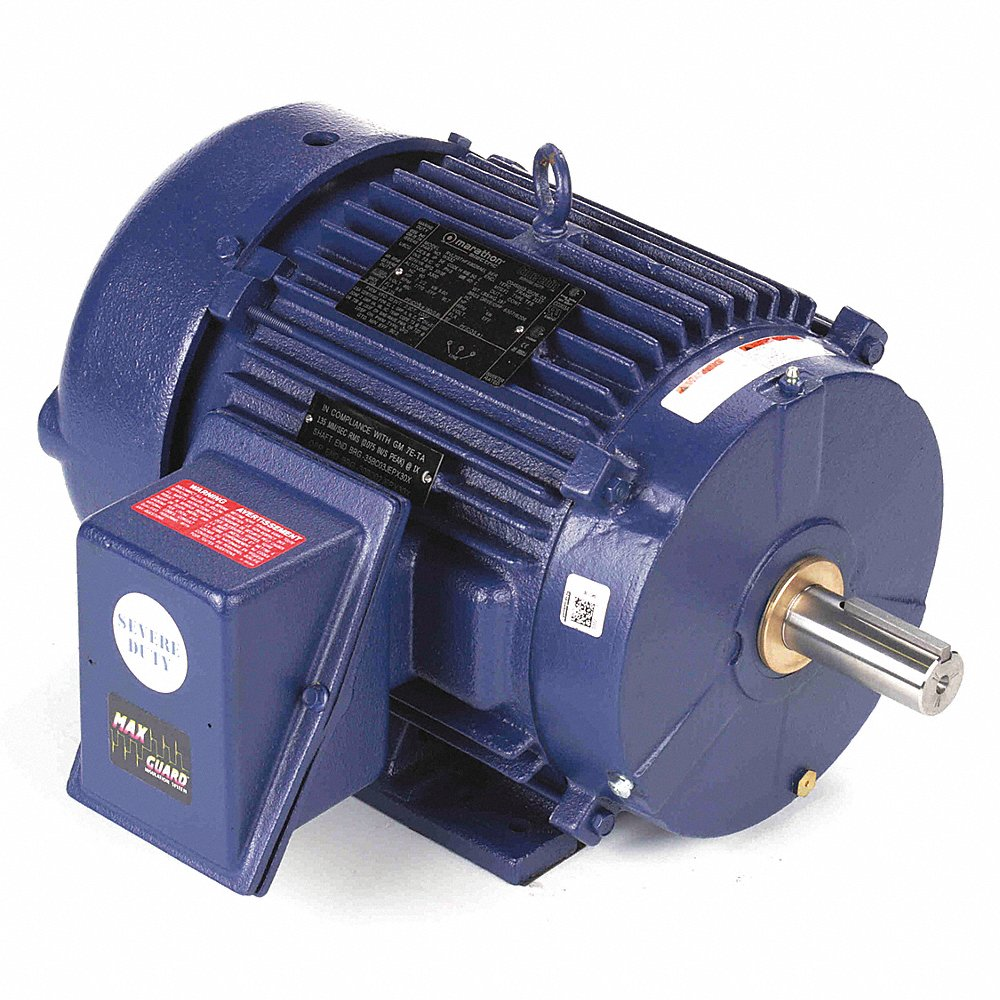

MARATHON MOTORS 213THFCD9026 W532B / 213THFCD9026BB Severe Duty Motor, 7.50 HP, 3 Phase, 60 Hz, 460 V, 1800 RPM, 213T Frame, TEFC
Get it by Tuesday, Sep 1
€2,479.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Severe Duty Motor |
| Frame | 213 t |
| Full Load Amps | 9.5A |
| Hp | 7 1/2 hp |
| Ins. Class | Class H |
| Inverter Rated | Yes |
| Length Less Shaft | 16 1/8" |
| Motor Application | IEEE Motor |
| Motor Bearings | Ball |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counterclockwise |
| Nameplate Speed | 1768 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 93.3% |
| Overall Length | 18 1/2" |
| Phase | 3 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3 1/2" |
| Voltage | 460V AC |
Shipping Info:
| Ship weight (kg) | 96.75 |
| Ship height (cm) | 41.91 |
| Ship length (cm) | 56.36 |
| Ship width (cm) | 35.56 |
| Country of Origin | MX |
