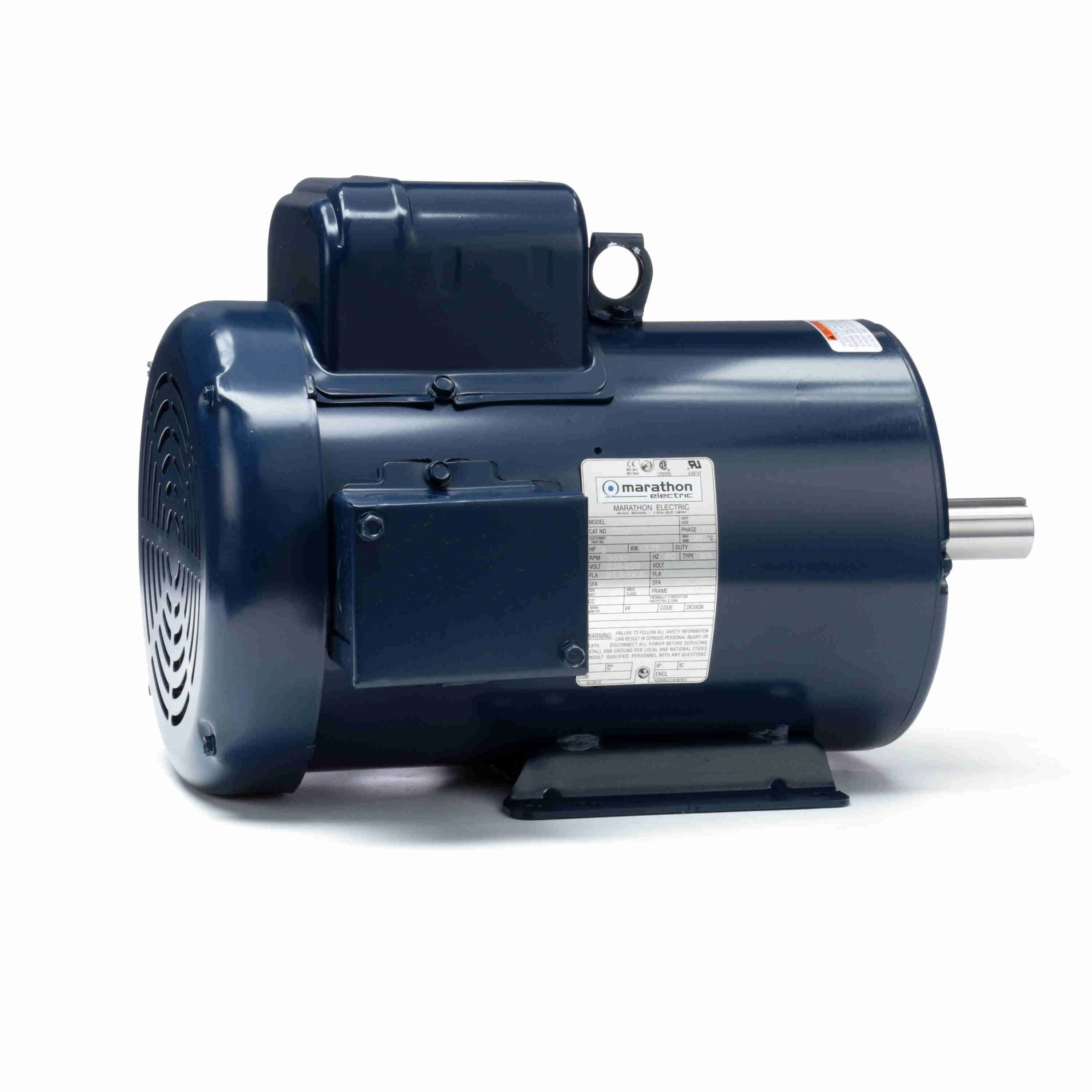

MARATHON MOTORS 184TBFW7701 I223A / 184TBFW7701AA General Purpose Motor, 5 HP, 1 Phase, 60 Hz, 208-230V, 3600 RPM
Get it by Friday, Dec 26
10.00% off
€1,525.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Efficiency | 88.5% |
| Efficiency Group | Standard |
| Frame | 184T |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 19.8-22.5A |
| Hp | 5 hp |
| Insulation Class | Class F |
| Inverter Rated | No |
| Length Less Shaft | 13 5/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3530 RPM |
| Nema Design | L |
| No. Of Speeds | 1 |
| Nominal Efficiency | 88.5% |
| Number Of Speeds | 1 |
| Overall Length | 16 7/16" |
| Phase | 1 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 13/16" |
| Standards | Csa, Ul |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
| Weight | 90 lbs. |
Shipping Info:
| Ship weight (kg) | 40.5 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Details:
- Supersedes Marathon - I223 / 184TBFR7701
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Full Load Amps | Motor Type | Service Factor | Hp | Frame | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

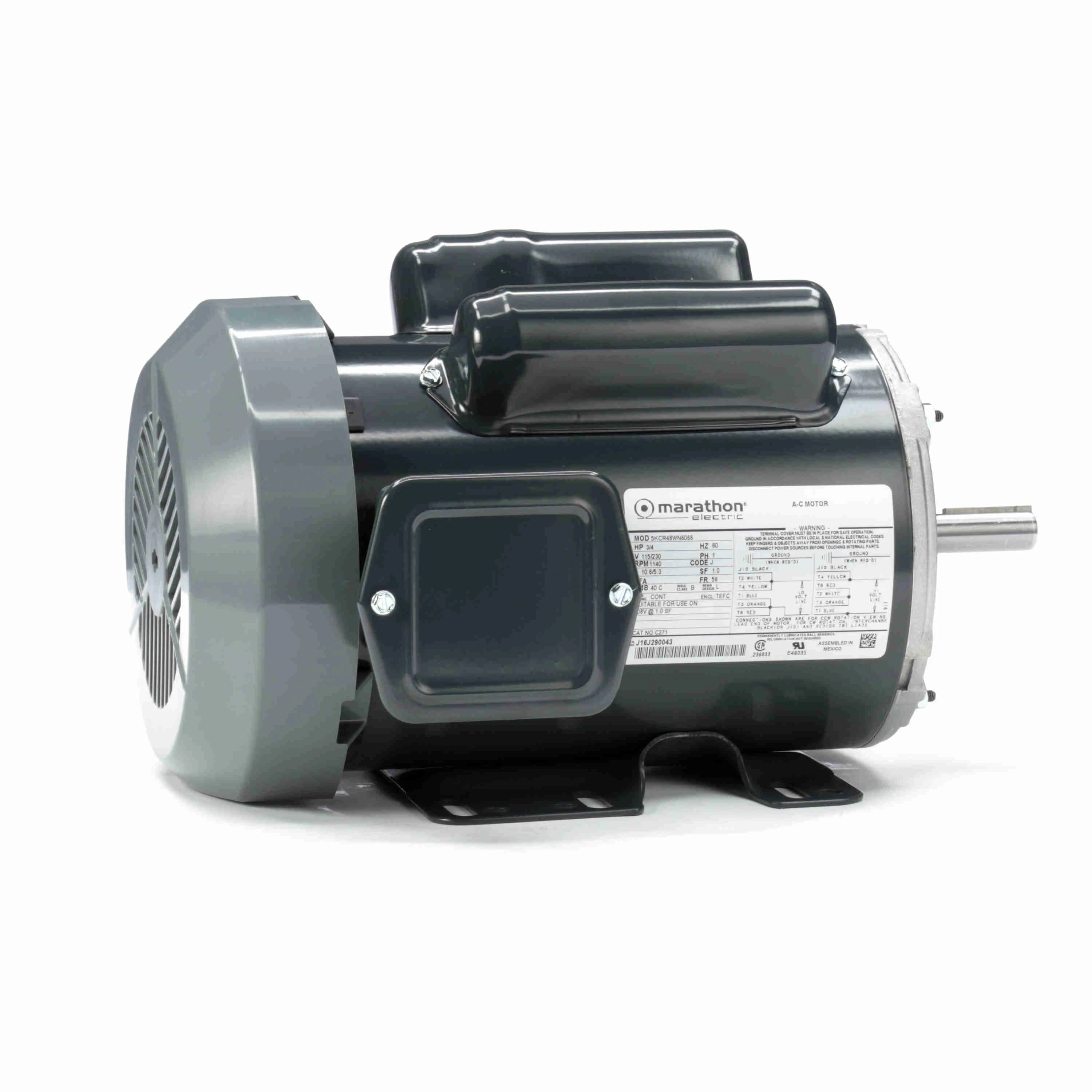

5KCR48WN6066 | 115/230V AC | 1140 RPM | 10.6/5.3A | Capacitor Start/Run | 1.0 | 3/4 hp | 56 | 40°C | €985.29 | |
 |

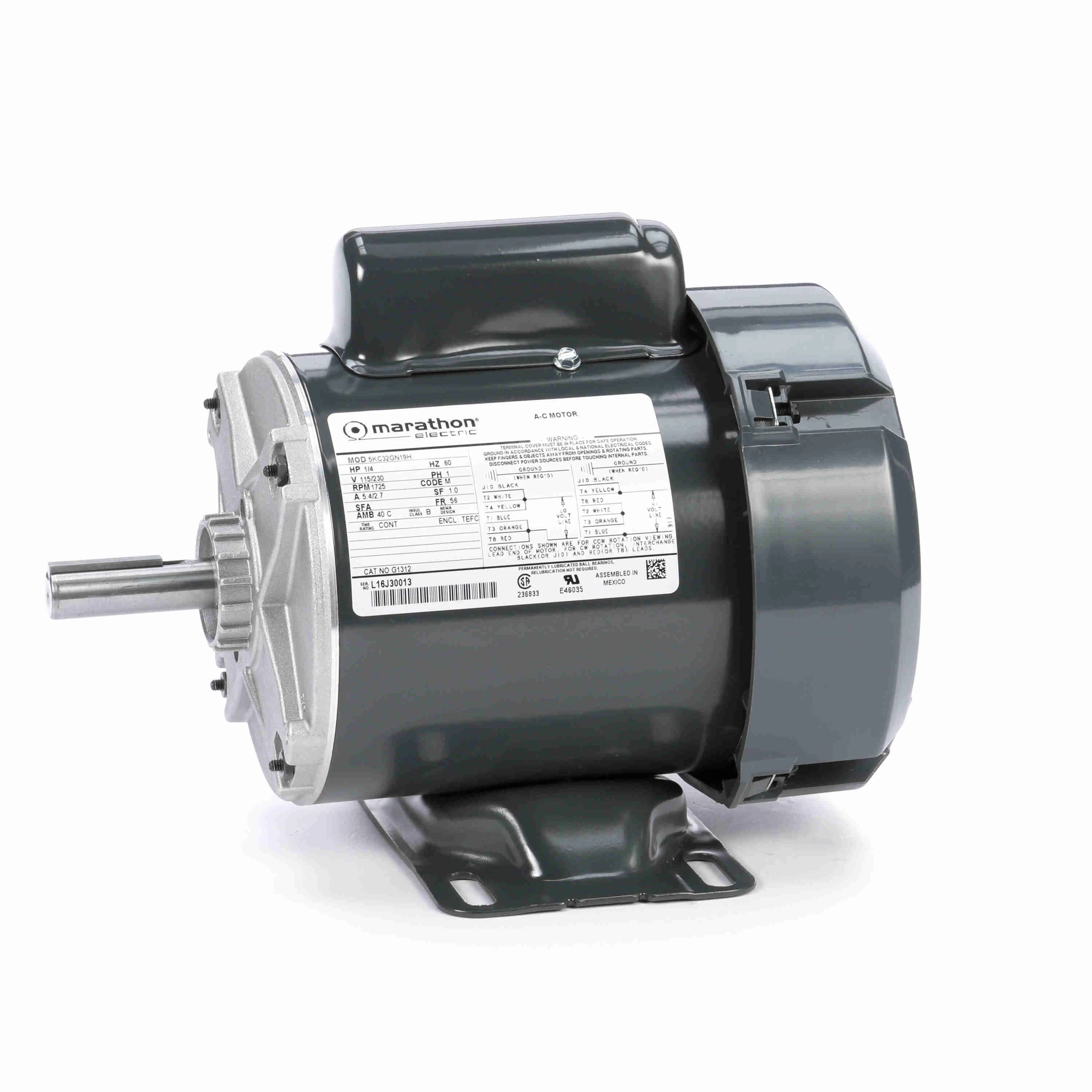

5KC32GN19 | 115/230V AC | 1725 RPM | 5.4/2.7A | Capacitor Start | 1 | 1/4 hp | 56 | 40°C | €424.93 | |
 |

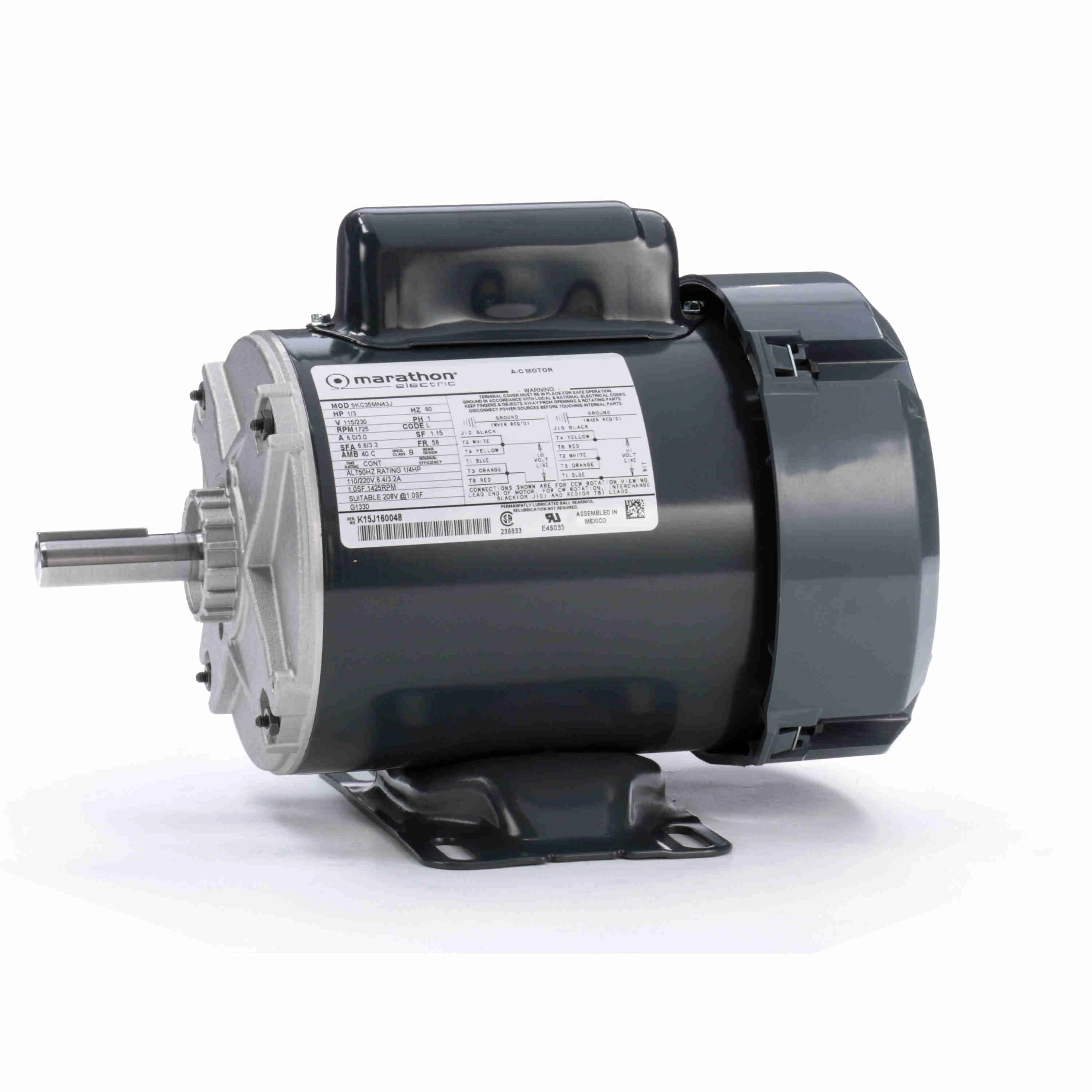

5KC35MN43 | 115/230V AC | 1725 RPM | 6/3A | Capacitor Start | 1.15 | 1/3 hp | 56 | 40°C | €477.93 | |
 |

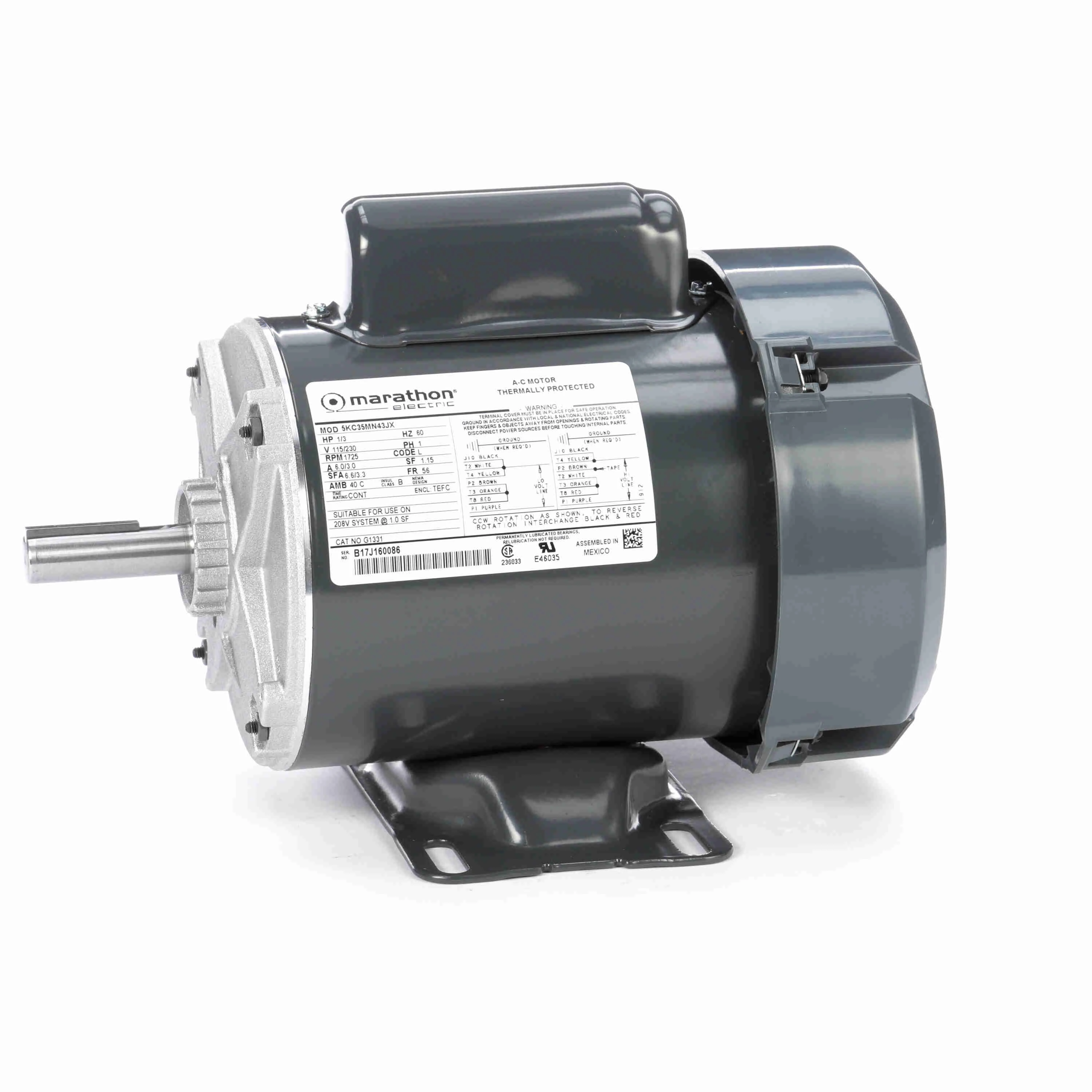

5KC35MN43X | 115/230V AC | 1725 RPM | 6/3A | Capacitor Start | 1.15 | 1/3 hp | 56 | 40°C | €443.25 | |
 |

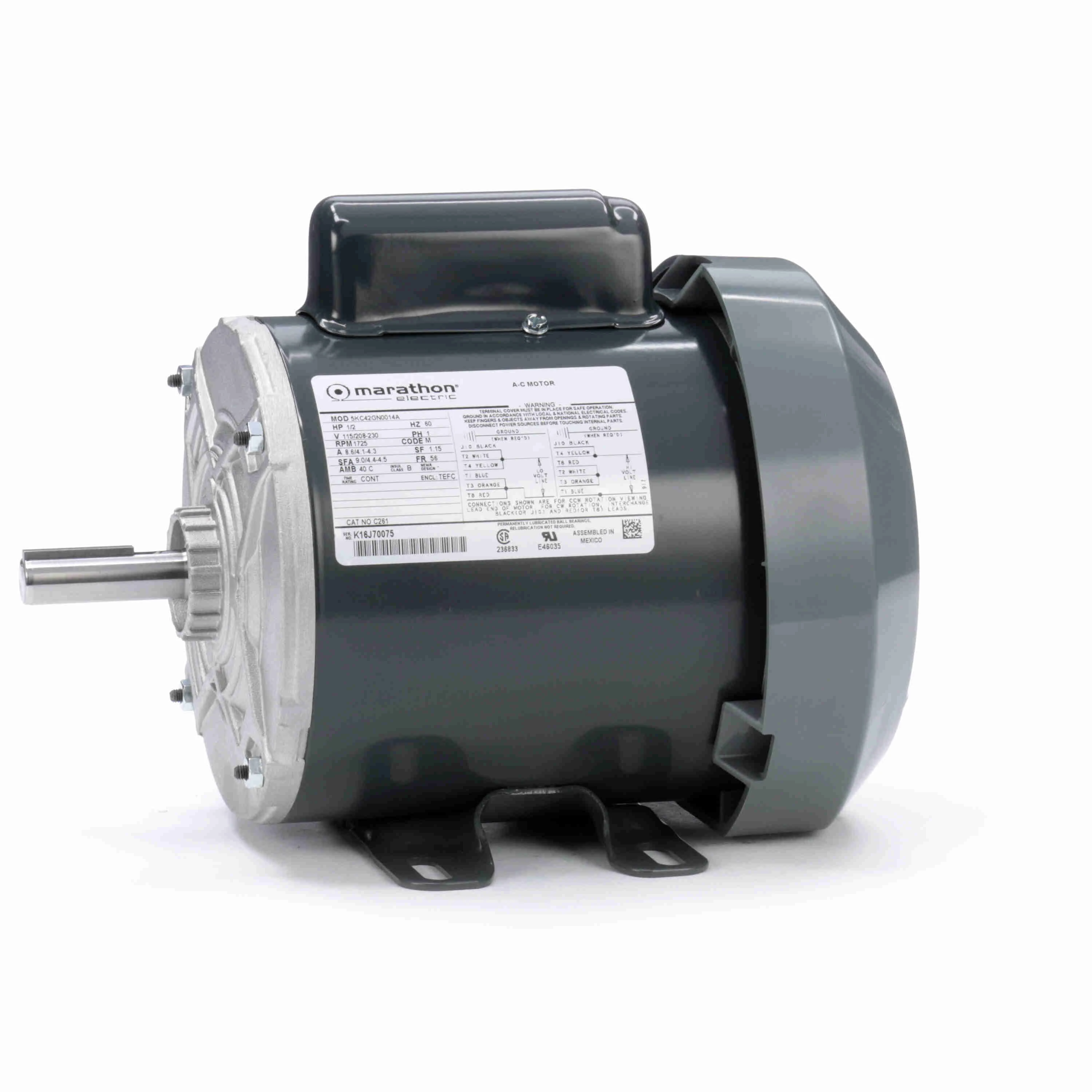

5KC42GN0014 | 115/208-230V AC | 1725 RPM | 8.6/4.1-4.3A | Capacitor Start | 1.15 | 1/2 hp | 56 | 40°C | €536.75 | |
 |

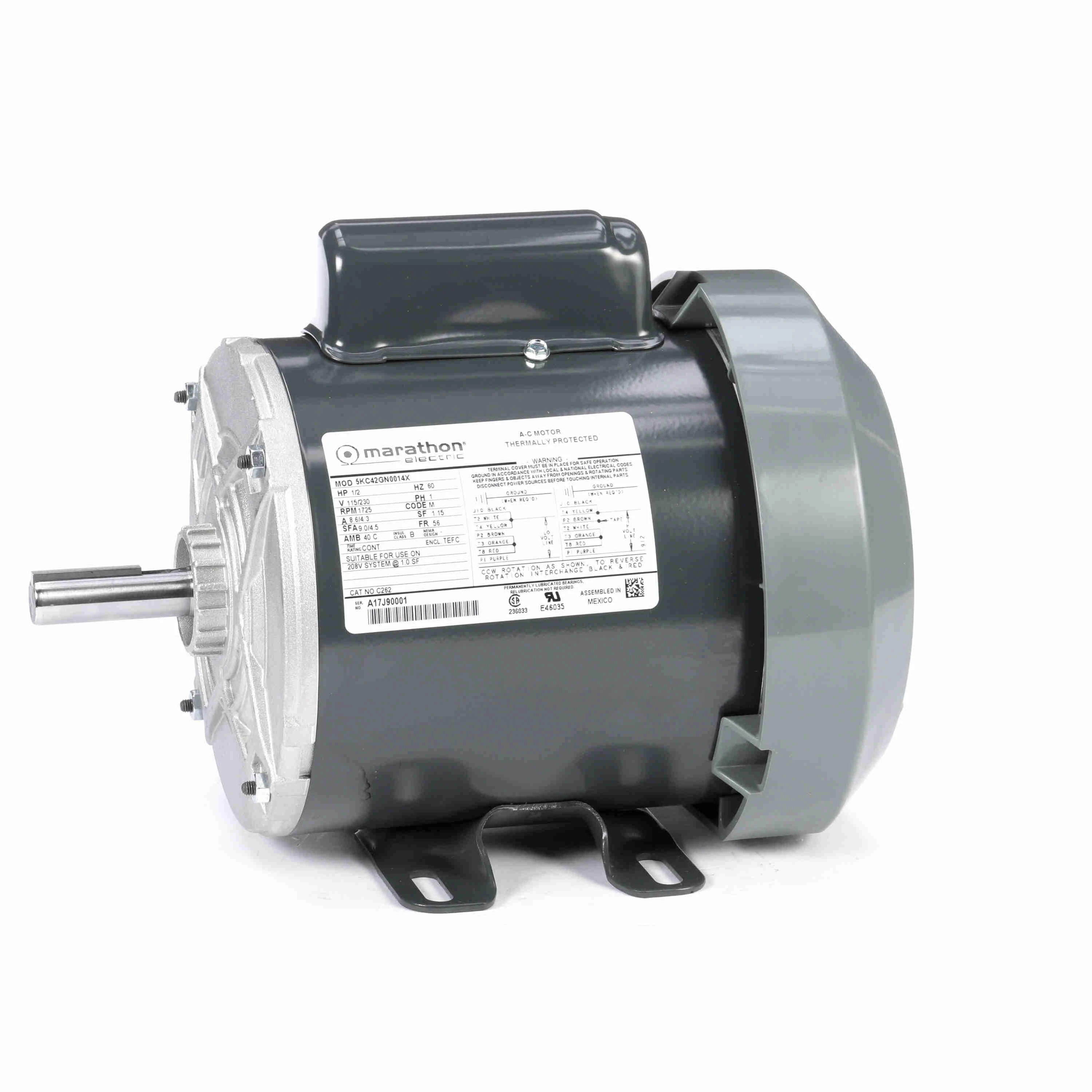

5KC42GN0014X | 115/230V AC | 1725 RPM | 8.6/4.3A | Capacitor Start | 1.15 | 1/2 hp | 56 | 40°C | €624.60 | |
 |

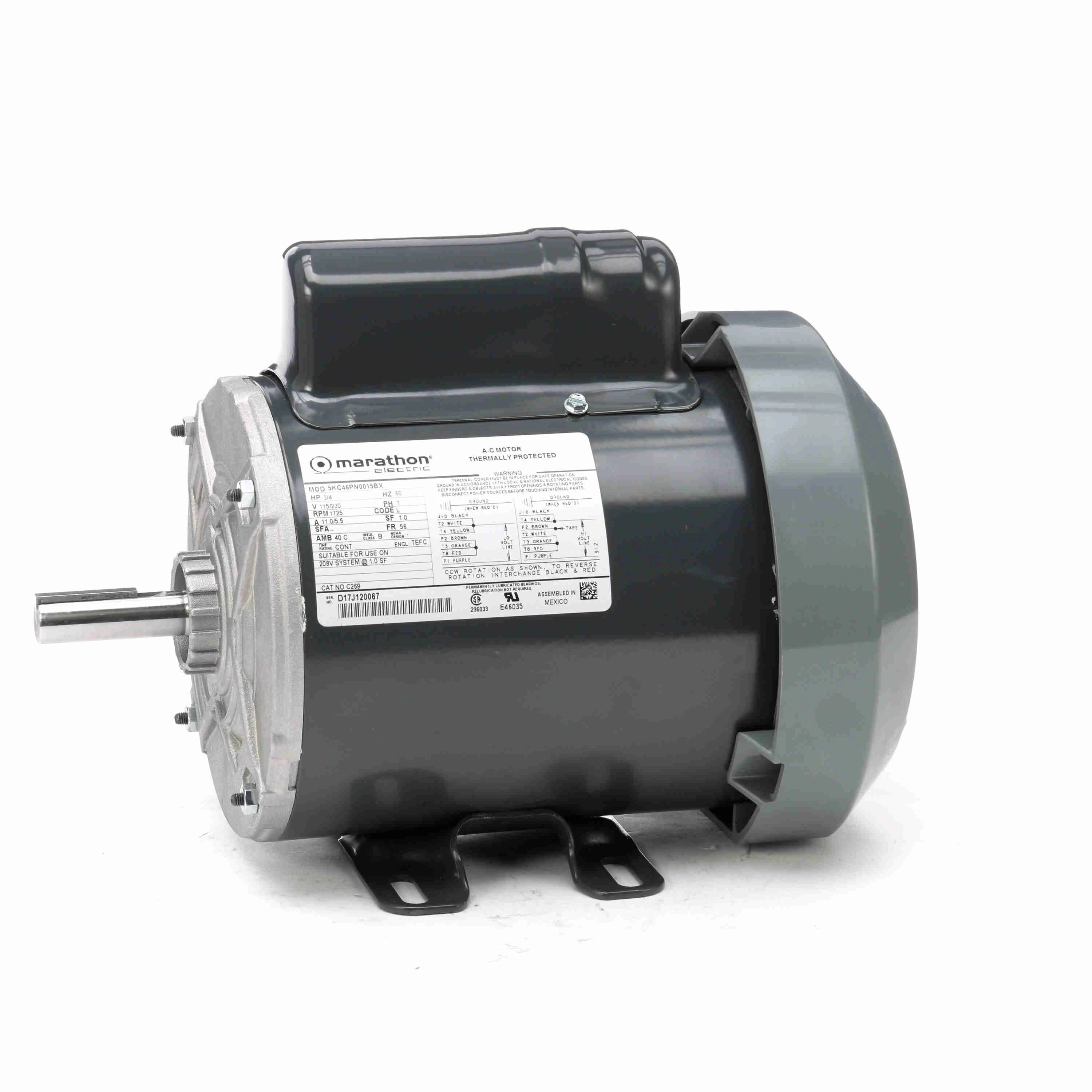

5KC46PN0015X | 115/230V AC | 1725 RPM | 11/5.5A | Capacitor Start | 1 | 3/4 hp | 56 | 40°C | €734.52 |
