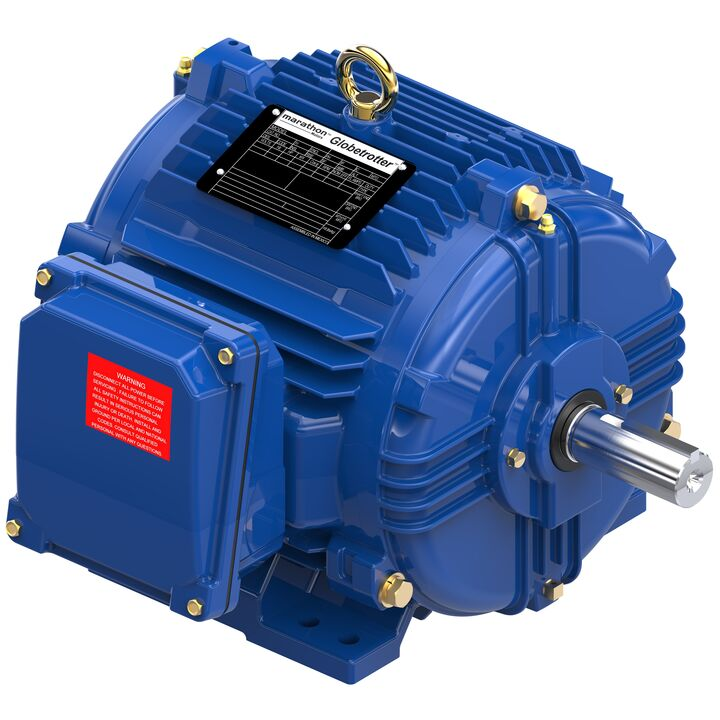

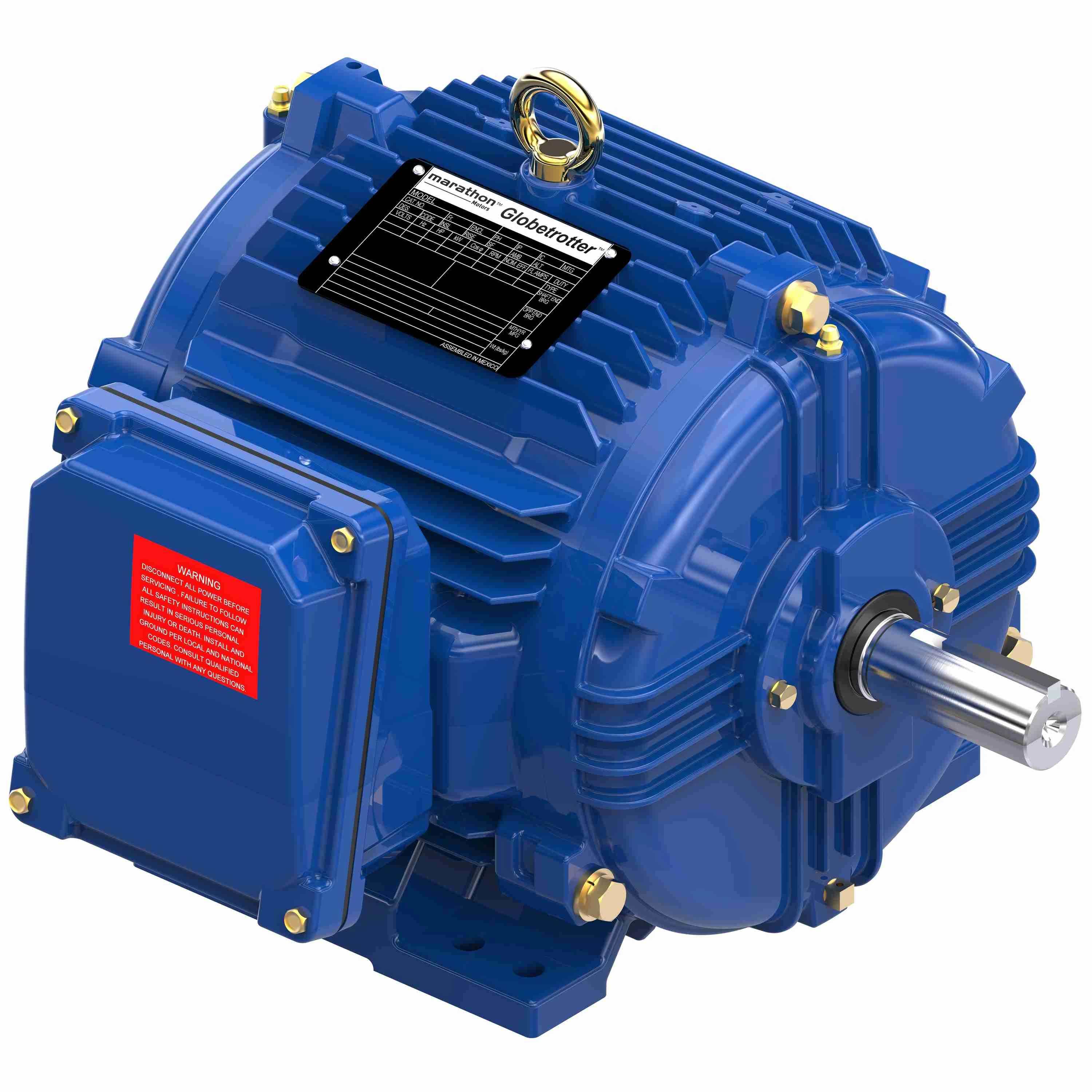

MARATHON MOTORS 182THTCD9026 W519A / 182THTCD9026AA Severe Duty Motor, 3 hp, 3 Phase, 1770 Rpm, 460VAC, 182T Frame
Get it by Monday, Dec 22
10.00% off
€1,586.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Severe Duty Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Protection | Shaft Shields |
| Bearing Type | Ball |
| Design | B |
| Duty Cycle | Continuous |
| Efficiency | 89.5% |
| Frame | 182T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 3.9A |
| Hp | 3 hp |
| Insulation Class | Class H |
| Inverter Rated | Yes |
| Length Less Shaft | 10 1/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | IEEE Motor |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise |
| Motor Shaft Rotation | CW |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1770 RPM |
| Nema Design | NEMA B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 89.5% |
| Overall Length | 12 13/16" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Weight | 109 lbs. |
Shipping Info:
| Ship weight (kg) | 49.05 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 56.39 |
| Ship width (cm) | 41.91 |
| Country of Origin | MX |
