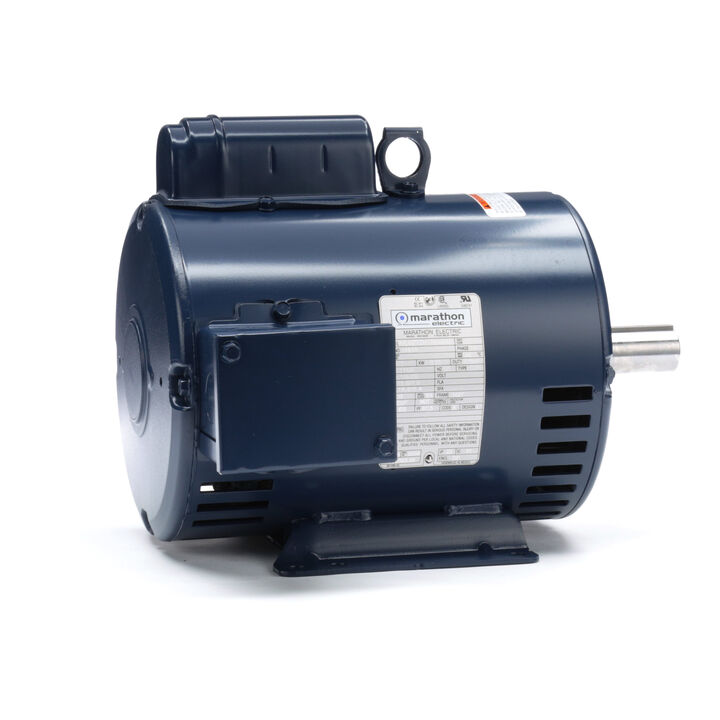

MARATHON MOTORS 182TCDW17084 182TCDW17084AA / I141A General Purpose Motor, 1 HP, 1 Phase, 60 Hz, 115/230V, 1200 RPM
Get it by Tuesday, Dec 23
10.00% off
€1,187.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 68% |
| Frame | 182T |
| Frame Material | Steel |
| Full Load Amps | 15.6/7.8A |
| Hp | 1 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 11 3/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1165 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 68% |
| Overall Length | 14 3/16" |
| Phase | Single |
| Rpm Range | 1101-1200 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 13/16" |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Weight | 83 lbs. |
Shipping Info:
| Ship weight (kg) | 37.35 |
| Ship height (cm) | 34.14 |
| Ship length (cm) | 46.51 |
| Ship width (cm) | 34.29 |
| HS code | 8501406040 |
| Country of Origin | US |
