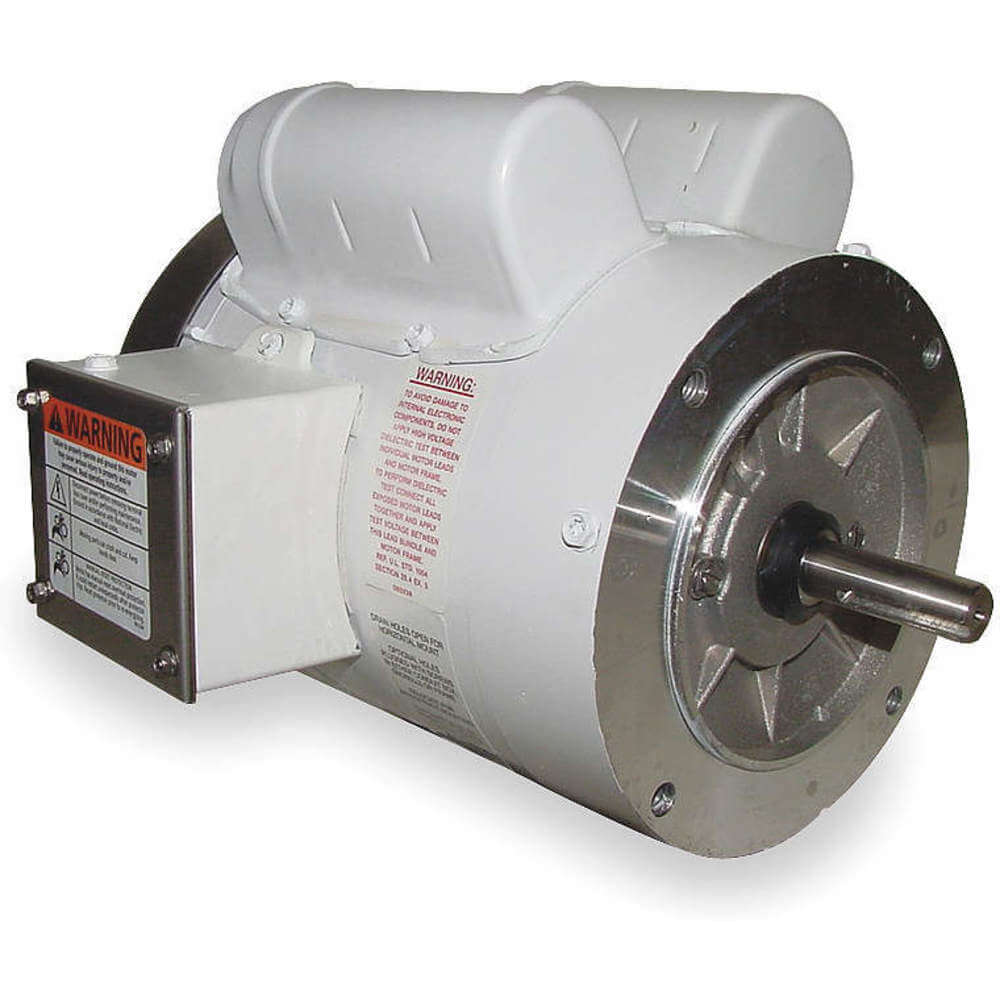

MARATHON MOTORS 056B17W15330 Washdown Motor, 2 HP, 1740 RPM
Get it by Tuesday, Dec 23
10.00% off
€1,532.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Color | White |
| Conduit Box | Cast Oversized Gasketed |
| Drain Plug | (4) Each End, (2) In Conduit Box |
| Drain Plugs | (4) Each End, (2) Conduit Box |
| Drain Plugs | (4) Each End, (2) In Conduit Box |
| Duty Cycle | Continuous |
| Endshield Finish | Aluminum , Epoxy Painted |
| Endshields | Epoxy Painted Aluminum |
| Endshields | Epoxy Painted Aluminium |
| Finish | Epoxy Coated |
| Frame | 56HC |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 20/10-10.2A |
| Hp | 2 hp |
| Insulation Class | Class F |
| Length Less Shaft | 11 3/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face, Base |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1740 RPM |
| Nema Design | N |
| No. Of Speeds | 1 |
| Nominal Efficiency | 80% |
| Overall Length | 12 1/4" |
| Phase | 1 |
| Product Type | Washdown Motor |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 22.46 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 46.48 |
| Ship width (cm) | 34.8 |
| HS code | 8501406040 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp | Nameplate Rpm | Motor Design | Frame | Motor Mounting Type | Full Load Amps | Motor Type | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056C17W15326 | 1/2 hp | 1725 RPM | Capacitor Start | 56C | Face, Base | 8.8/4.4A | Capacitor Start | 11 3/16" | €1,009.23 | |
|
056C17W15328 | 1 hp | 1725 RPM | Capacitor Start | 56HC | Face, Base | 12.8/6.4A | Capacitor Start | 12 3/16" | €1,132.83 | |
 |
056C17W15333 | 1 hp | 1725 RPM | Capacitor Start | 56C | Face | 12.8/6.4-6.6A | Capacitor Start | 10 1/4" | €1,245.39 |
