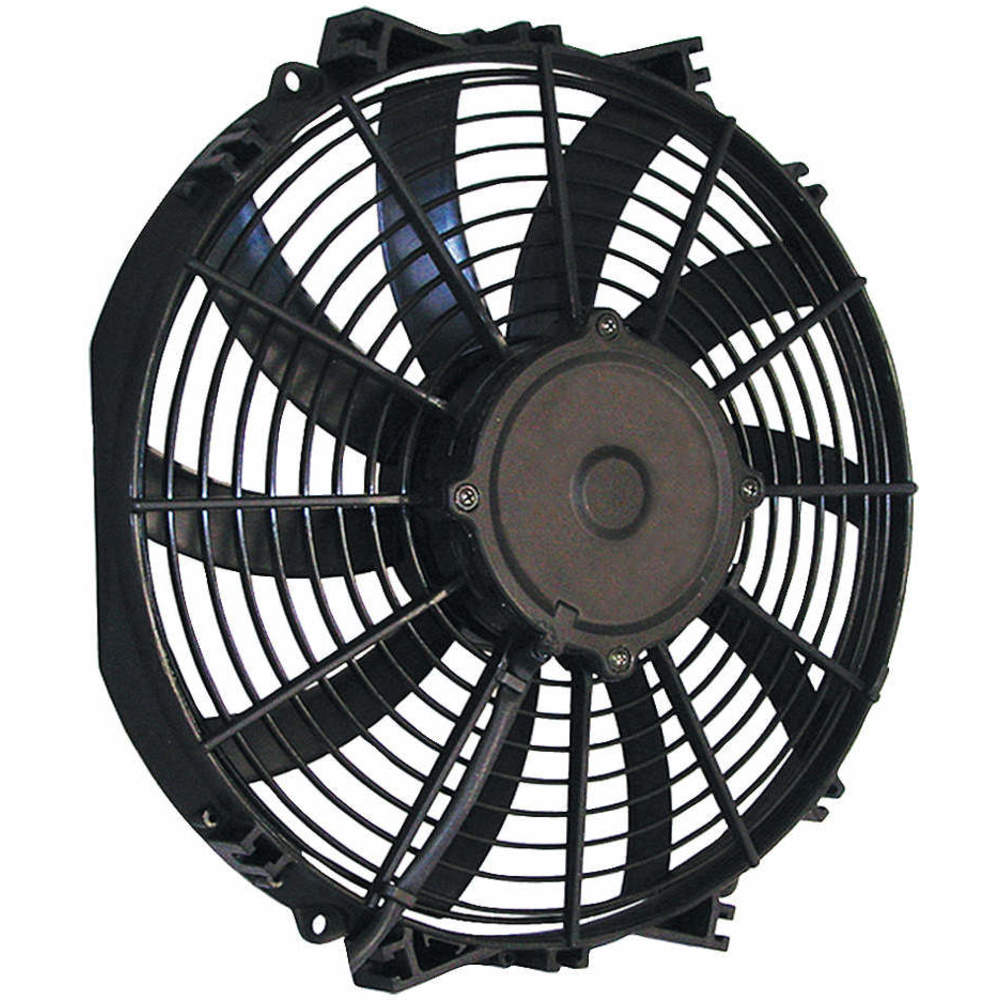

MARADYNE M122K Cooling Fan Reversible 12 In Diameter 12vdc
Item: AG2YQEModel: M122KCross Ref: 32PF41
7 In Stock
Ships within 2 days via
10.00% off
€228.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cooling Fan |
| Airflow @ 0.000 In Sp | 1548 CFM |
| Blade Diameter | 12" |
| Cfm @ 0.000-in. Sp | 1595 CFM |
| Cfm @ 0.125-in. Sp | 1565 CFM |
| Cfm @ 0.250-in. Sp | 1453 CFM |
| Cfm @ 0.375-in. Sp | 1342 CFM |
| Cfm @ 0.500-in. Sp | 1235 CFM |
| Color | Black |
| Frame Finish | Black |
| Full Load Amps | 18A |
| Full Load Current | 13.3A |
| Height | 13.234" |
| Housing Material | Glass Filled Nylon |
| Includes | (4) 90° Mounting Feet, Nylon Tie Kit, Pigtail Connector, Rubber Spacers |
| Max. Depth | 3.188" |
| Motor Enclosure | Totally Enclosed |
| Motor Hp | 1/4 hp |
| Motor Type | DC |
| Mounting Position | Horizontal/Vertical |
| Number Of Blades | 10 |
| Overall Depth | 3 1/4" |
| Overall Diameter | 13 1/4" |
| Propeller Dia. | 12" |
| Propeller Material | Glass Filled Nylon |
| Type | Reversable |
| Voltage | 12V DC |
| Wattage | 225 W |
| Width | 568924" |
Shipping Info:
| Ship weight (kg) | 2.88 |
| Ship height (cm) | 9.4 |
| Ship length (cm) | 42.93 |
| Ship width (cm) | 36.32 |
| HS code | 8414596040 |
| Country of Origin | TR |
Product Variants
| Model | Height | Cfm @ 0.000-in. Sp | Cfm @ 0.250-in. Sp | Mounting Position | Type | Wattage | Cfm @ 0.375-in. Sp | Cfm @ 0.500-in. Sp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| M103K | 11 1/2" | 950 CFM | 800 CFM | Vertical | High Performance | 130 W | 700 CFM | 468 CFM | €258.59 | |
| M123K | 13 1/4" | 1155 CFM | 700 CFM | Vertical | High Performance | 130 W | 500 CFM | 255 CFM | €296.28 | |
| M146K | 15" | 1555 CFM | 1200 CFM | Vertical | High Performance | 160 W | 800 CFM | 339 CFM | €333.93 | |
| M166K | 16 3/8" | 1810 CFM | 1300 CFM | Vertical | High Performance | 160 W | 700 CFM | 556 CFM | €296.07 | |
| M162K | 16 3/8" | - | 1800 CFM | Vertical | High Performance | 225 W | 1500 CFM | 1208 CFM | €326.36 |
