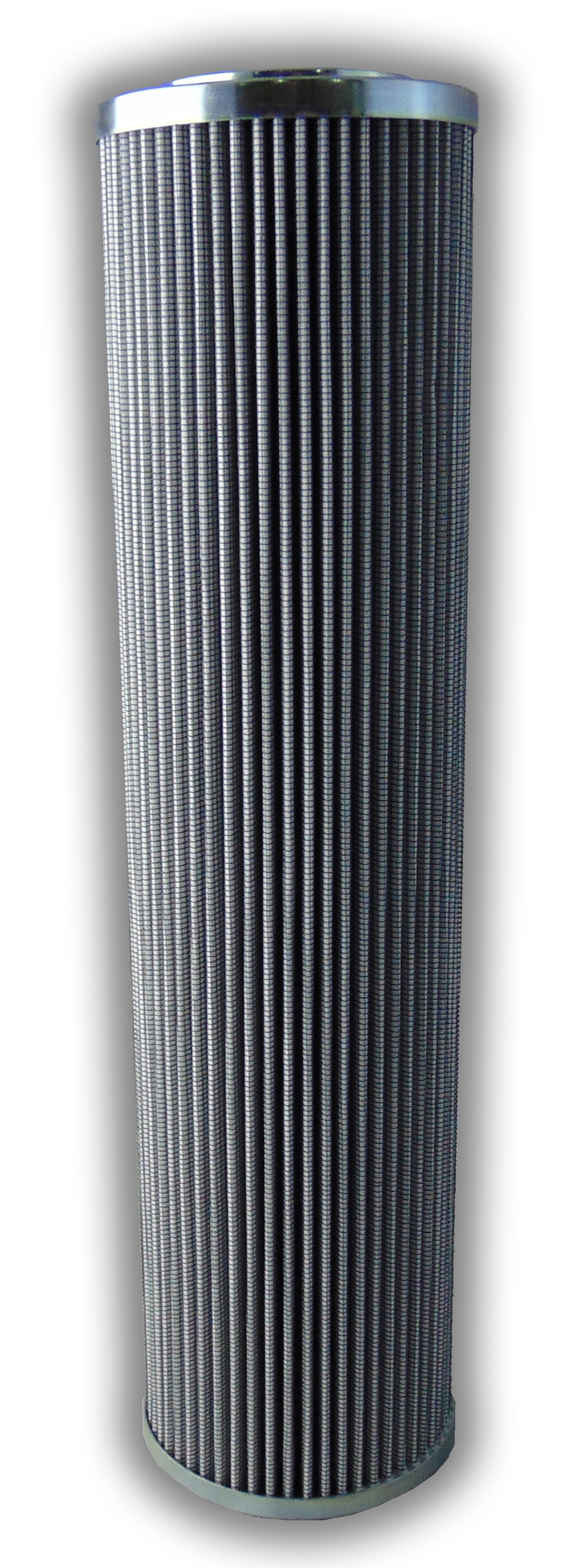

MAIN FILTER INC. MF0616583 HP70NL1525MB Interchange Hydraulic Filter, Glass, 25 Micron, Viton Seal, 14.8 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom O.d. | 3.66" |
| Cracking Pressure | 145 psi |
| Filter Media | Glass |
| Filter Rating | 25 µm |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Viton |
| Height | 14.8 mm |
| Max. Operating Temp. | 248°F |
| Max. Operating Temp. | 248 Deg. F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top O.d. | 3.66" |
Product Details:
- Repalcement HY-PRO HP70NL1525MB
Product Variants
| Product | Model | Top O.d. | Top I.d. | Cracking Pressure | Max. Operating Temp. | Height | Filter Rating | Bottom O.d. | Seal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0006890 | 4 24/25" | 3.31" | 145 psi | 248°F | 18.31" | 25 µm | 4 24/25" | Cork | - | RFQ
|
 |
MF0007146 | 3 13/25" | 1 3/5" | 145 psi | 248°F | 13.11" | 25 µm | 3 13/25" | Buna N | - | RFQ
|
 |
MF0012390 | 3.21" | 1.57" | - | - | 4.21" | 25 µm | 3.21" | Viton | - | RFQ
|
 |
MF0024127 | 6" | 3.41" | 75 psi | 225°F | - | 25 µm | 6" | Buna N | - | RFQ
|
 |
MF0026318 | 2.31" | 1.11" | 145 psi | 248°F | 9.13" | 25 µm | 2.31" | Buna N | - | RFQ
|
|
MF0028919 | 3 13/25" | 1 3/5" | 145 psi | 248°F | 13.11" | 25 µm | 3 13/25" | Buna N | - | RFQ
|
 |
MF0029438 | 3.94" | 2.53" | 145 psi | 248°F | 18.27" | 25 µm | 3.94" | Buna N | - | RFQ
|
