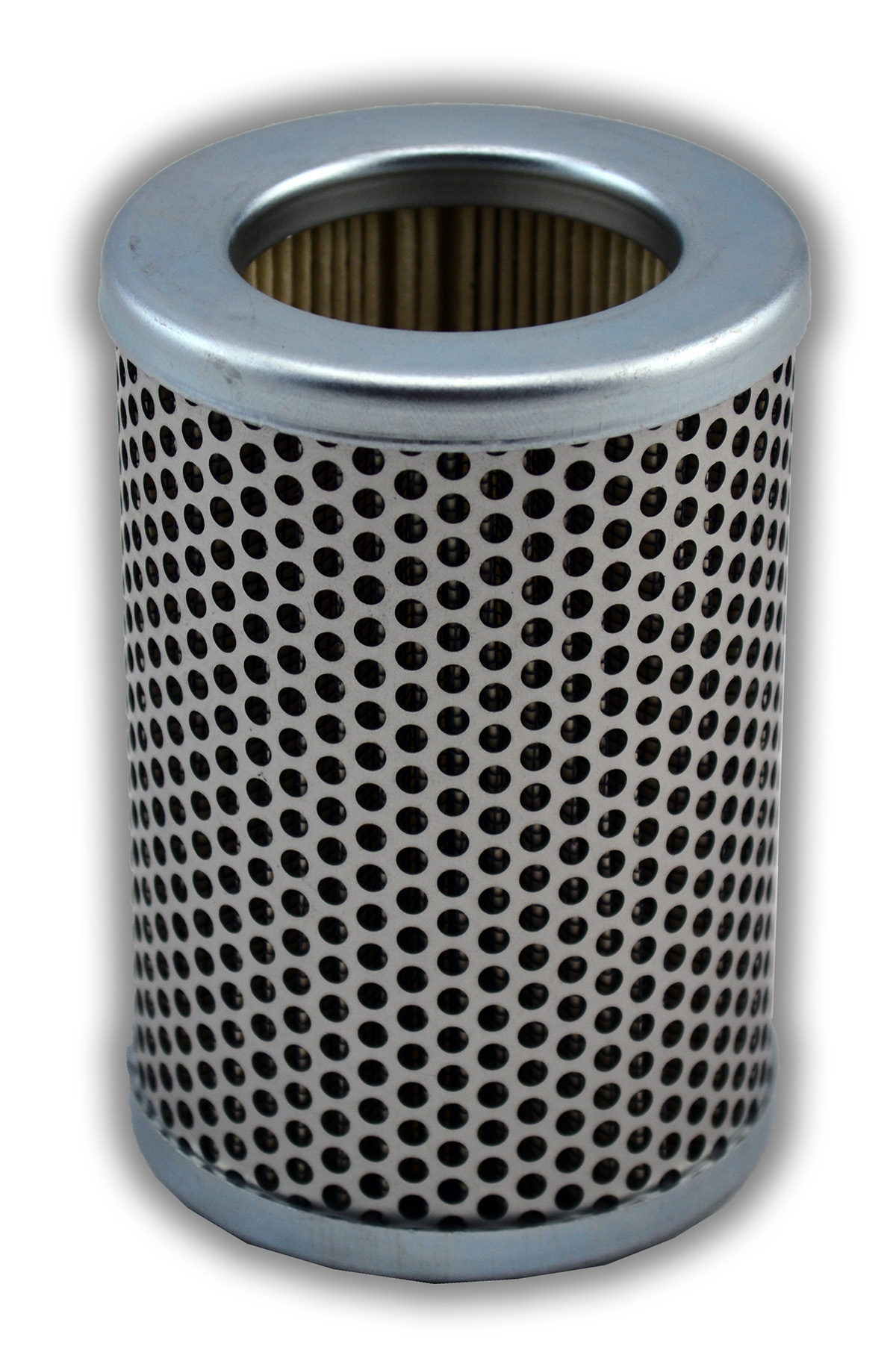

MAIN FILTER INC. MF0600633 R03D25C Hydraulic Filter, Cellulose, 25 Micron Rating, Buna Seal, 4.13 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom Inside Dia. | 0.331" |
| Bottom Outside Dia. | 2.835" |
| Capacity | 6.99g |
| Collapse Pressure | 145 psi |
| Cracking Pressure | 145 psi |
| Filter Media | Cellulose |
| Filter Rating | 25 µm |
| Filter Size | 175 sq. in. |
| Flow Direction | Inside Out |
| Flow Type | Inside Out |
| Fluid Type | HL, HM, HV, HH |
| Gasket Material | Buna N |
| Height | 4.13" |
| Max. Operating Temp. | 248 Deg. F |
| Max. Operating Temp. | 248°F |
| Min. Operating Temp. | -13°F |
| Seal Type | Buna N |
| Top Inside Dia. | 1.772" |
| Top Outside Dia. | 2.835" |
Product Details:
- Repalcement WIX R03D25C
Product Variants
| Product | Model | Filter Media | Cracking Pressure | Height | Flow Direction | Filter Size | Capacity | Collapse Pressure | Fluid Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0065826 | Cellulose | 73 psi | 9.29" | Inside Out | - | - | 73 psi | HL, HM, HV, HH | - | RFQ
|
 |
MF0065830 | Cellulose, Water Removal | 73 psi | 9.29" | Inside Out | - | - | 73 psi | HL, HM, HV, HH | - | RFQ
|
 |
MF0065860 | Cellulose | 73 psi | 18 1/2" | Inside Out | 1143 sq. in. | - | 73 psi | HL, HM, HV, HH | - | RFQ
|
 |
MF0065862 | Cellulose, Water Removal | - | 18 1/2" | - | - | - | - | - | - | RFQ
|
 |
MF0301835 | Cellulose | 145 psi | 10.74" | Outside In | 1091 sq. in. | 49.1g | 145 psi | HL, HM, HV, HH | - | RFQ
|
 |
MF0305606 | Cellulose | 116 psi | 6.49" | Outside In | - | - | 116 psi | HL, HM, HV, HH | - | RFQ
|
 |
MF0305629 | Cellulose | 145 psi | 18.7" | Inside Out | 1333 sq. in. | 59.99g | 145 psi | HL, HM, HV, HH | - | RFQ
|
