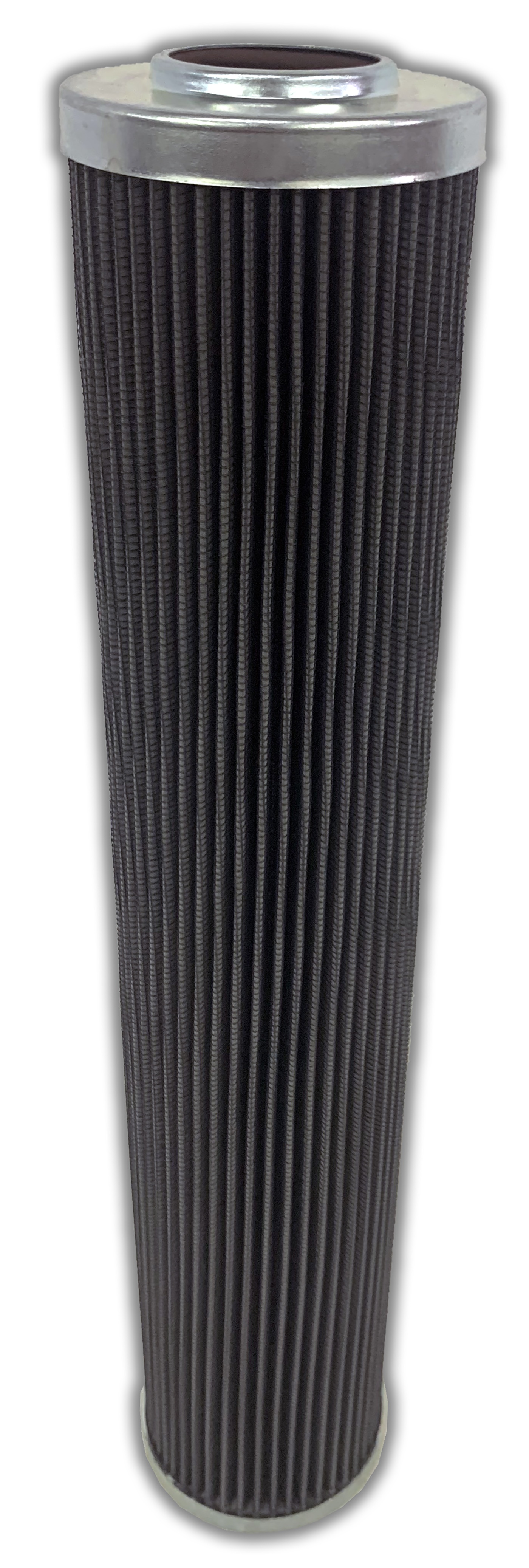

MAIN FILTER INC. MF0597877 D39B25SV Hydraulic Filter, Wire Mesh, 25 Micron, Viton Seal, 13.97 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom O.d. | 2.717" |
| Cracking Pressure | 435 psi |
| Filter Media | Wire Mesh |
| Filter Rating | 25 µm |
| Filter Size | 670 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Viton |
| Max. Operating Temp. | 248 Deg. F |
| Max. Operating Temp. | 248°F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top I.d. | 1.347" |
| Top O.d. | 2.717" |
Product Details:
- Repalcement WIX D39B25SV
Product Variants
| Product | Model | Top O.d. | Top I.d. | Cracking Pressure | Height | Bottom O.d. | Filter Size | Collapse Pressure | Bottom I.d. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

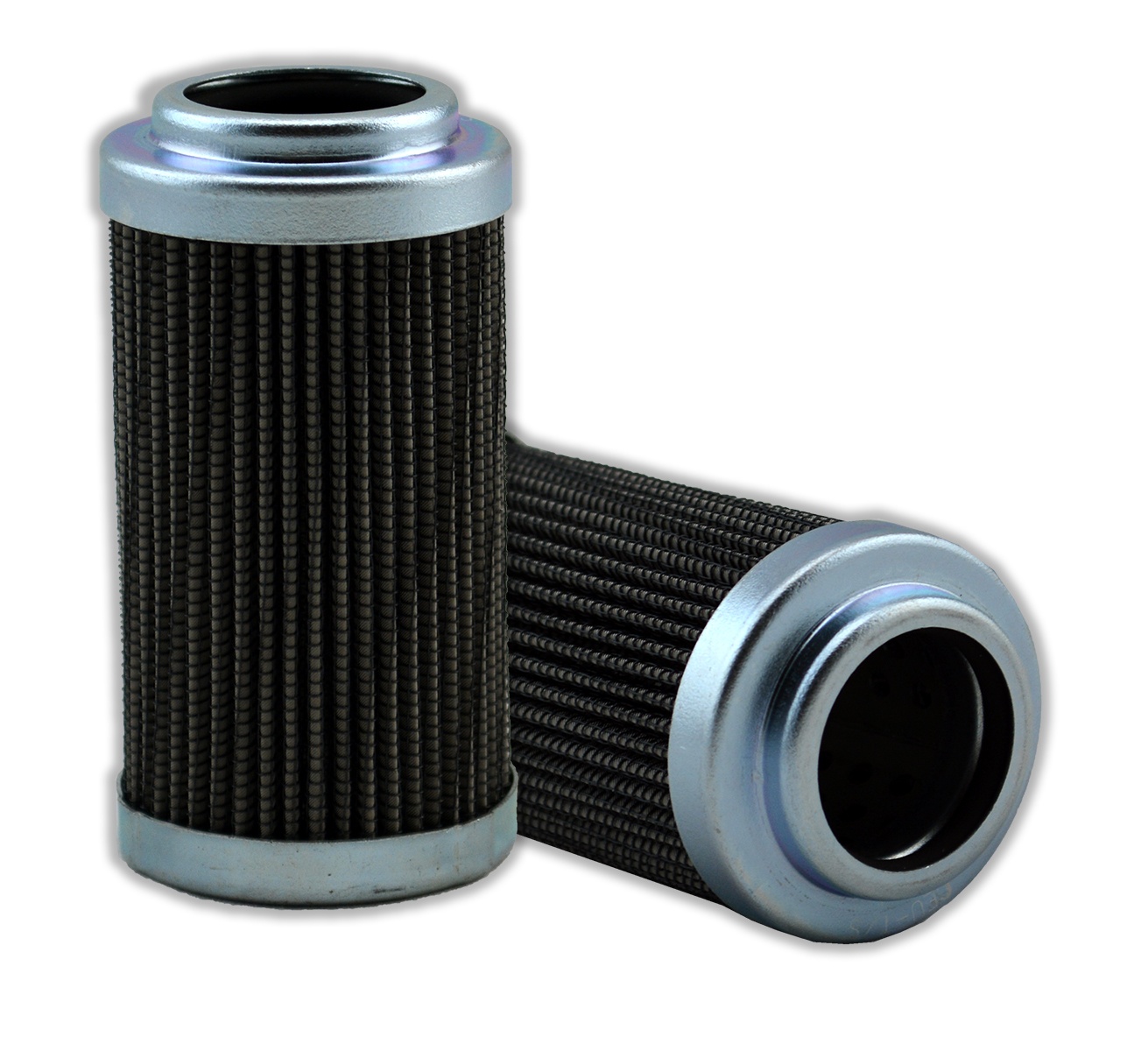

MF0058371 | 1.772" | 1" | 305 psi | 3.38" | 1.772" | 61 sq. in. | - | - | - | RFQ
|
 |

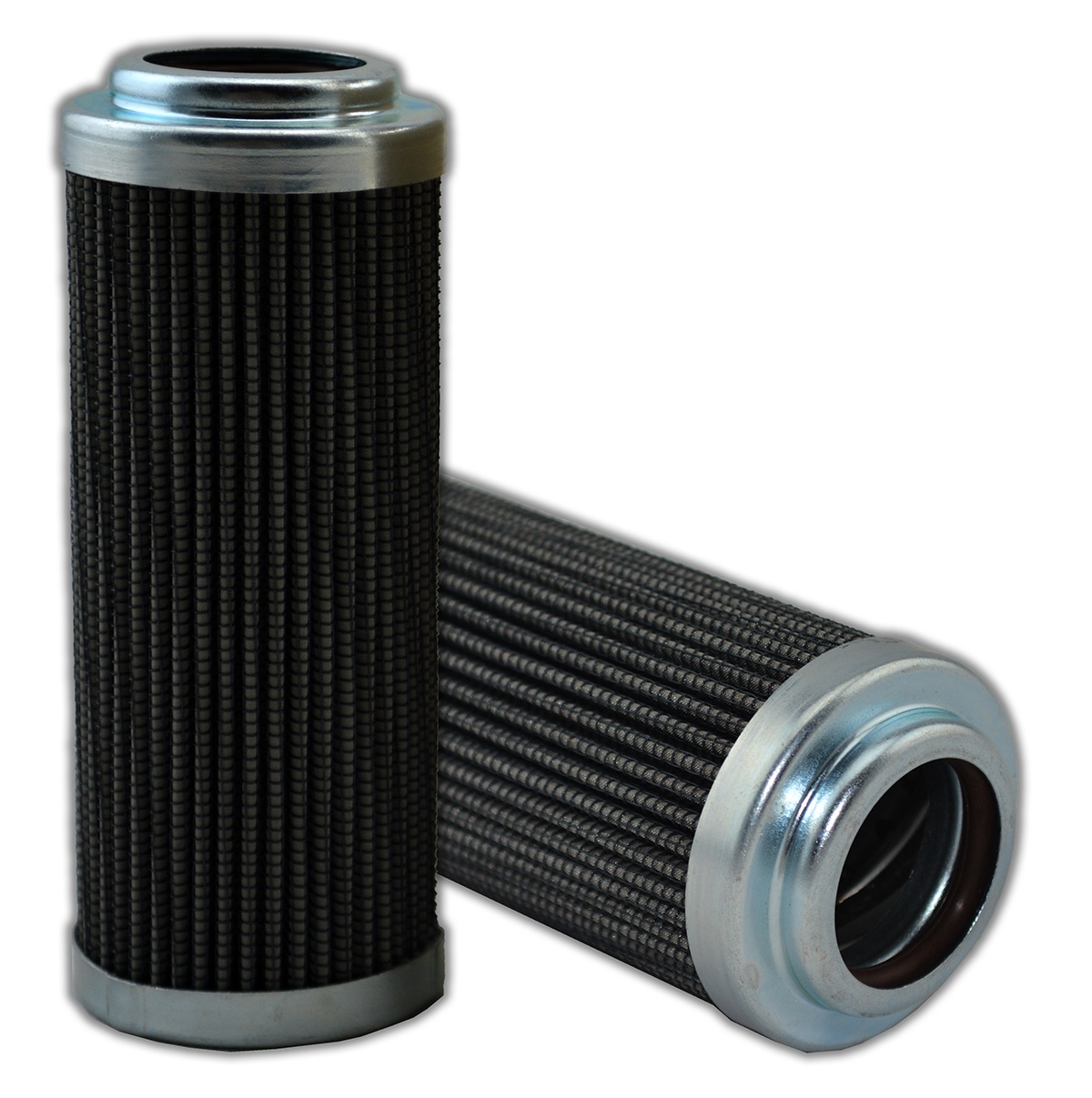

MF0058411 | 1.772" | 1.004" | 305 psi | 4 11/25" | 1.772" | 81 sq. in. | 305 psi | - | - | RFQ
|
 |

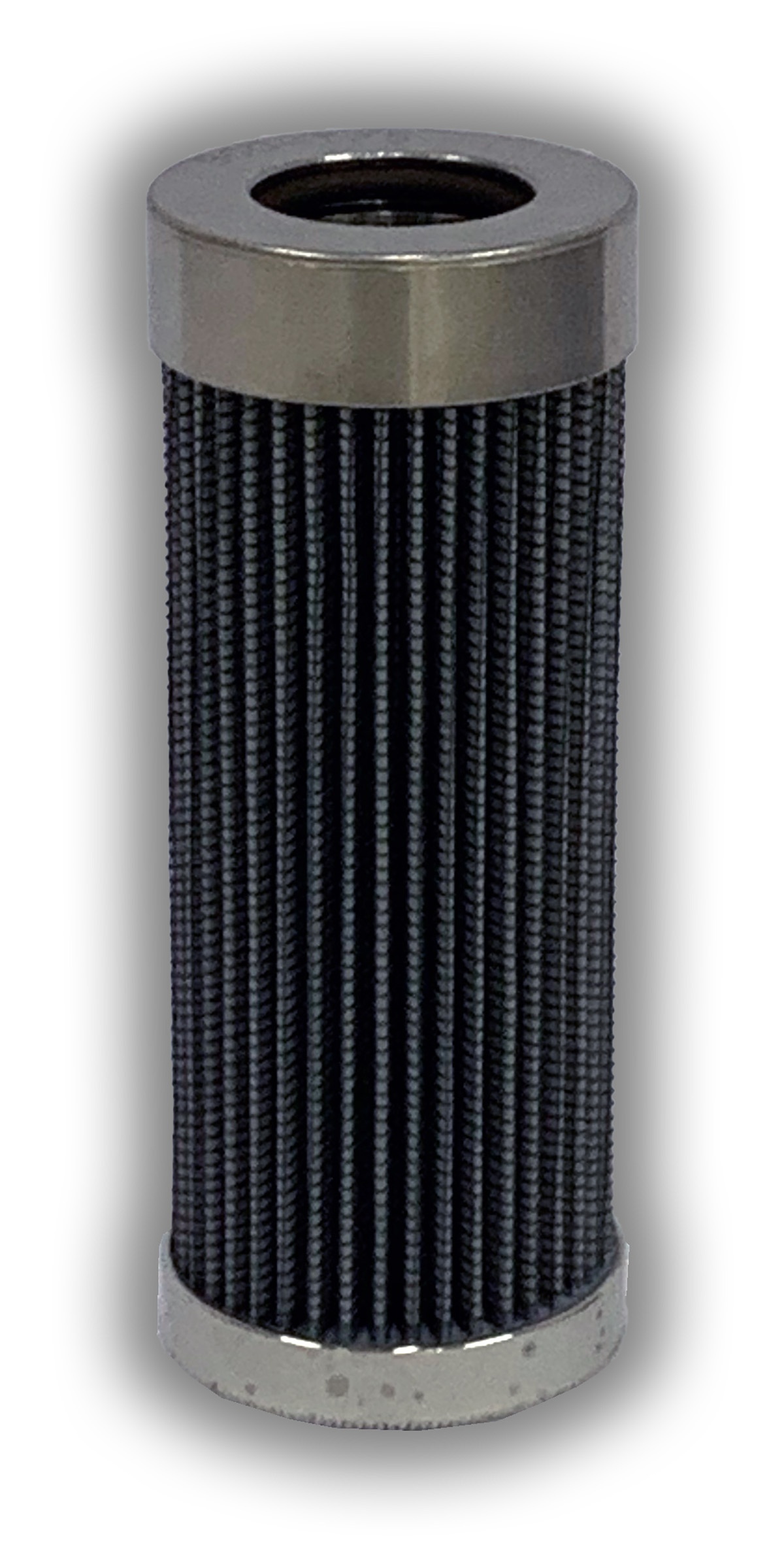

MF0058413 | 1.772" | 1" | - | 4 12/25" | 1.772" | - | - | - | - | RFQ
|
 |

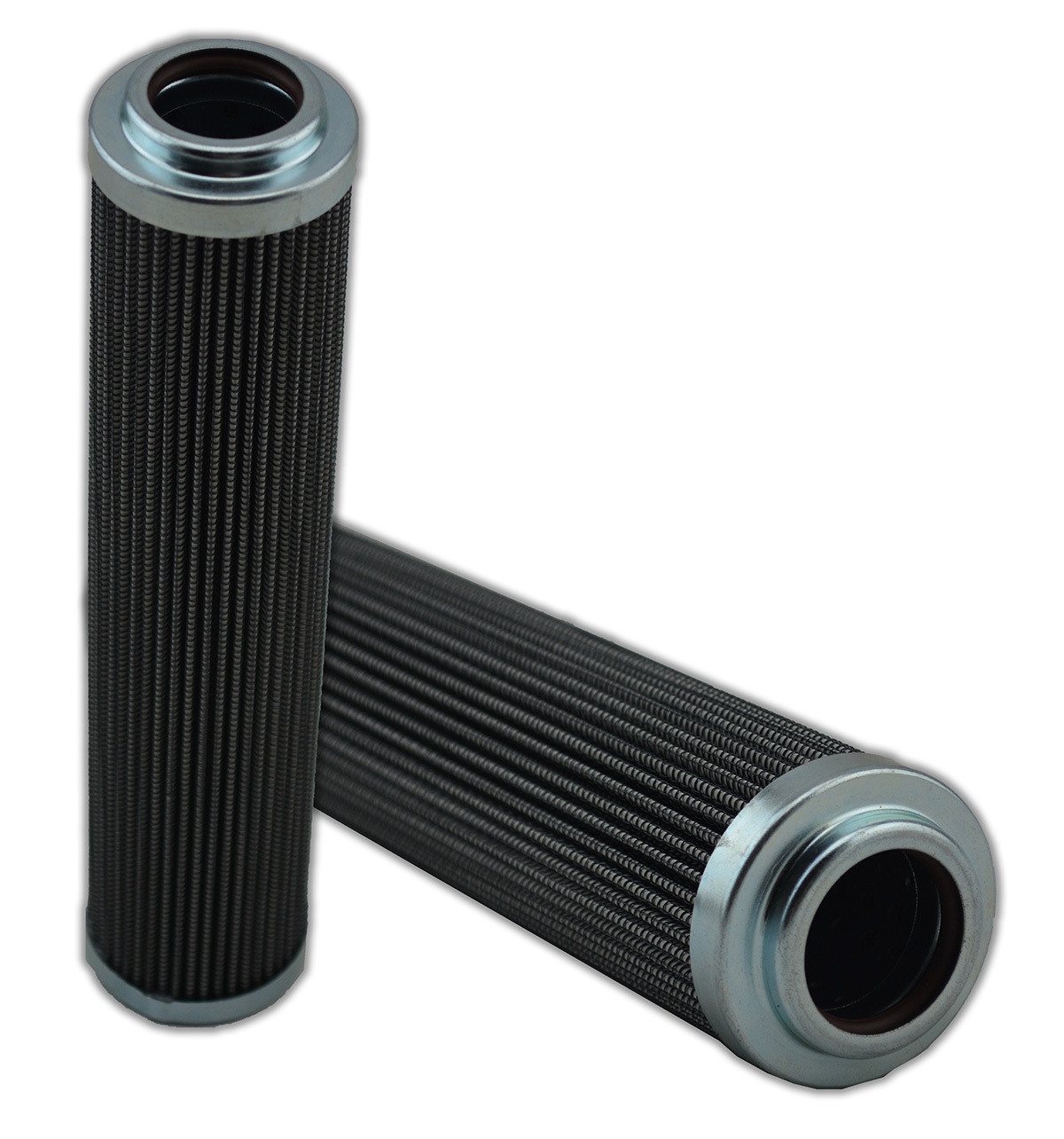

MF0058453 | 1.772" | 1.004" | 305 psi | 8.22" | 1.772" | 155 sq. in. | 305 psi | - | - | RFQ
|
 |
MF0058455 | 1.772" | 1" | 3045 psi | - | 1.772" | 147 sq. in. | 3045 psi | - | - | RFQ
|
 |

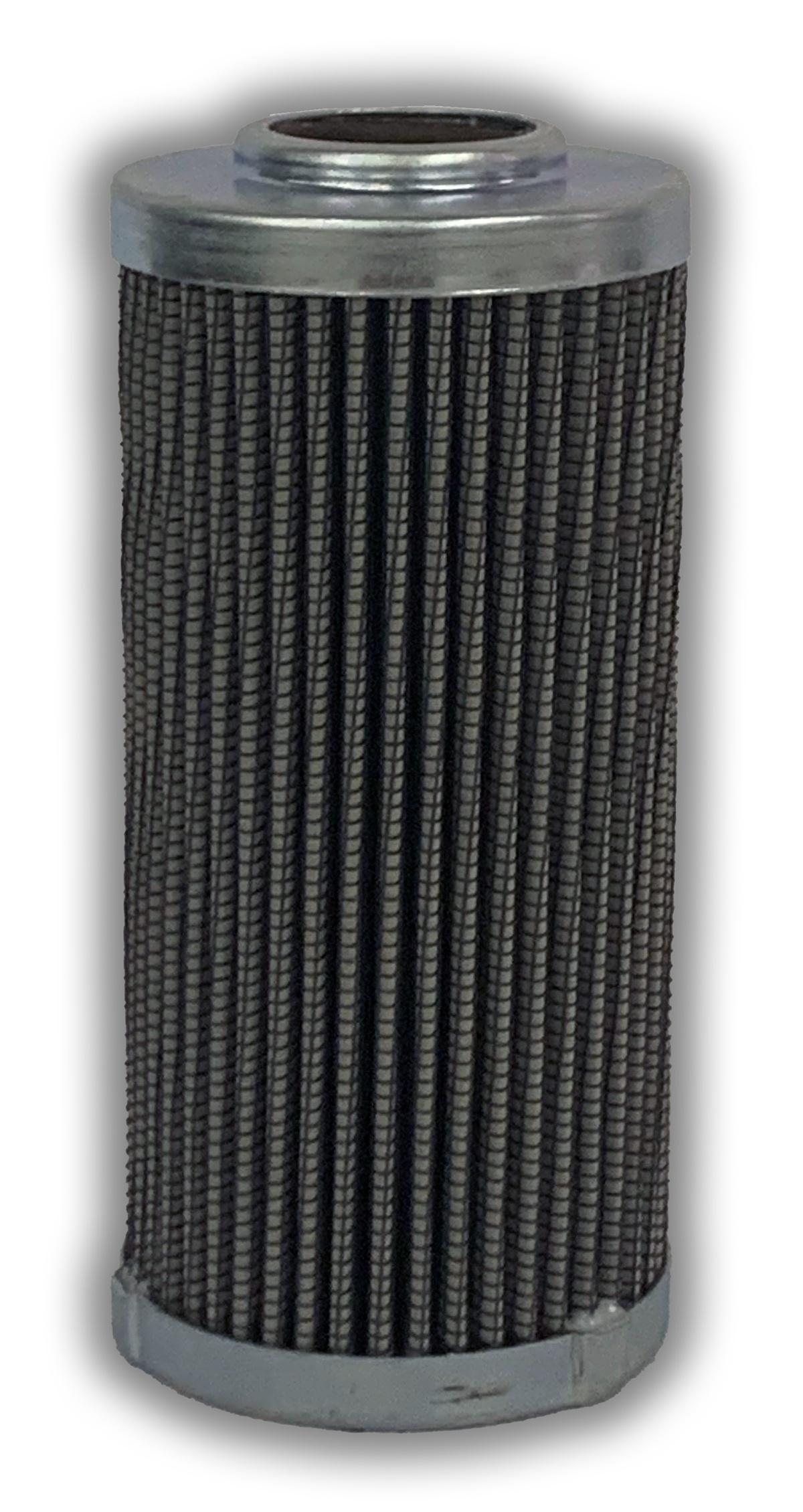

MF0058495 | 2.087" | 0.965" | 305 psi | 4 14/25" | 2.087" | 144 sq. in. | - | - | - | RFQ
|
 |

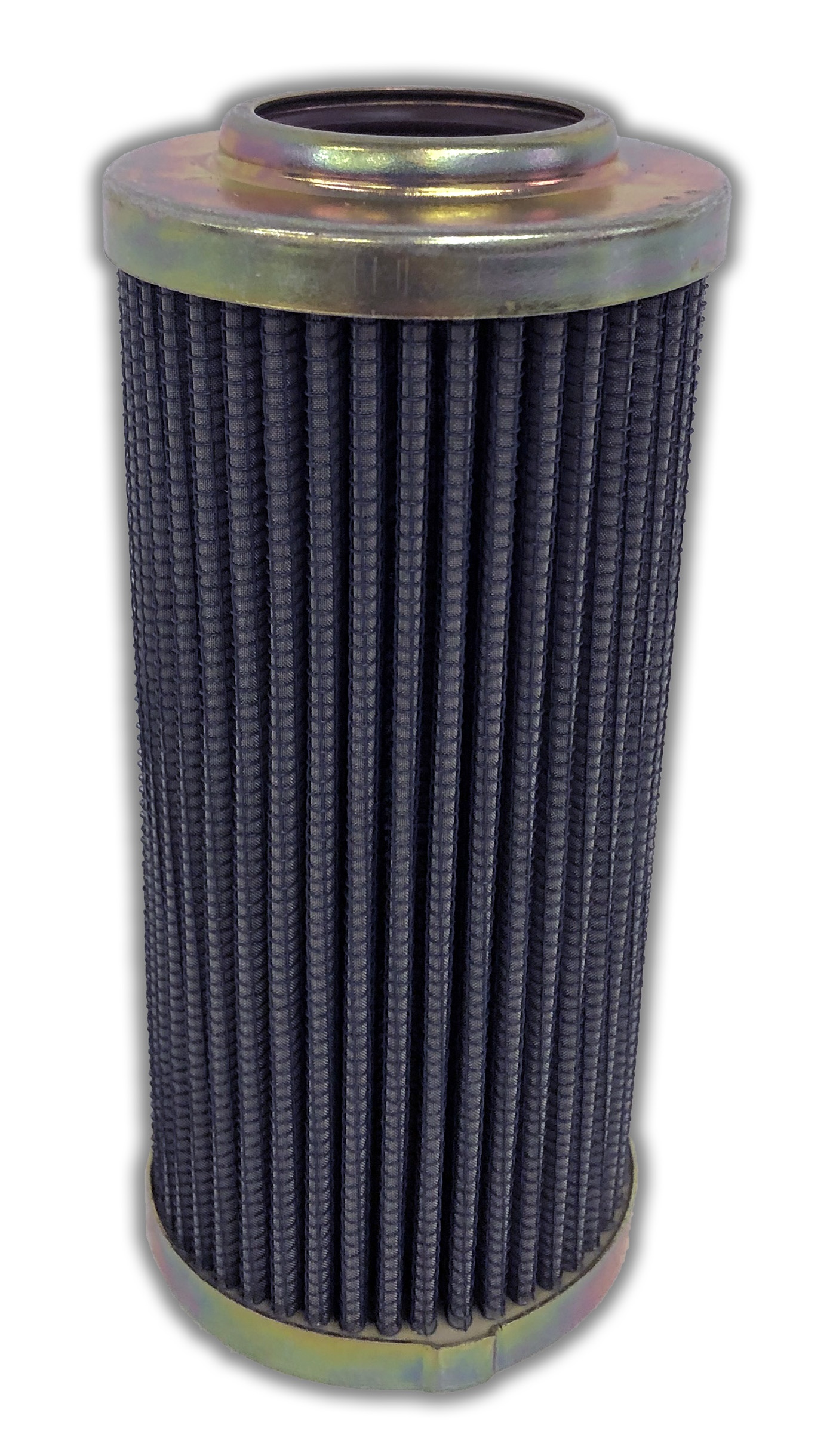

MF0058621 | 2.087" | 1.083" | 305 psi | - | 2.087" | - | 305 psi | - | - | RFQ
|
