MAIN FILTER INC. MF0597055 D72A250T Interchange Hydraulic Filter, Wire Mesh, 250 Micron, Buna Seal, 6.81 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom I.d. | 1.614" |
| Bottom O.d. | 3.898" |
| Cracking Pressure | 58 psi |
| Filter Media | Wire Mesh |
| Filter Rating | 250 µm |
| Filter Size | 273 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Buna N |
| Max. Operating Temp. | 248°F |
| Max. Operating Temp. | 248 Deg. F |
| Min. Operating Temp. | -13°F |
| Seal Type | Buna N |
| Top I.d. | 0.591" |
| Top O.d. | 3.898" |
Product Details:
- Repalcement WIX D72A250T
Product Variants
| Product | Model | Top I.d. | Top O.d. | Cracking Pressure | Bottom O.d. | Bottom I.d. | Flow Direction | Filter Size | Filter Media | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF0306293 | 0.591" | 3.898" | 58 psi | 3.898" | 1.614" | Outside In | 273 sq. in. | Wire Mesh | - | RFQ
|
 |
MF0306298 | 0.748" | 5.118" | 58 psi | 5.118" | 2.559" | Outside In | 321 sq. in. | Wire Mesh | - | RFQ
|
 |

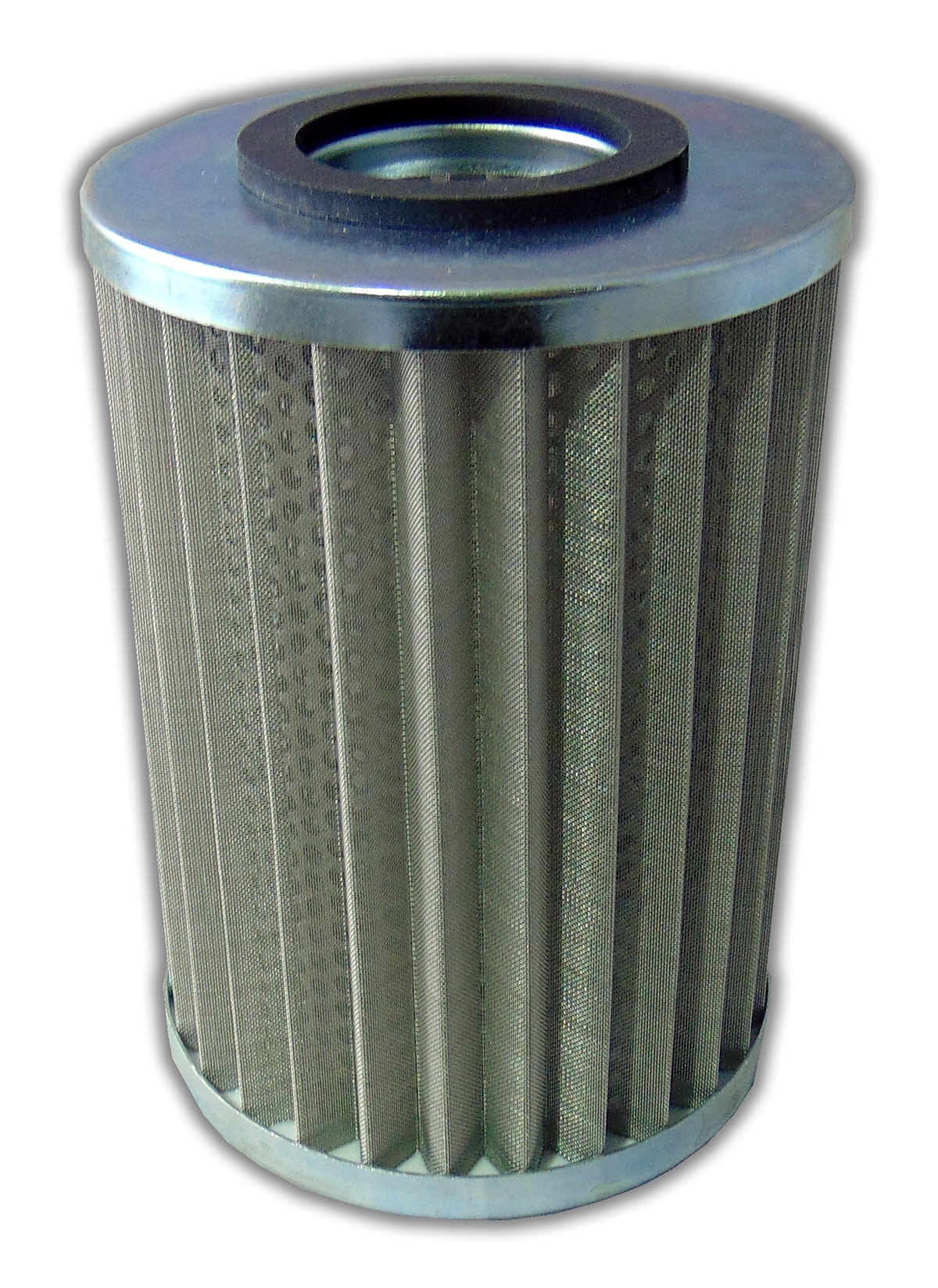

MF0434056 | 0.354" | 3.898" | - | 3.898" | 1.614" | - | - | Wire Mesh | - | RFQ
|
|
MF0597064 | 0.748" | 5.118" | 58 psi | 5.118" | 2.559" | Outside In | 321 sq. in. | Wire Mesh | - | RFQ
|
 |

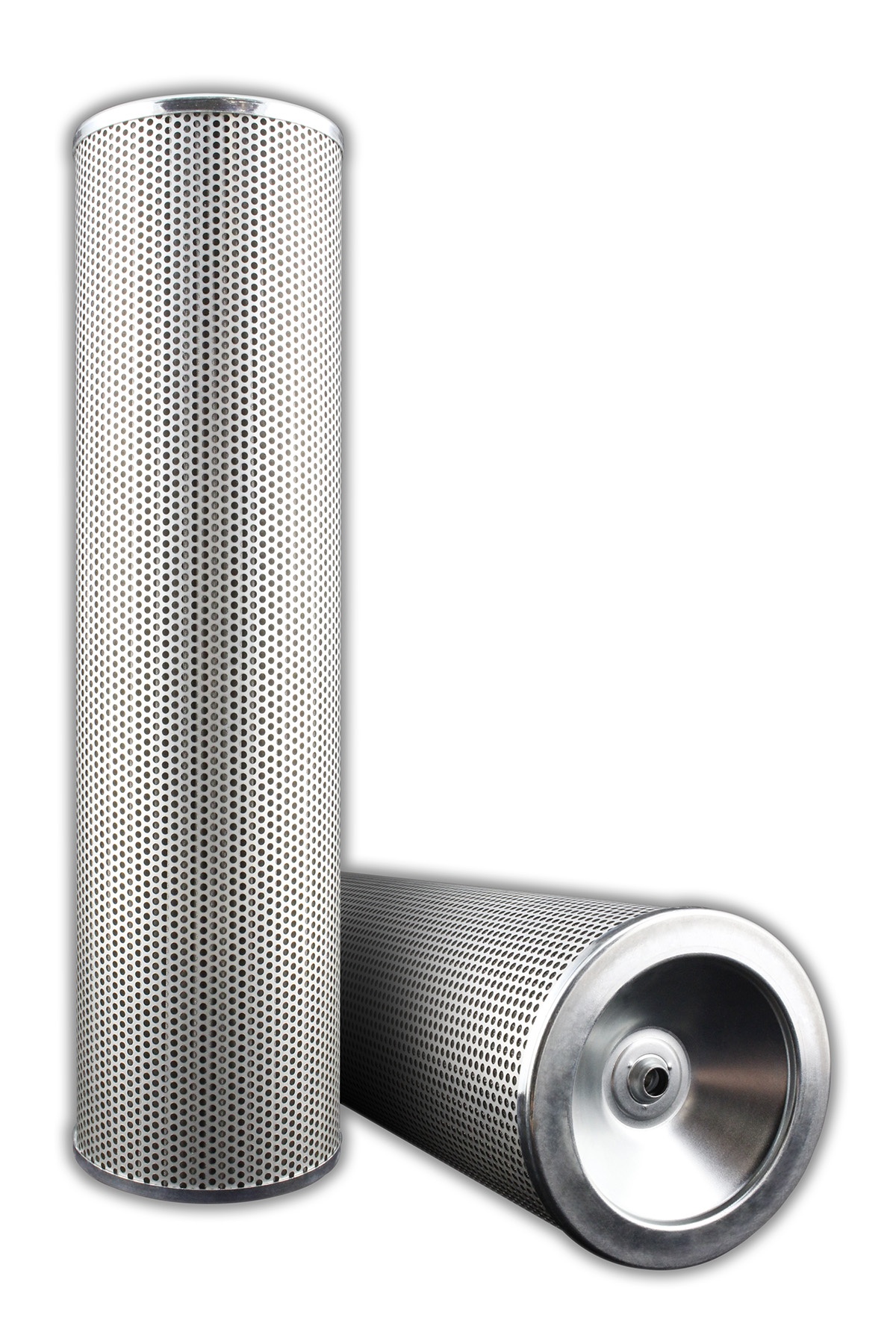

MF0600941 | 3.622" | 4.961" | 145 psi | 4.961" | 0.409" | Inside Out | 708 sq. in. | Wire Mesh | - | RFQ
|
|
MF0603939 | 0.354" | 3.898" | - | - | 1.614" | - | - | - | - | RFQ
|
 |
MF0604003 | 1.386" | 2.874" | 3045 psi | 2.874" | - | Outside In | 189 sq. in. | Wire Mesh | - | RFQ
|
