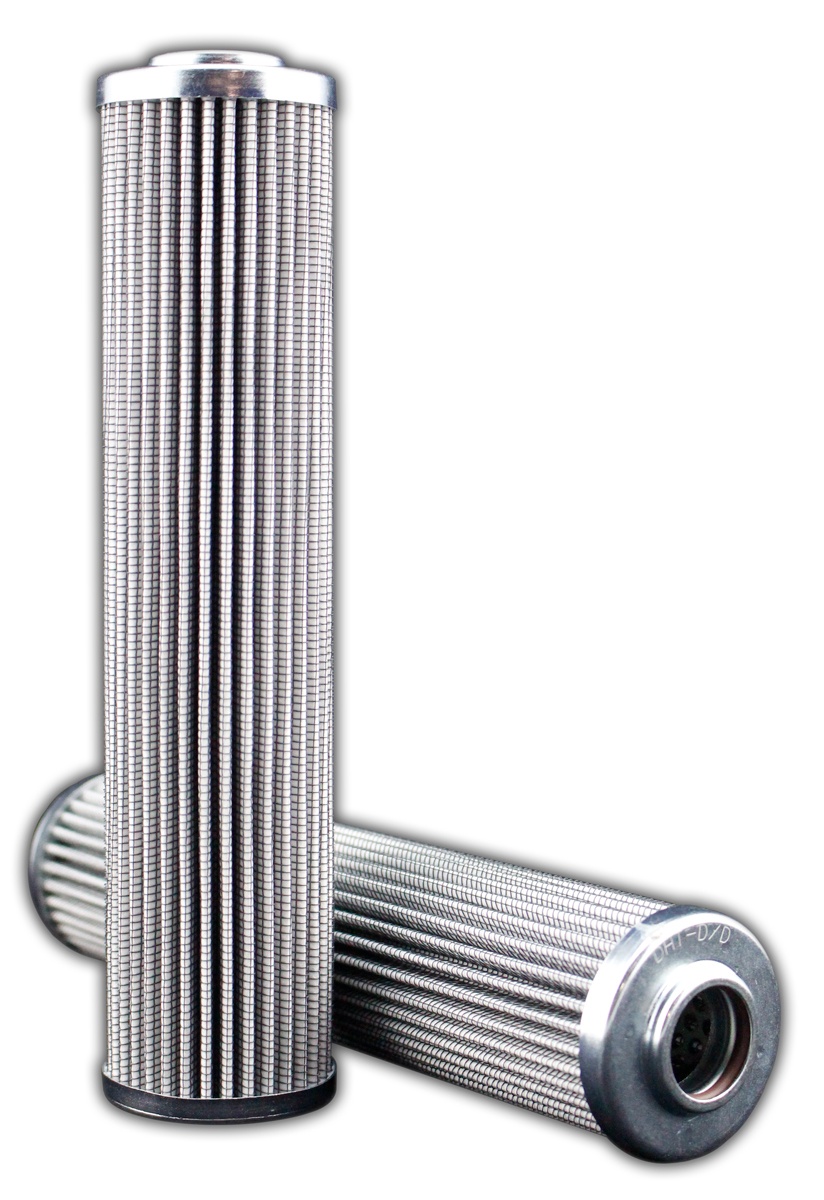

MAIN FILTER INC. MF0595534 SD015E20V Interchange Hydraulic Filter, Glass, 25 Micron, Viton Seal, 7.83 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom O.d. | 1.79" |
| Capacity | 14.91g |
| Cracking Pressure | 145 psi |
| Filter Media | Glass |
| Filter Rating | 25 µm |
| Filter Size | 166 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Viton |
| Height | 7.83" |
| Max. Operating Temp. | 248°F |
| Max. Operating Temp. | 248 Deg. F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top I.d. | 0.81" |
| Top O.d. | 1.79" |
Product Details:
- Repalcement STAUFF SD015E20V
Product Variants
| Product | Model | Filter Media | Top O.d. | Top I.d. | Cracking Pressure | Height | Filter Rating | Bottom O.d. | Flow Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0006157 | Glass | 3.937" | 1.63" | 3045 psi | 18.465" | 25 µm | 3.937" | Outside In | - | RFQ
|
 |
MF0057054 | Glass | 3.937" | 1.63" | 3045 psi | 9.291" | 25 µm | 3.937" | Outside In | - | RFQ
|
|
MF0057055 | Glass | 3.937" | 1.63" | 3045 psi | - | 25 µm | 3.937" | Outside In | - | RFQ
|
 |
MF0058205 | Glass | 3.11" | 2.008" | - | - | 25 µm | 3.11" | - | - | RFQ
|
 |
MF0058215 | Glass | 3.11" | 2.008" | - | - | 25 µm | 3.11" | - | - | RFQ
|
 |
MF0058225 | Glass | 3.11" | 2.008" | - | - | 25 µm | 3.11" | - | - | RFQ
|
 |
MF0058341 | Glass | 1.3" | 0.65" | 3045 psi | 3.94" | 25 µm | 1.3" | Outside In | - | RFQ
|
