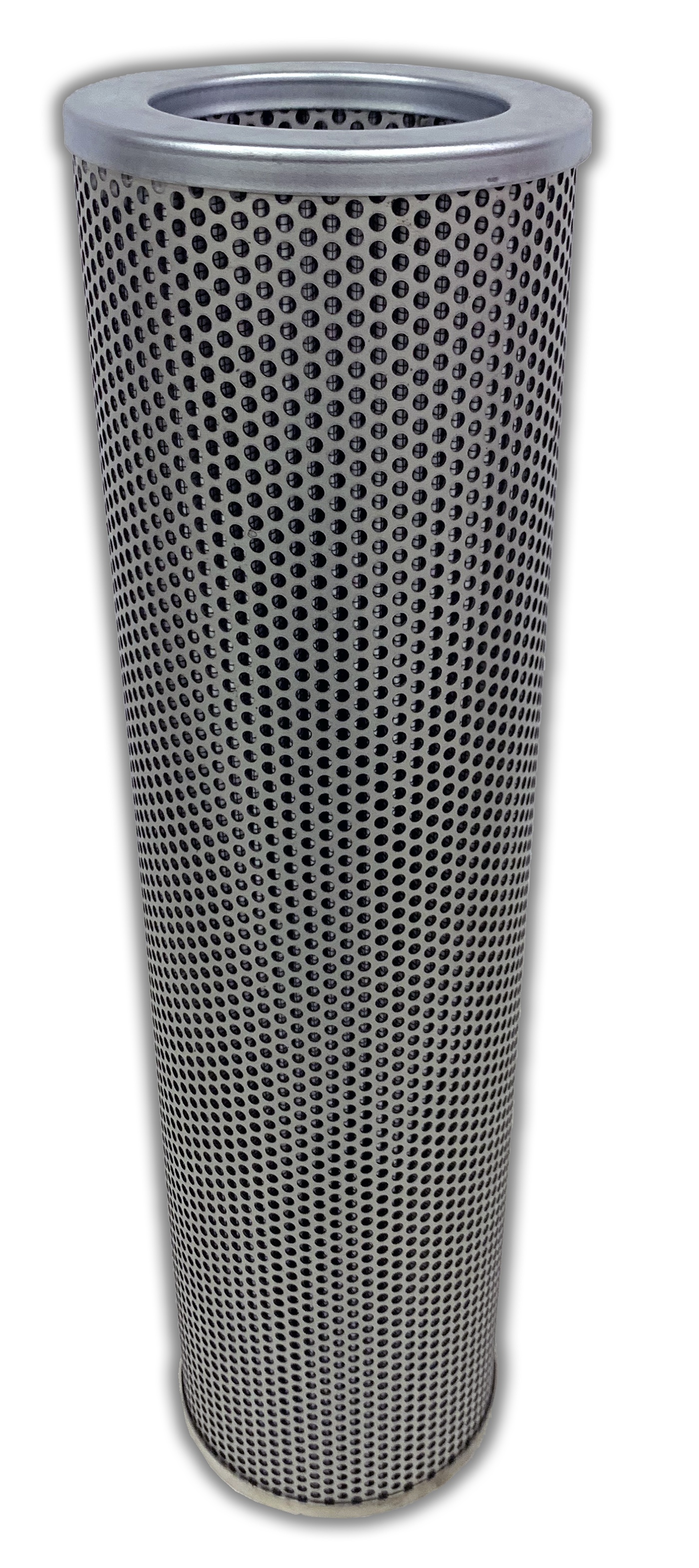

MAIN FILTER INC. MF0585531 Interchange Hydraulic Filter, Glass, 10 Micron Rating, Buna Seal, 15.74 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom Inside Dia. | 1.221" |
| Bottom Outside Dia. | 4.173" |
| Capacity | 92.78g |
| Collapse Pressure | 145 psi |
| Cracking Pressure | 145 psi |
| Filter Media | Glass |
| Filter Rating | 10 µm |
| Filter Size | 948 sq. in. |
| Flow Direction | Inside Out |
| Flow Type | Inside Out |
| Fluid Type | HL, HM, HV, HH |
| Gasket Material | Buna N |
| Height | 15.74" |
| Max. Operating Temp. | 248 Deg. F |
| Max. Operating Temp. | 248°F |
| Min. Operating Temp. | -13°F |
| Seal Type | Buna N |
| Top Inside Dia. | 2.835" |
| Top Outside Dia. | 4.173" |
Product Details:
- Repalcement FINN FILTER
Product Variants
| Product | Model | Filter Media | Cracking Pressure | Height | Flow Direction | Filter Size | Capacity | Collapse Pressure | Fluid Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0006153 | Glass | 145 psi | 8.26" | Inside Out | 597 sq. in. | 58.45g | - | HL, HM, HV, HH | - | RFQ
|
 |
MF0006466 | Glass | 116 psi | 6.49" | Outside In | 848 sq. in. | 83.07g | 116 psi | HL, HM, HV, HH | - | RFQ
|
 |
MF0006481 | Glass | 145 psi | 7 12/25" | Inside Out | 446 sq. in. | 43.69g | 145 psi | HL, HM, HV, HH | - | RFQ
|
 |
MF0006571 | Glass | 145 psi | 18.89" | Inside Out | 1380 sq. in. | 135.07g | 145 psi | HL, HM, HV, HH | - | RFQ
|
 |
MF0006805 | Glass | 145 psi | 5.9" | Inside Out | 232 sq. in. | 22.75g | - | HL, HM, HV, HH | - | RFQ
|
 |
MF0006914 | Glass | 145 psi | - | Inside Out | 5701 sq. in. | 558.12g | - | HL, HM, HV, HH | - | RFQ
|
 |
MF0006937 | Glass | 145 psi | - | Outside In | 521 sq. in. | 50.99g | - | HL, HM, HV, HH | - | RFQ
|
