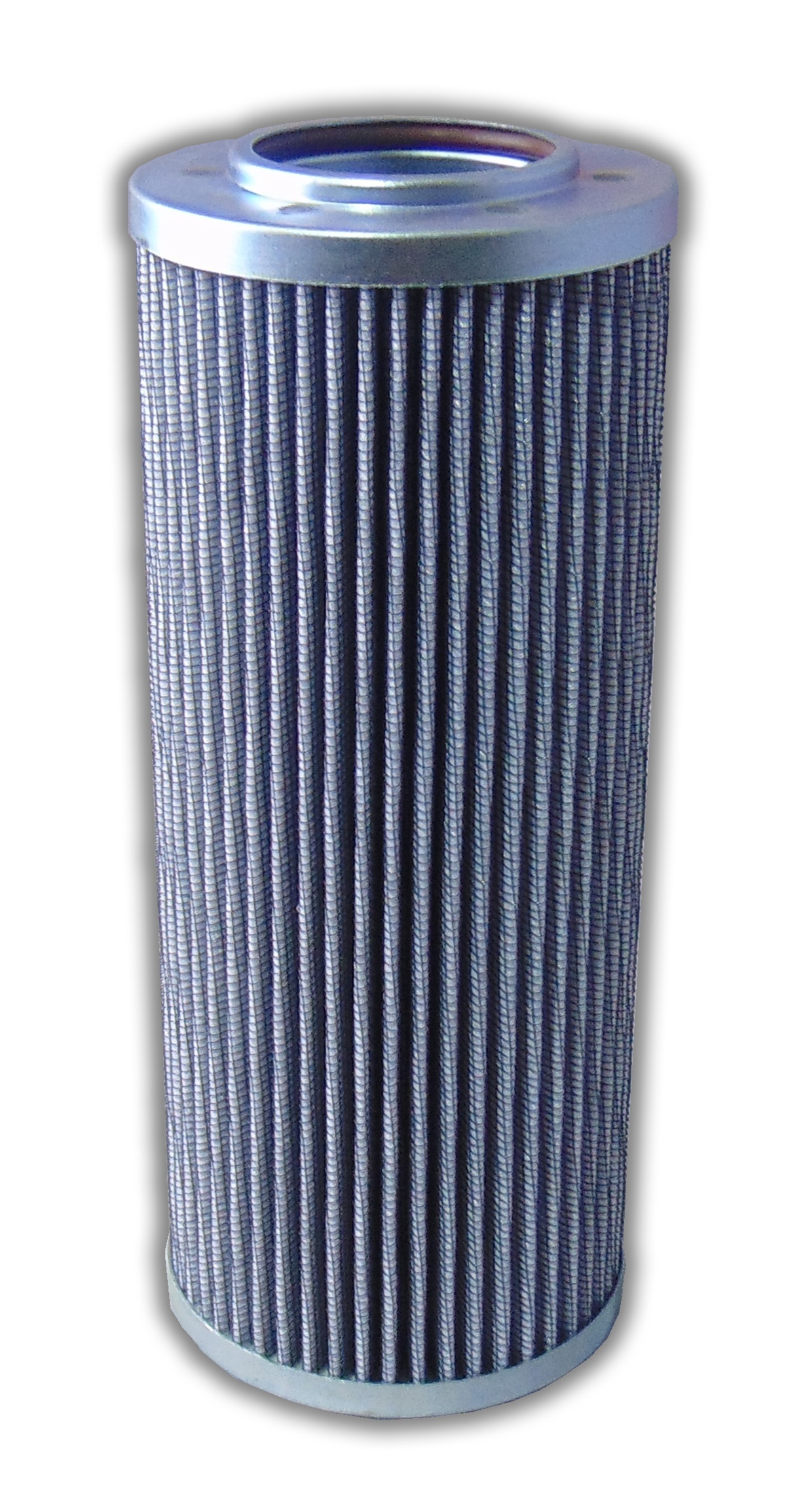

MAIN FILTER INC. MF0508564 Hydraulic Filter, Polyester, 40 Micron Rating, Viton Seal, 8.012 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom Outside Dia. | 3.228" |
| Capacity | 42.66g |
| Collapse Pressure | 101 psi |
| Cracking Pressure | 101 psi |
| Filter Media | Polyester |
| Filter Rating | 40 µm |
| Filter Size | 475 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL, HM, HV, HH |
| Gasket Material | Viton |
| Height | 8.012" |
| Max. Operating Temp. | 248°F |
| Max. Operating Temp. | 248 Deg. F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top Inside Dia. | 1.791" |
| Top Outside Dia. | 3.228" |
Product Details:
- Repalcement TAISEI KOGYO
Product Variants
| Model | Top Outside Dia. | Bottom Outside Dia. | Flow Type | Top Inside Dia. | Cracking Pressure | Flow Direction | Filter Media | Seal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

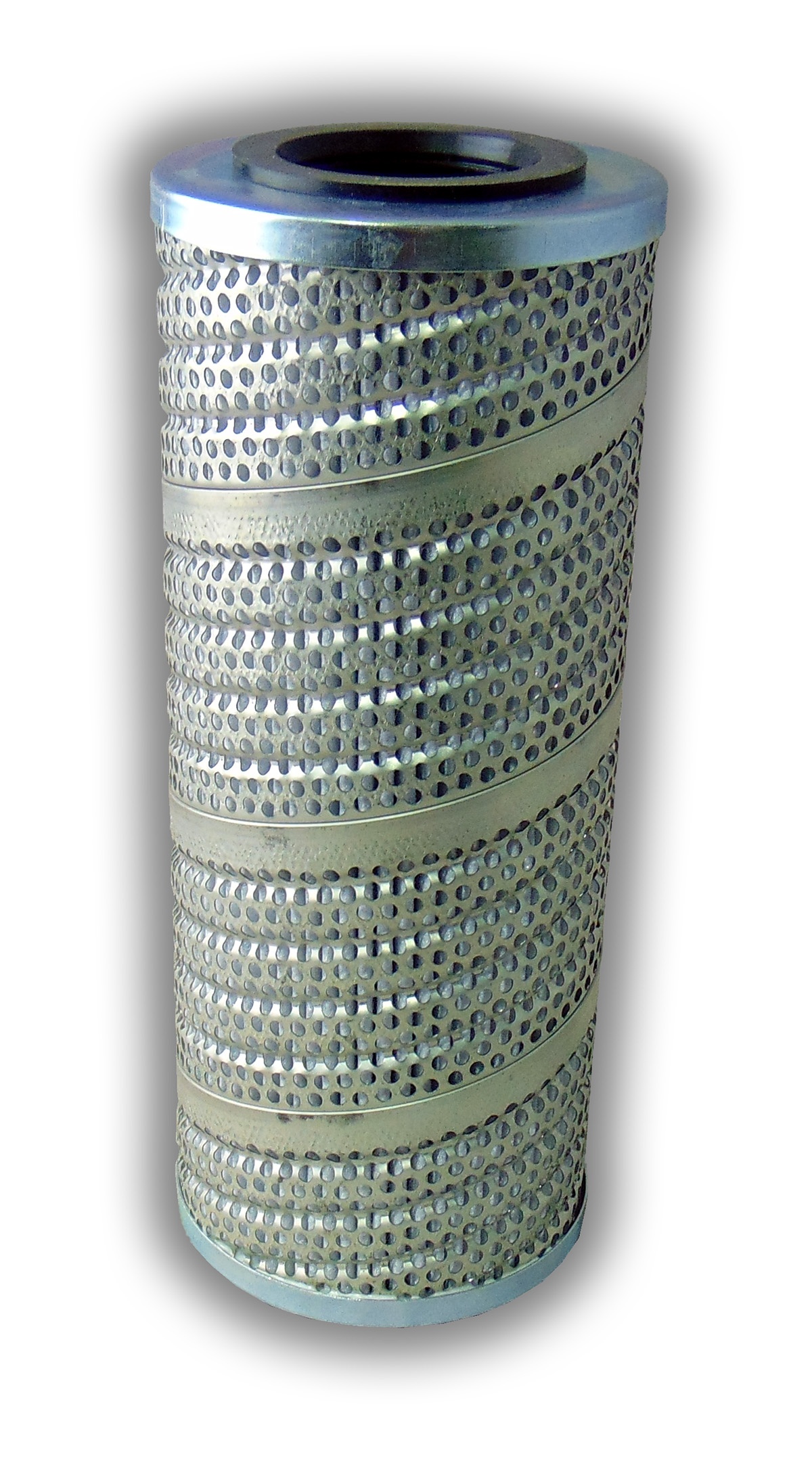

| MF0432251 | 3.661" | 3.661" | Inside Out | 1.732" | 73 psi | Inside Out | Polyester | Viton | - | RFQ
|
| MF0505957 | 3.228" | 3.228" | Outside In | 1.791" | 101 psi | Outside In | Polyester | Viton | - | RFQ
|
| MF0505958 | 3.228" | 3.228" | Outside In | 1.791" | 101 psi | Outside In | Polyester | Viton | - | RFQ
|
| MF0508565 | 3.228" | 3.228" | Outside In | 1.791" | 101 psi | Outside In | Polyester | Viton | - | RFQ
|
| MF0604080 | 3.228" | 3.228" | Outside In | 1.791" | 101 psi | Outside In | Polyester | Viton | - | RFQ
|
| MF0613882 | 3.228" | 3.228" | Outside In | 1.791" | 101 psi | Outside In | Polyester | Viton | - | RFQ
|
| MF0851946 | 3.228" | 3.228" | Outside In | 1.791" | 101 psi | Outside In | Polyester | Viton | - | RFQ
|
