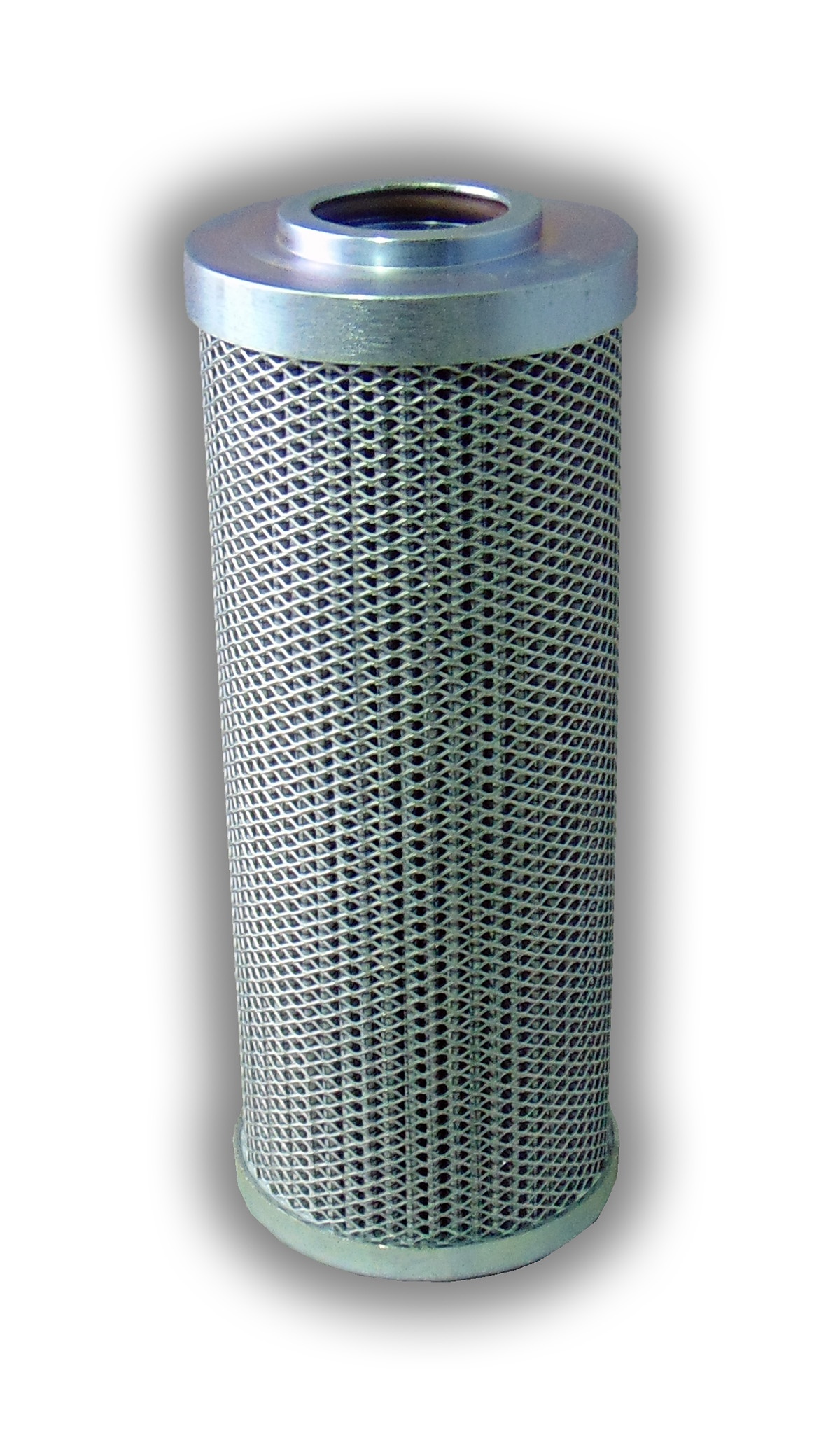

MAIN FILTER INC. MF0507154 HY90349 Interchange Hydraulic Filter, Glass, 25 Micron Rating, Buna Seal, 6.89 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom Outside Dia. | 2 18/25" |
| Capacity | 27.57g |
| Collapse Pressure | 435 psi |
| Cracking Pressure | 435 psi |
| Filter Media | Glass |
| Filter Rating | 25 µm |
| Filter Size | 307 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL, HM, HV, HH |
| Gasket Material | Buna N |
| Height | 6.89" |
| Max. Operating Temp. | 248 Deg. F |
| Max. Operating Temp. | 248°F |
| Min. Operating Temp. | -13°F |
| Seal Type | Buna N |
| Top Inside Dia. | 1.18" |
| Top Outside Dia. | 2 18/25" |
Product Details:
- Repalcement SCHUPP HY90349
Product Variants
| Product | Model | Cracking Pressure | Max. Operating Temp. | Height | Filter Rating | Seal Type | Flow Direction | Gasket Material | Filter Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0006890 | 145 psi | 248°F | 18.31" | 25 µm | Cork | Outside In | Cork | 2346 sq. in. | - | RFQ
|
 |
MF0007146 | 145 psi | 248°F | 13.11" | 25 µm | Buna N | Inside Out | Buna N | 908 sq. in. | - | RFQ
|
 |
MF0012390 | - | - | 4.21" | 25 µm | Viton | - | - | - | - | RFQ
|
 |
MF0024127 | 75 psi | 225°F | - | 25 µm | Buna N | Inside Out | Buna N | - | - | RFQ
|
 |
MF0026318 | 145 psi | 248°F | 9.13" | 25 µm | Buna N | Inside Out | Buna N | 327 sq. in. | - | RFQ
|
|
MF0028919 | 145 psi | 248°F | 13.11" | 25 µm | Buna N | Inside Out | Buna N | 908 sq. in. | - | RFQ
|
 |
MF0029438 | 145 psi | 248°F | 18.27" | 25 µm | Buna N | Inside Out | Buna N | 869 sq. in. | - | RFQ
|
