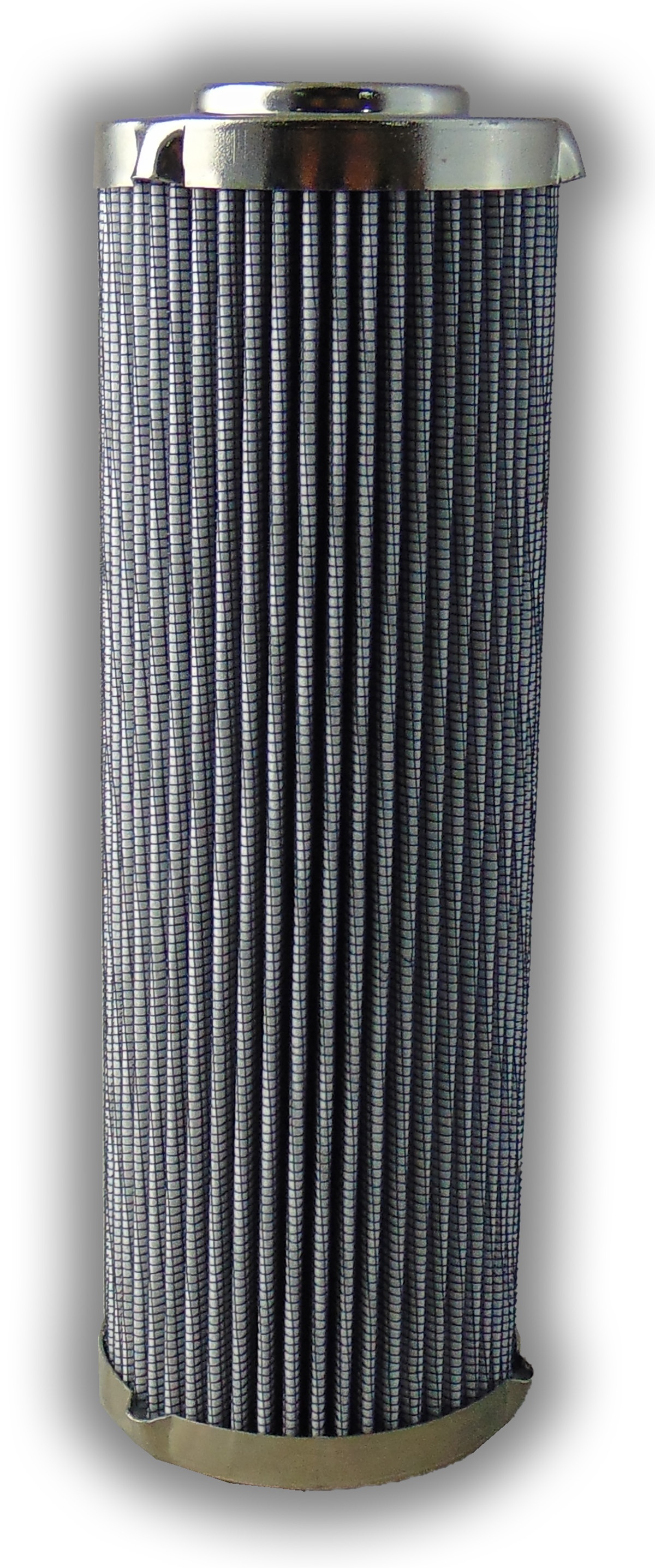

MAIN FILTER INC. MF0503755 01269051 Interchange Hydraulic Filter, Glass, 3 Micron Rating, Viton Seal, 8.46 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom Inside Dia. | 1.319" |
| Bottom Outside Dia. | 2.756" |
| Capacity | 35.67g |
| Collapse Pressure | 145 psi |
| Cracking Pressure | 145 psi |
| Filter Media | Glass |
| Filter Rating | 3 µm |
| Filter Size | 482 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL, HM, HV, HH |
| Gasket Material | Viton |
| Height | 8.46" |
| Max. Operating Temp. | 248 Deg. F |
| Max. Operating Temp. | 248°F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top Inside Dia. | 1.319" |
| Top Outside Dia. | 2.756" |
Product Details:
- Repalcement HYDAC/HYCON 01269051
Product Variants
| Product | Model | Filter Media | Height | Cracking Pressure | Capacity | Filter Size | Collapse Pressure | Fluid Type | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0006201 | Glass | 4.05" | - | - | - | - | - | - | - | RFQ
|
 |
MF0006210 | Glass | - | 435 psi | 48.03g | 649 sq. in. | 435 psi | HL, HM, HV, HH | -13°F | - | RFQ
|
 |
MF0006229 | Glass | 7.99" | - | - | - | - | - | - | - | RFQ
|
 |
MF0006244 | Glass | 4.05" | 435 psi | 4.87g | 66 sq. in. | 435 psi | HL, HM, HV, HH | -13°F | - | RFQ
|
 |
MF0006248 | Glass | - | 435 psi | 11.64g | 157 sq. in. | - | HL, HM, HV, HH | -13°F | - | RFQ
|
|
MF0006251 | Glass | 6.71" | 435 psi | 11.64g | 157 sq. in. | 435 psi | HL, HM, HV, HH | -13°F | - | RFQ
|
 |
MF0006262 | Glass | - | 435 psi | 27.07g | 366 sq. in. | - | HL, HM, HV, HH | -13°F | - | RFQ
|
