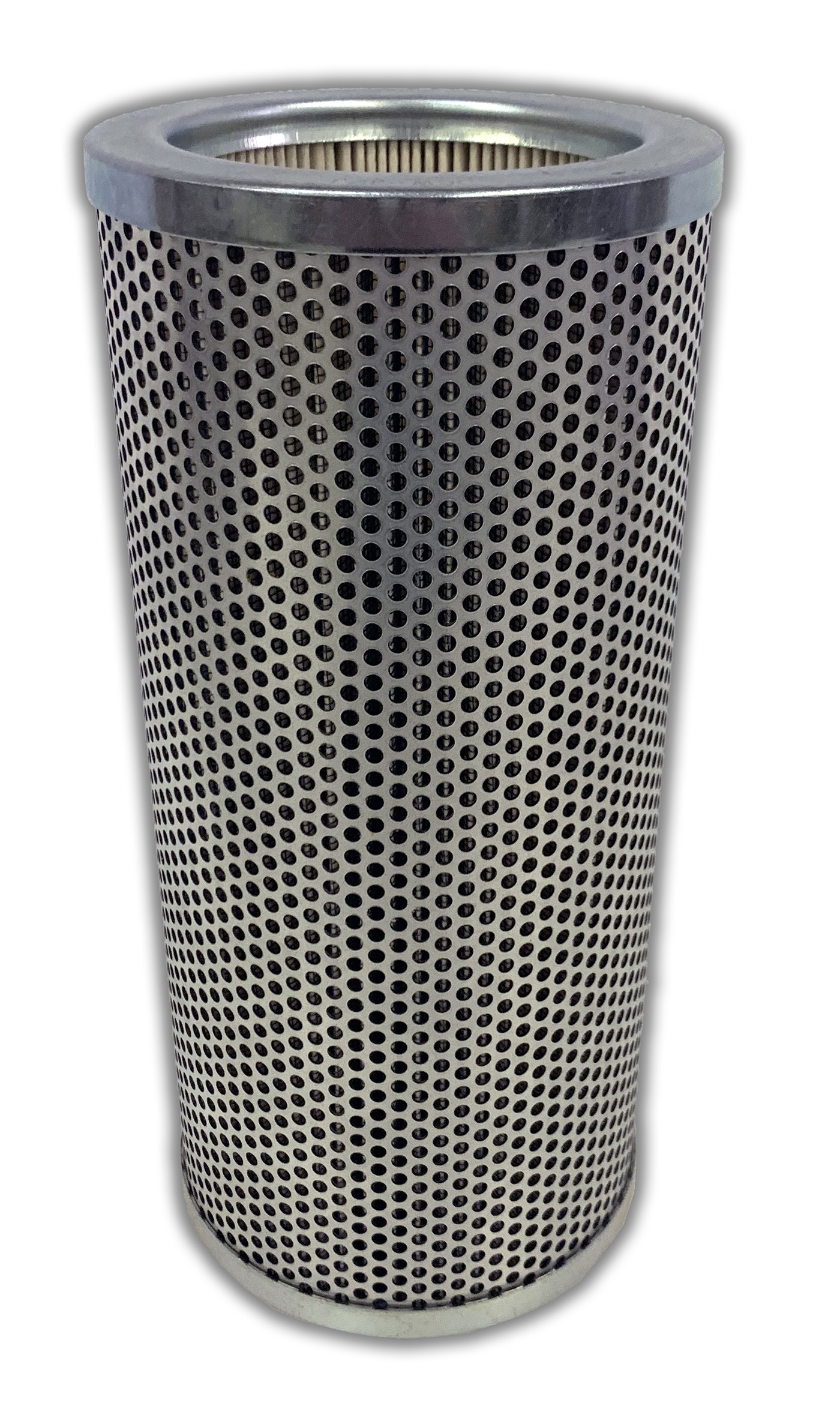

MAIN FILTER INC. MF0433392 HYS501160P10ES Interchange Hydraulic Filter, Cellulose, 10 Micron, Seal, 9.45 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom I.d. | 3.15" |
| Bottom O.d. | 4.33" |
| Capacity | 29.88g |
| Cracking Pressure | 145 psi |
| Filter Media | Cellulose |
| Filter Rating | 10 µm |
| Filter Size | 664 sq. in. |
| Flow Direction | Inside Out |
| Flow Type | Inside Out |
| Fluid Type | HL/HM/HV/HH |
| Height | 9.45" |
| Max. Operating Temp. | 248 Deg. F |
| Max. Operating Temp. | 248°F |
| Min. Operating Temp. | -13°F |
| Top O.d. | 4.33" |
Product Details:
- Repalcement PLASSER HYS501160P10ES
Product Variants
| Product | Model | Top O.d. | Cracking Pressure | Top I.d. | Height | Bottom O.d. | Flow Direction | Bottom I.d. | Filter Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0065635 | 2.047" | 73 psi | 1.004" | 2 3/4" | 2.047" | Outside In | 1.142" | 74 sq. in. | - | RFQ
|
 |
MF0065924 | 3.268" | - | 1.98" | 8.93" | 3.268" | - | 1.98" | - | - | RFQ
|
 |
MF0065935 | 3.504" | 44 psi | 1.98" | - | 3.504" | Inside Out | 1.98" | 1034 sq. in. | - | RFQ
|
 |
MF0065938 | 2.835" | 73 psi | 1.772" | 11.81" | 2.835" | Inside Out | 1.772" | 509 sq. in. | - | RFQ
|
 |
MF0065948 | 4.961" | 73 psi | 3.622" | 11.41" | 4.961" | Inside Out | 3.622" | 1121 sq. in. | - | RFQ
|
 |
MF0066184 | 1.22" | 145 psi | - | 1 7/25" | 1.22" | Outside In | 0.53" | 19 sq. in. | - | RFQ
|
 |
MF0301433 | 1.85" | 435 psi | 1.004" | 3.7" | 1.85" | Outside In | - | 90 sq. in. | - | RFQ
|
