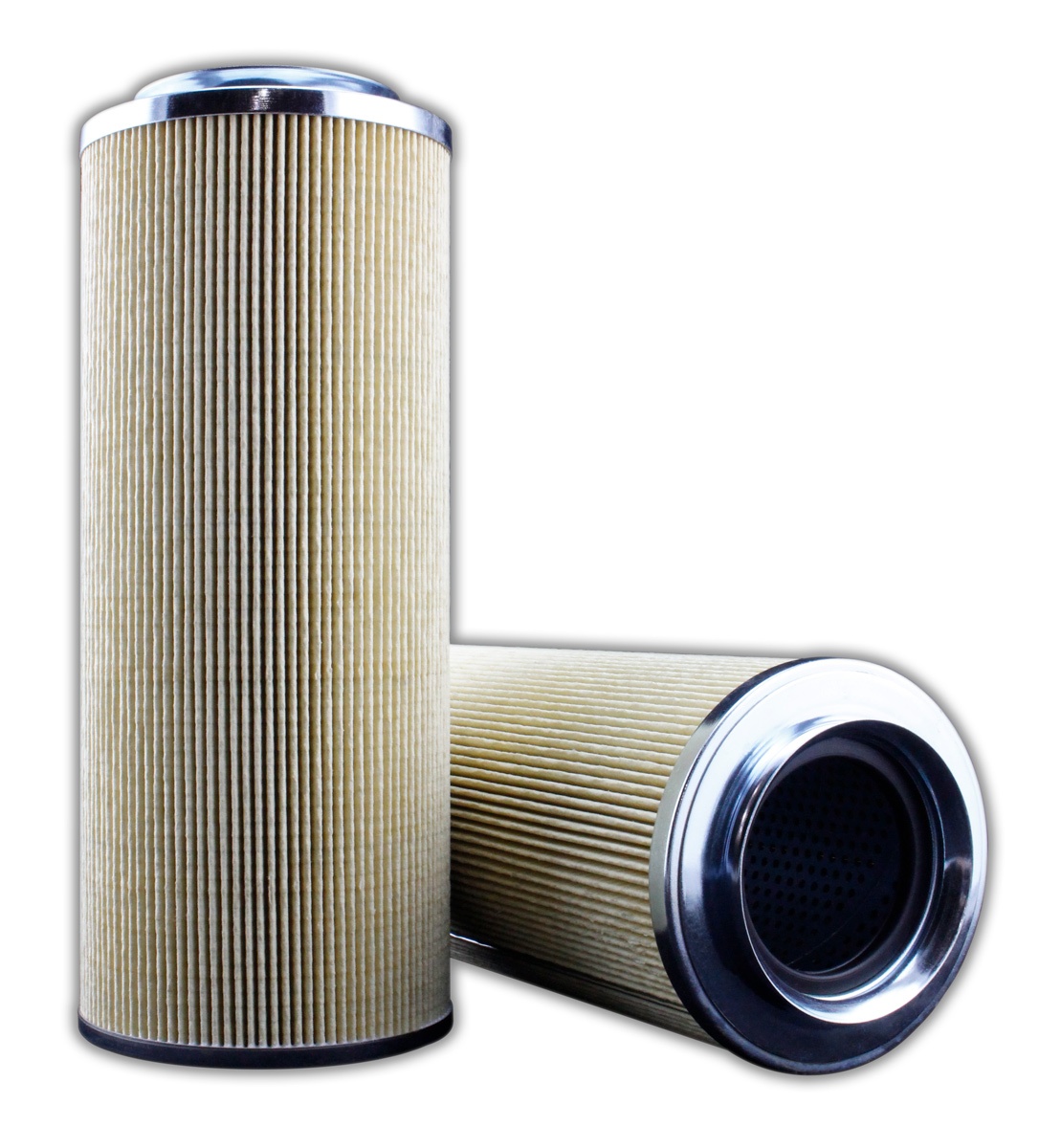

MAIN FILTER INC. MF0397100 RL100L10B Hydraulic Filter, Cellulose, 10 Micron, Viton Seal, 12.55 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom I.d. | 2.791" |
| Bottom O.d. | 5.079" |
| Capacity | 51.45g |
| Cracking Pressure | 87 psi |
| Filter Media | Cellulose |
| Filter Rating | 10 µm |
| Filter Size | 1286 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Viton |
| Max. Operating Temp. | 248 Deg. F |
| Max. Operating Temp. | 248°F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top I.d. | 2.638" |
| Top O.d. | 5.079" |
Product Details:
- Repalcement STAUFF RL100L10B
Product Variants
| Product | Model | Top O.d. | Filter Media | Cracking Pressure | Height | Top I.d. | Bottom O.d. | Filter Size | Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0004258 | 3.9" | Cellulose | 145 psi | - | 2.03" | 3.9" | 578 sq. in. | 23.12g | - | RFQ
|
 |
MF0004330 | 1.654" | Cellulose | 87 psi | 3.62" | 0.898" | 1.654" | 59 sq. in. | 2.35g | - | RFQ
|
 |
MF0004353 | 1.752" | Cellulose | 435 psi | 6.71" | - | 1.752" | 157 sq. in. | 6.29g | - | RFQ
|
 |
MF0004419 | 1.752" | Cellulose | 435 psi | 4.05" | - | 1.752" | 66 sq. in. | 2.64g | - | RFQ
|
 |
MF0004427 | 2.362" | Cellulose | 435 psi | 7.99" | - | 2.362" | 216 sq. in. | 8.63g | - | RFQ
|
 |
MF0004430 | 3.032" | Cellulose | 435 psi | - | - | 3.032" | 366 sq. in. | 14.63g | - | RFQ
|
 |
MF0004433 | 3 19/25" | Cellulose | 435 psi | - | - | 3 19/25" | 648 sq. in. | 25.92g | - | RFQ
|
