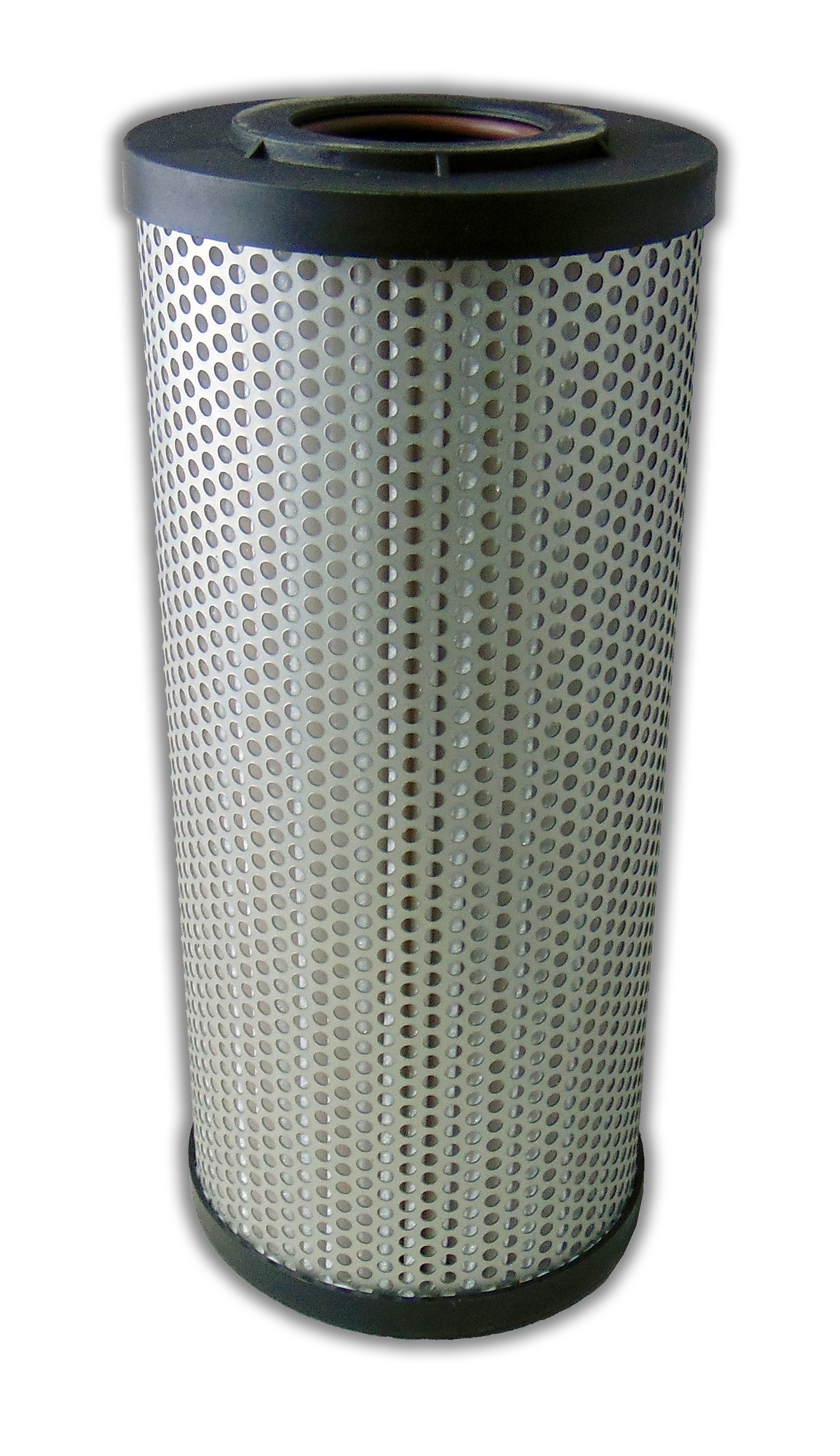

MAIN FILTER INC. MF0343047 KW Hydraulic Filter, Cellulose/Water Removal, 10 Micron, Viton Seal, 9.25 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom I.d. | 1.654" |
| Bottom O.d. | 3.898" |
| Capacity | 17.16g |
| Cracking Pressure | 145 psi |
| Filter Media | Cellulose, Water Removal |
| Filter Rating | 10 µm |
| Filter Size | 429 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Viton |
| Height | 9 1/4" |
| Max. Operating Temp. | 248 Deg. F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top I.d. | 1.654" |
| Top O.d. | 3.898" |
Product Details:
- Repalcement SCHROEDER KW
Product Variants
| Product | Model | Top O.d. | Filter Media | Top I.d. | Cracking Pressure | Height | Bottom O.d. | Filter Size | Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0004036 | 3.898" | Cellulose | 1.654" | 145 psi | 27.95" | 3.898" | 2611 sq. in. | 104.46g | - | RFQ
|
 |
MF0004048 | 3.898" | Cellulose | 1.654" | 145 psi | - | 3.898" | 1719 sq. in. | 68.75g | - | RFQ
|
 |
MF0004094 | 3.898" | Cellulose | 1.654" | 145 psi | - | 3.898" | - | - | - | RFQ
|
 |
MF0004207 | 1.752" | Cellulose | 0.87" | - | 3.54" | 1.752" | - | - | - | RFQ
|
 |
MF0004442 | 1.378" | Cellulose | 0.476" | 435 psi | 3.7" | 1.378" | 32 sq. in. | 1.28g | - | RFQ
|
|
MF0004445 | 1.752" | Cellulose | 0.87" | - | 3.54" | 1.752" | - | - | - | RFQ
|
 |
MF0004448 | 1.752" | Cellulose | 0.87" | 435 psi | - | 1.752" | 135 sq. in. | 5.41g | - | RFQ
|
