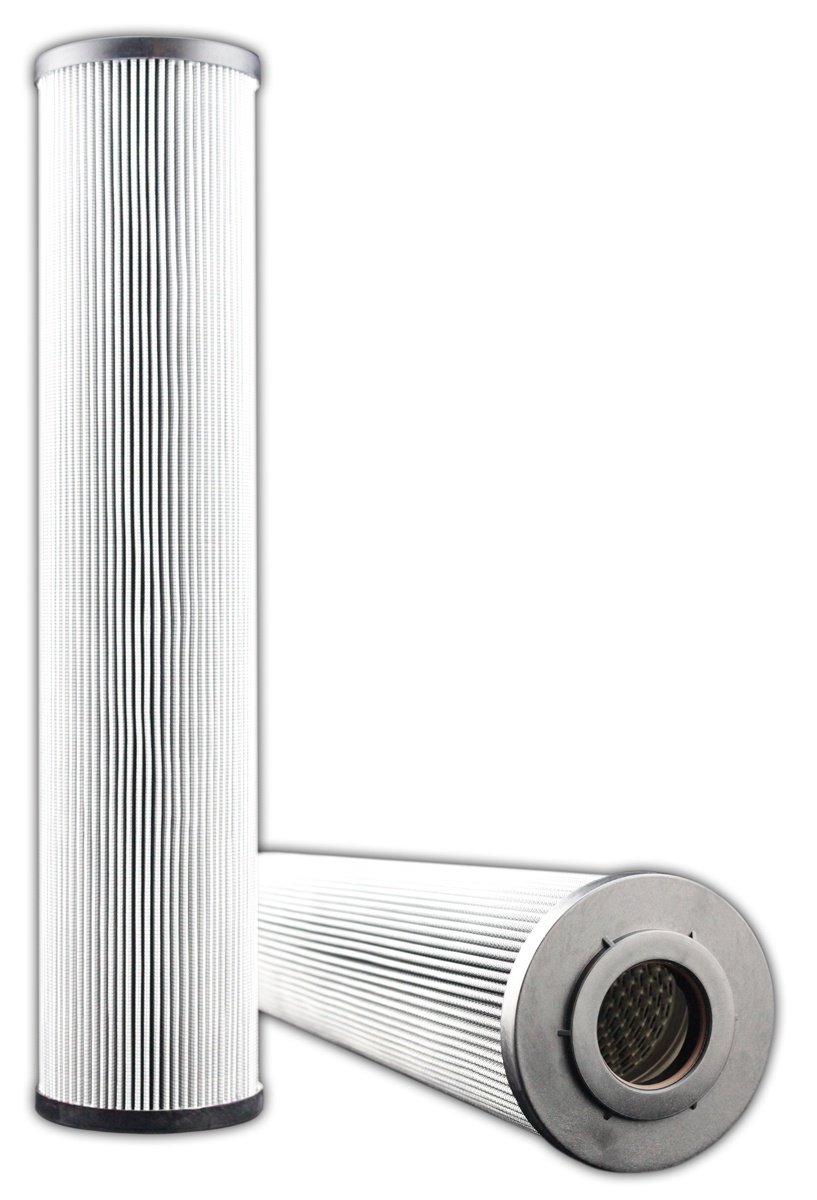

MAIN FILTER INC. MF0342972 KKZ1 Interchange Hydraulic Filter, Glass, 1 Micron, Viton Seal, 18.5 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom I.d. | 1.654" |
| Bottom O.d. | 3.898" |
| Capacity | 153.11g |
| Cracking Pressure | 145 psi |
| Filter Media | Glass |
| Filter Rating | 1 µm |
| Filter Size | 2069 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Viton |
| Max. Operating Temp. | 248 Deg. F |
| Max. Operating Temp. | 248°F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top I.d. | 1.654" |
| Top O.d. | 3.898" |
Product Details:
- Repalcement SCHROEDER KKZ1
Product Variants
| Product | Model | Top I.d. | Top O.d. | Height | Cracking Pressure | Bottom O.d. | Filter Size | Capacity | Bottom I.d. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0006129 | 1.347" | 2.362" | 9.05" | - | 2.362" | - | - | - | - | RFQ
|
 |
MF0033702 | 1" | 1.772" | 4 12/25" | - | 1.772" | - | - | - | - | RFQ
|
 |
MF0056363 | 1.504" | 2.992" | - | - | 2.992" | - | - | - | - | RFQ
|
|
MF0056364 | 1.504" | 2.992" | 16.77" | - | 2.992" | - | - | - | - | RFQ
|
 |
MF0056642 | 2.224" | 3.78" | 16 22/25" | - | 3.78" | - | - | - | - | RFQ
|
|
MF0056643 | 2.224" | 3.78" | - | - | 3.78" | - | - | - | - | RFQ
|
 |
MF0056709 | 1.004" | 1.772" | 4 11/25" | - | 1.772" | - | - | - | - | RFQ
|
