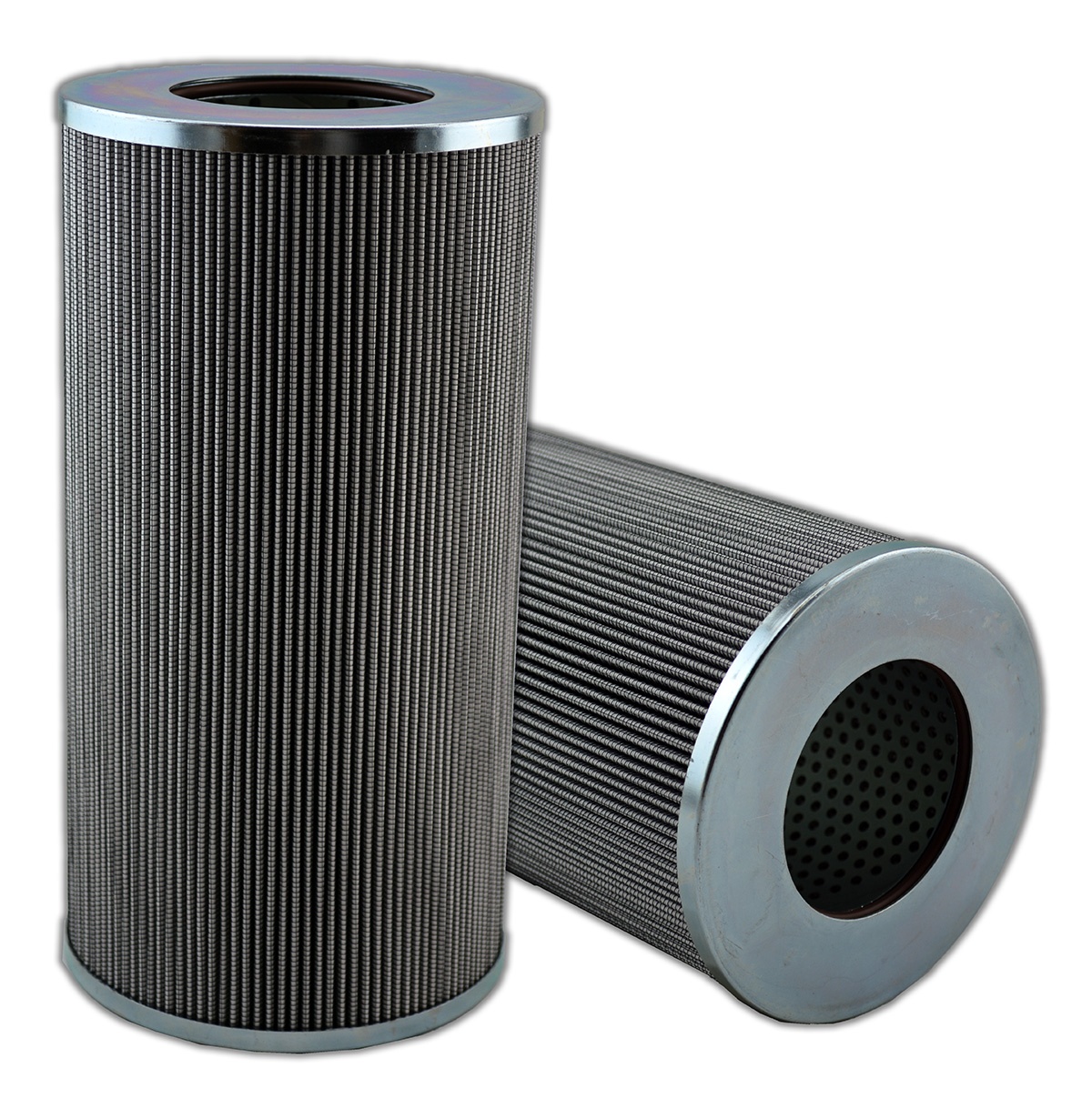

MAIN FILTER INC. MF0339316 G02615 Interchange Hydraulic Filter, Glass, 25 Micron Rating, Viton Seal, 9.84 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom Inside Dia. | 2.791" |
| Bottom Outside Dia. | 5.079" |
| Capacity | 115.26g |
| Collapse Pressure | 145 psi |
| Cracking Pressure | 145 psi |
| Filter Media | Glass |
| Filter Rating | 25 µm |
| Filter Size | 1284 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL, HM, HV, HH |
| Gasket Material | Viton |
| Height | 9 21/25" |
| Max. Operating Temp. | 248 Deg. F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top Inside Dia. | 2.791" |
| Top Outside Dia. | 5.079" |
Product Details:
- Repalcement PARKER G02615
Product Variants
| Product | Model | Filter Media | Cracking Pressure | Height | Flow Direction | Filter Size | Capacity | Collapse Pressure | Fluid Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0006091 | Glass | - | 9 21/25" | - | - | - | - | - | - | RFQ
|
 |
MF0006250 | Glass | 435 psi | - | Outside In | 157 sq. in. | 14.13g | - | HL, HM, HV, HH | - | RFQ
|
 |
MF0006253 | Glass | 435 psi | 6.71" | Outside In | 157 sq. in. | 14.13g | 435 psi | HL, HM, HV, HH | - | RFQ
|
 |
MF0006258 | Glass | 435 psi | 5.66" | Outside In | 143 sq. in. | 12.81g | 435 psi | HL, HM, HV, HH | - | RFQ
|
 |
MF0006261 | Glass | 435 psi | 7.99" | Outside In | 216 sq. in. | 19.38g | 435 psi | HL, HM, HV, HH | - | RFQ
|
 |
MF0006264 | Glass | 435 psi | 7.63" | Outside In | 366 sq. in. | 32.85g | - | HL, HM, HV, HH | - | RFQ
|
 |
MF0006265 | Glass | 435 psi | 7.63" | Outside In | 649 sq. in. | 58.28g | 435 psi | HL, HM, HV, HH | - | RFQ
|
