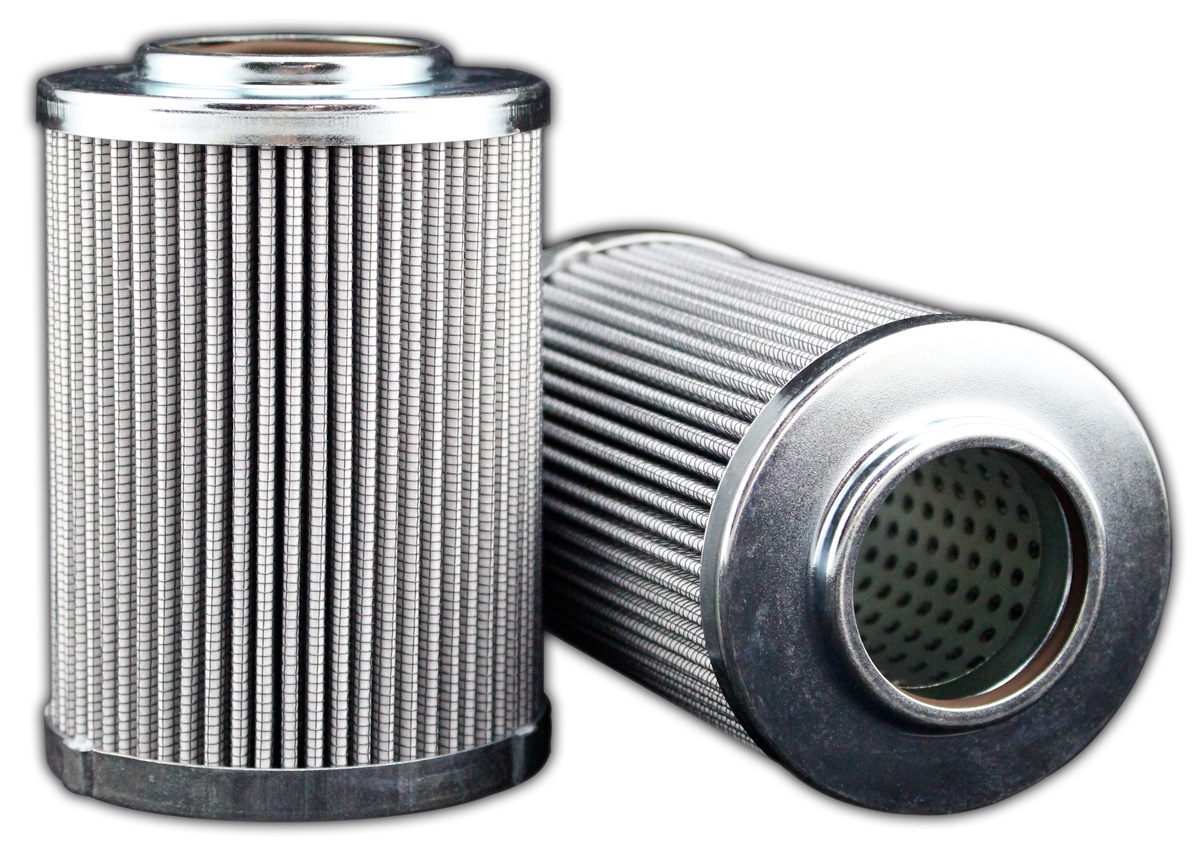

MAIN FILTER INC. MF0335024 Interchange Hydraulic Filter, Glass, 25 Micron Rating, Viton Seal, 4.56 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom O.d. | 3.071" |
| Capacity | 23.71g |
| Collapse Pressure | 305 psi |
| Cracking Pressure | 305 psi |
| Filter Media | Glass |
| Filter Rating | 25 µm |
| Filter Size | 264 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Viton |
| Height | 4 14/25" |
| Max. Operating Temp. | 248°F |
| Max. Operating Temp. | 248 Deg. F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top I.d. | 1.595" |
| Top O.d. | 3.071" |
Product Details:
- Repalcement MP FILTRI
Product Variants
| Product | Model | Filter Media | Top I.d. | Top O.d. | Cracking Pressure | Height | Filter Rating | Bottom O.d. | Flow Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0005345 | Glass | 1.898" | 3.563" | 435 psi | 6.37" | 25 µm | 3.563" | Outside In | - | RFQ
|
 |
MF0005348 | Glass | 1.898" | 3.563" | 435 psi | 12.91" | 25 µm | 3.563" | Outside In | - | RFQ
|
 |
MF0006005 | Glass | 0.476" | 1.378" | 3045 psi | 3.66" | 25 µm | 1.378" | Outside In | - | RFQ
|
 |
MF0006009 | Glass | 0.87" | 1.752" | 3045 psi | 3.58" | 25 µm | 1.752" | Outside In | - | RFQ
|
 |
MF0006013 | Glass | 0.87" | 1.752" | 3045 psi | - | 25 µm | 1.752" | Outside In | - | RFQ
|
 |
MF0006017 | Glass | 1.346" | 2.717" | 3045 psi | 4 13/25" | 25 µm | 2.717" | Outside In | - | RFQ
|
 |
MF0006021 | Glass | 1.343" | 2.717" | 3045 psi | 6.81" | 25 µm | 2.717" | Outside In | - | RFQ
|
