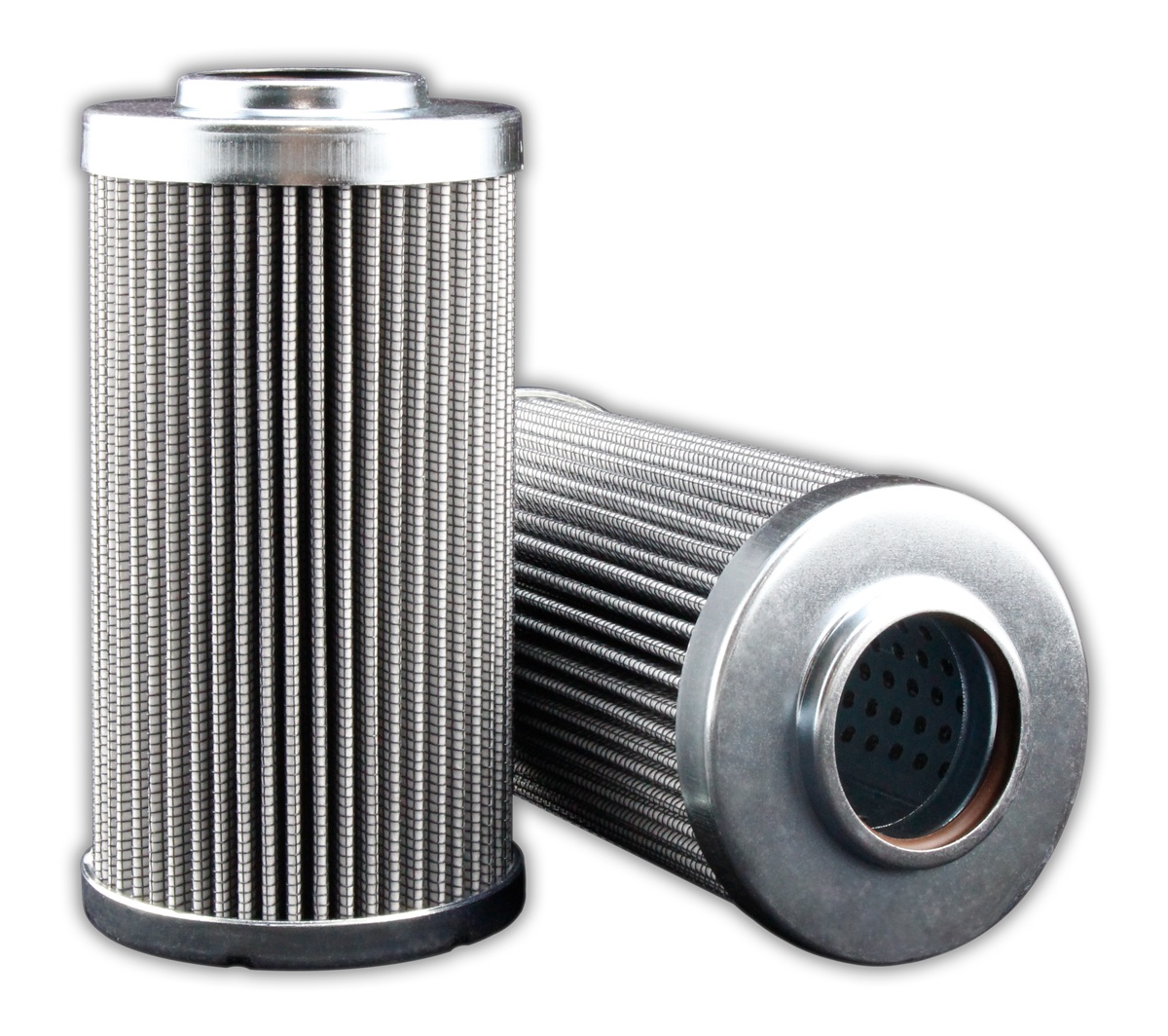

MAIN FILTER INC. MF0128586 Interchange Hydraulic Filter, Glass, 10 Micron Rating, Viton Seal, 5.04 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom O.d. | 2 18/25" |
| Capacity | 24.87g |
| Collapse Pressure | 435 psi |
| Cracking Pressure | 435 psi |
| Filter Media | Glass |
| Filter Rating | 10 µm |
| Filter Size | 254 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Viton |
| Height | 5 1/25" |
| Max. Operating Temp. | 248°F |
| Max. Operating Temp. | 248 Deg. F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top I.d. | 1.35" |
| Top O.d. | 2 18/25" |
Product Details:
- Repalcement BRUENINGHAUS HYDROMATIK
Product Variants
| Product | Model | Top O.d. | Top I.d. | Cracking Pressure | Max. Operating Temp. | Height | Bottom O.d. | Seal Type | Flow Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0004909 | 5 3/25" | 3.35" | 145 psi | 248°F | - | 5 3/25" | Buna N | Outside In | - | RFQ
|
|
MF0004912 | 5 3/25" | 3.35" | 145 psi | 248°F | 11.02" | 5 3/25" | Buna N | Outside In | - | RFQ
|
 |
MF0005973 | 2.87" | 1.075" | 150 psi | 248°F | 9.69" | 2.87" | Viton | Outside In | - | RFQ
|
 |
MF0006095 | 2.874" | 1.535" | 150 psi | 248°F | 14.567" | 2.874" | Viton | Outside In | - | RFQ
|
 |
MF0006189 | 1.77" | 0.77" | 150 psi | 248°F | 8.03" | 1.77" | Viton | Outside In | - | RFQ
|
|
MF0007480 | 2.874" | 1.535" | 150 psi | 248°F | - | 2.874" | Viton | Outside In | - | RFQ
|
 |
MF0025850 | 5.98" | 3 1/2" | 435 psi | 248°F | - | 5.98" | Buna N | Inside Out | - | RFQ
|
