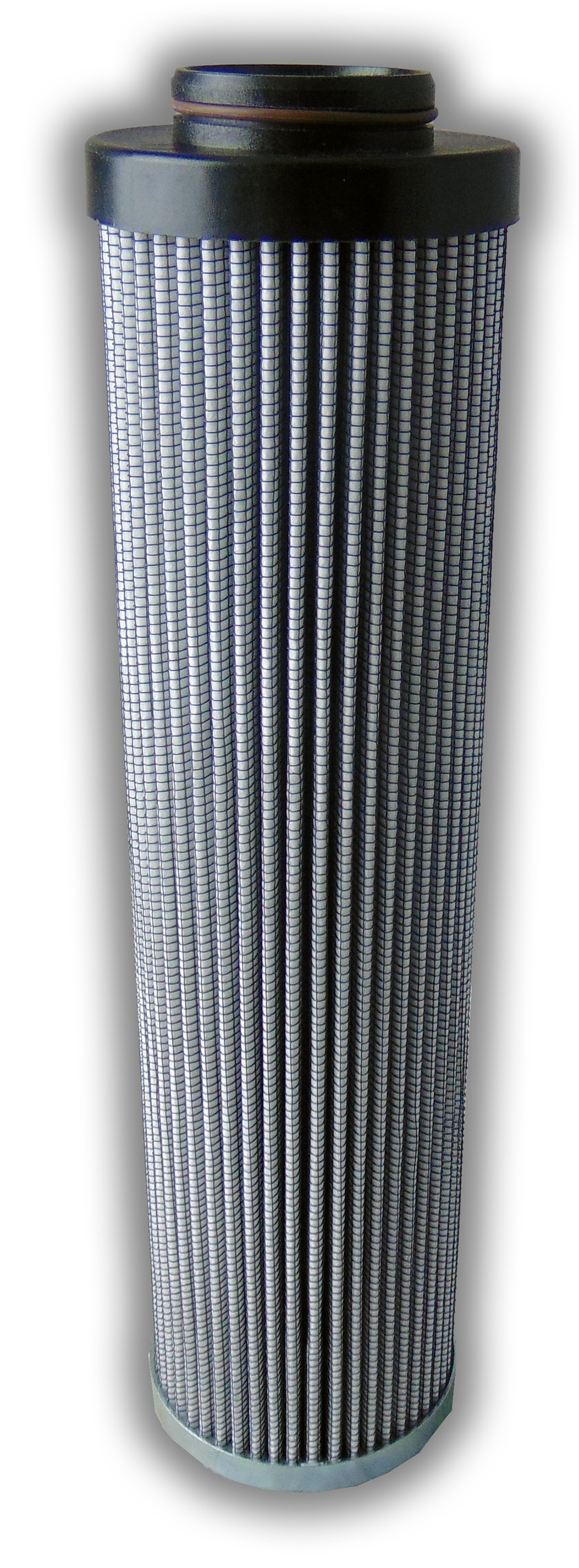

MAIN FILTER INC. MF0063232 R531G10 Interchange Hydraulic Filter, Glass, 10 Micron Rating, Viton Seal, 9.56 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom Inside Dia. | 1.433" |
| Bottom Outside Dia. | 2.362" |
| Capacity | 37.39g |
| Collapse Pressure | 145 psi |
| Cracking Pressure | 145 psi |
| Filter Media | Glass |
| Filter Rating | 10 µm |
| Filter Size | 382 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL, HM, HV, HH |
| Gasket Material | Viton |
| Height | 9 14/25" |
| Max. Operating Temp. | 248 Deg. F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top Inside Dia. | 1.161" |
| Top Outside Dia. | 2.362" |
Product Details:
- Repalcement FILTREC R531G10
Product Variants
| Product | Model | Filter Media | Cracking Pressure | Height | Flow Direction | Capacity | Filter Size | Collapse Pressure | Fluid Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0006130 | Glass | 232 psi | 6.57" | Outside In | 23.43g | 239 sq. in. | 232 psi | HL, HM, HV, HH | - | RFQ
|
 |
MF0006156 | Glass | 145 psi | 5.27" | Outside In | 19.2g | 196 sq. in. | - | HL, HM, HV, HH | - | RFQ
|
 |
MF0006177 | Glass | 232 psi | - | Outside In | 16.89g | 173 sq. in. | - | HL, HM, HV, HH | - | RFQ
|
 |
MF0006184 | Glass | 435 psi | 4.05" | Outside In | 8.29g | 85 sq. in. | 435 psi | HL, HM, HV, HH | - | RFQ
|
 |
MF0006195 | Glass | 435 psi | 5.66" | Outside In | 26.31g | 269 sq. in. | 435 psi | HL, HM, HV, HH | - | RFQ
|
 |
MF0006197 | Glass | 435 psi | 13.11" | Outside In | 63.43g | 648 sq. in. | 435 psi | HL, HM, HV, HH | - | RFQ
|
 |
MF0006205 | Glass | 435 psi | - | Outside In | 35.81g | 366 sq. in. | - | HL, HM, HV, HH | - | RFQ
|
