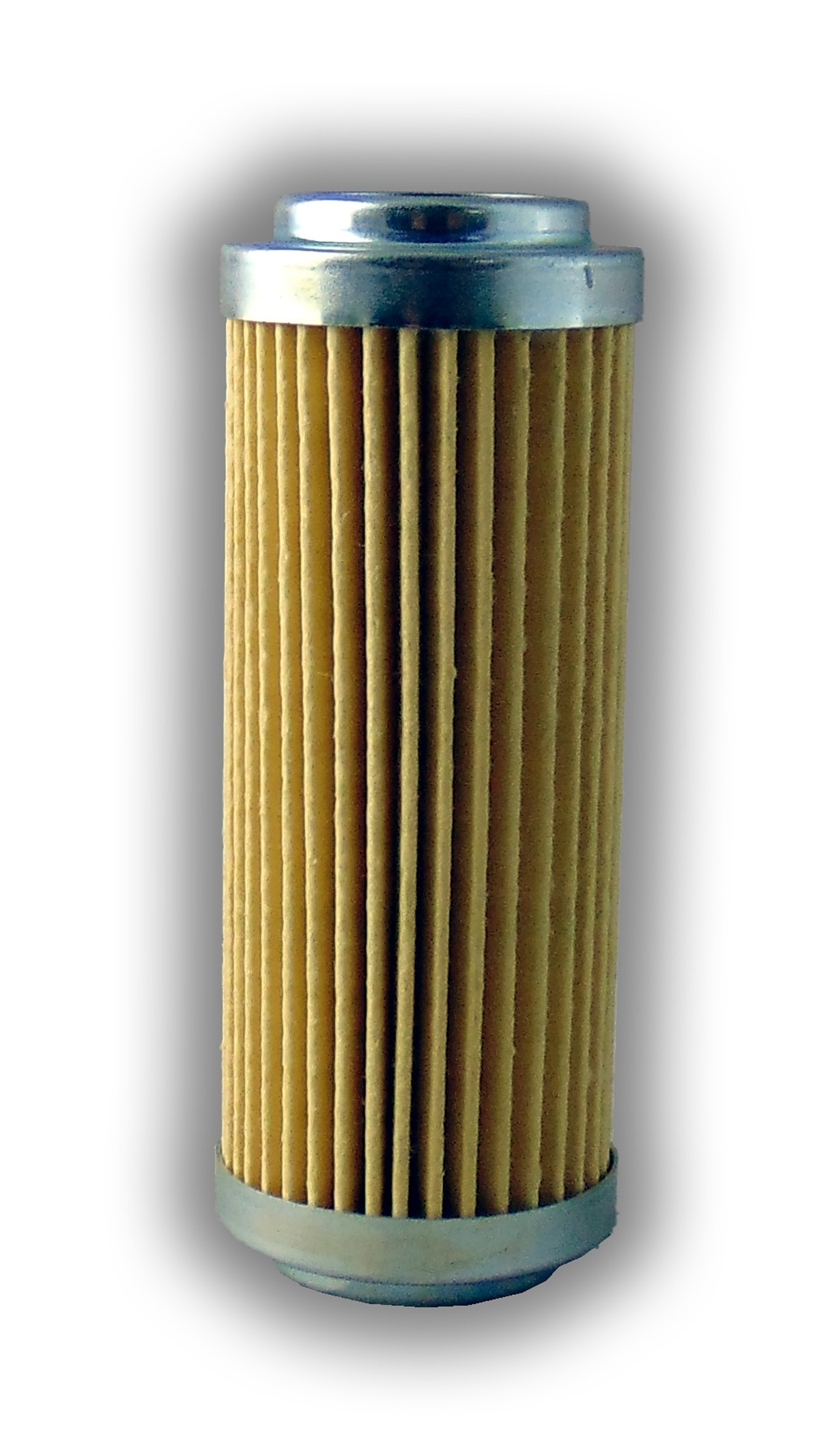

MAIN FILTER INC. MF0063183 R520C10V Interchange Hydraulic Filter, Cellulose, 10 Micron, Viton Seal, 4.64 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom I.d. | 1.004" |
| Bottom O.d. | 1.772" |
| Capacity | 3.42g |
| Cracking Pressure | 363 psi |
| Filter Media | Cellulose |
| Filter Rating | 10 µm |
| Filter Size | 85 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Viton |
| Height | 4 16/25" |
| Max. Operating Temp. | 248°F |
| Max. Operating Temp. | 248 Deg. F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top I.d. | 1.004" |
| Top O.d. | 1.772" |
Product Details:
- Repalcement FILTREC R520C10V
Product Variants
| Product | Model | Top O.d. | Filter Media | Cracking Pressure | Top I.d. | Height | Filter Rating | Bottom O.d. | Seal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0062259 | 2.047" | Cellulose | 44 psi | 0.965" | 2.83" | 25 µm | 2.047" | Viton | - | RFQ
|
 |
MF0062262 | 2.047" | Glass | - | 0.965" | 2.83" | 5 µm | 2.047" | Viton | - | RFQ
|
 |
MF0062264 | 2.047" | Glass | 145 psi | 0.965" | 2.83" | 10 µm | 2.047" | Viton | - | RFQ
|
 |
MF0062267 | 2.047" | Wire Mesh | 145 psi | 0.965" | 2.83" | 125 µm | 2.047" | Viton | - | RFQ
|
 |
MF0062271 | 2.047" | Wire Mesh | 145 psi | 0.965" | 2.83" | 60 µm | 2.047" | Viton | - | RFQ
|
 |
MF0062273 | 2.756" | Cellulose | 44 psi | 1.161" | 3.34" | 10 µm | 2.756" | Viton | - | RFQ
|
 |
MF0062275 | 2.756" | Cellulose | 44 psi | 1.161" | 3.34" | 25 µm | 2.756" | - | - | RFQ
|
