MAIN FILTER INC. MF0034508 Hydraulic Filter, Wire Mesh, 25 Micron Rating, Buna Seal, 9.09 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom Inside Dia. | 2 12/25" |
| Bottom Outside Dia. | 4.016" |
| Collapse Pressure | 435 psi |
| Cracking Pressure | 435 psi |
| Filter Media | Wire Mesh |
| Filter Rating | 25 µm |
| Filter Size | 430 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL, HM, HV, HH |
| Gasket Material | Buna N |
| Height | 9.09" |
| Max. Operating Temp. | 248°F |
| Max. Operating Temp. | 248 Deg. F |
| Min. Operating Temp. | -13°F |
| Seal Type | Buna N |
| Top Inside Dia. | 2 12/25" |
| Top Outside Dia. | 4.016" |
Product Details:
- Repalcement FILTER MART
Product Variants
| Product | Model | Cracking Pressure | Height | Flow Direction | Filter Size | Collapse Pressure | Filter Media | Fluid Type | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
MF0008629 | 145 psi | 7 12/25" | Inside Out | 226 sq. in. | - | Wire Mesh | HL, HM, HV, HH | -13°F | - | RFQ
|
![]() |
MF0027777 | 73 psi | 9.17" | Outside In | 633 sq. in. | - | Wire Mesh | HL, HM, HV, HH | -13°F | - | RFQ
|
![]() |
MF0034816 | 145 psi | - | Inside Out | 165 sq. in. | - | Wire Mesh | HL, HM, HV, HH | -13°F | - | RFQ
|
![]() |
MF0034916 | - | - | - | - | - | Wire Mesh | - | - | - | RFQ
|
![]() |
MF0096183 | 73 psi | 9.17" | Outside In | 633 sq. in. | - | Wire Mesh | HL, HM, HV, HH | -13°F | - | RFQ
|
![]() |
MF0096186 | - | 18.89" | - | - | - | Wire Mesh | - | - | - | RFQ
|
![]() |

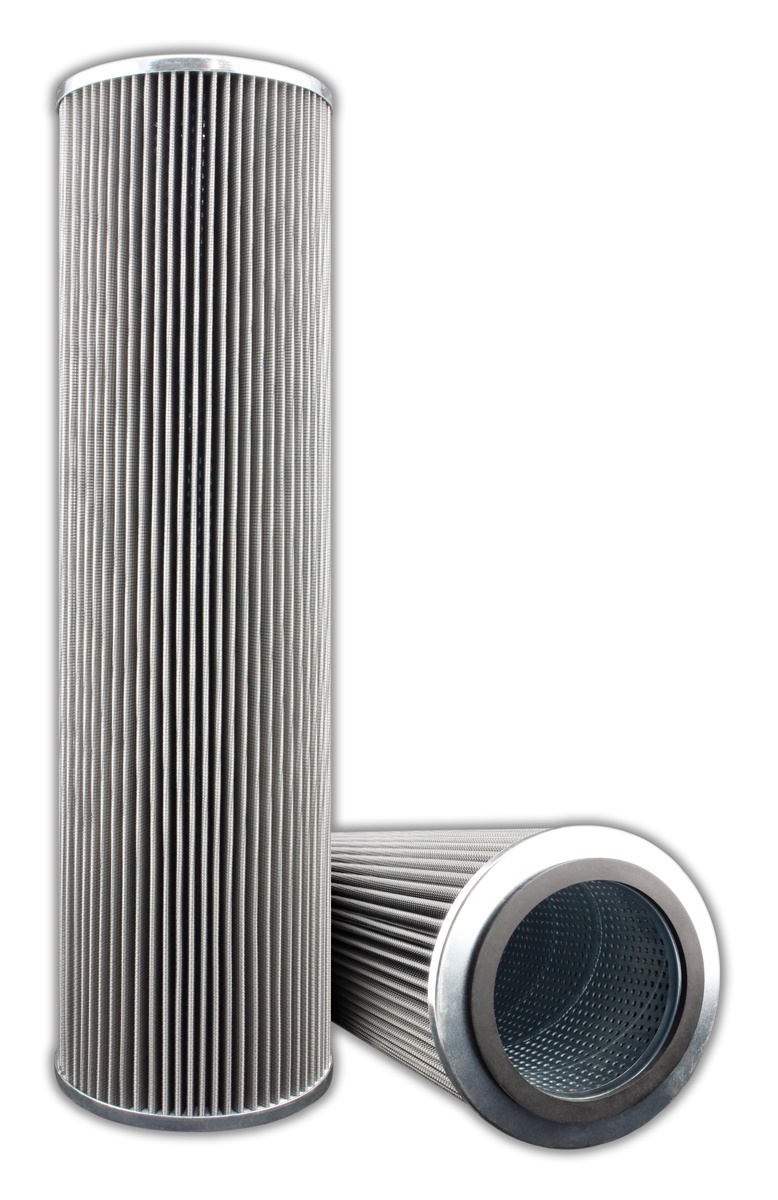

MF0116393 | - | - | - | - | - | Wire Mesh | - | - | - | RFQ
|
