MAIN FILTER INC. MF0004429 Hydraulic Filter, Cellulose, 3 Micron Rating, Viton Seal, 7.63 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom I.d. | 1.898" |
| Bottom O.d. | 3.032" |
| Capacity | 14.63g |
| Collapse Pressure | 435 psi |
| Cracking Pressure | 435 psi |
| Filter Media | Cellulose |
| Filter Rating | 3 µm |
| Filter Size | 366 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Viton |
| Max. Operating Temp. | 248 Deg. F |
| Max. Operating Temp. | 248°F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top O.d. | 3.032" |
Product Details:
- Repalcement FILTER MART
Product Variants
| Product | Model | Top O.d. | Cracking Pressure | Top I.d. | Height | Bottom O.d. | Filter Size | Flow Direction | Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

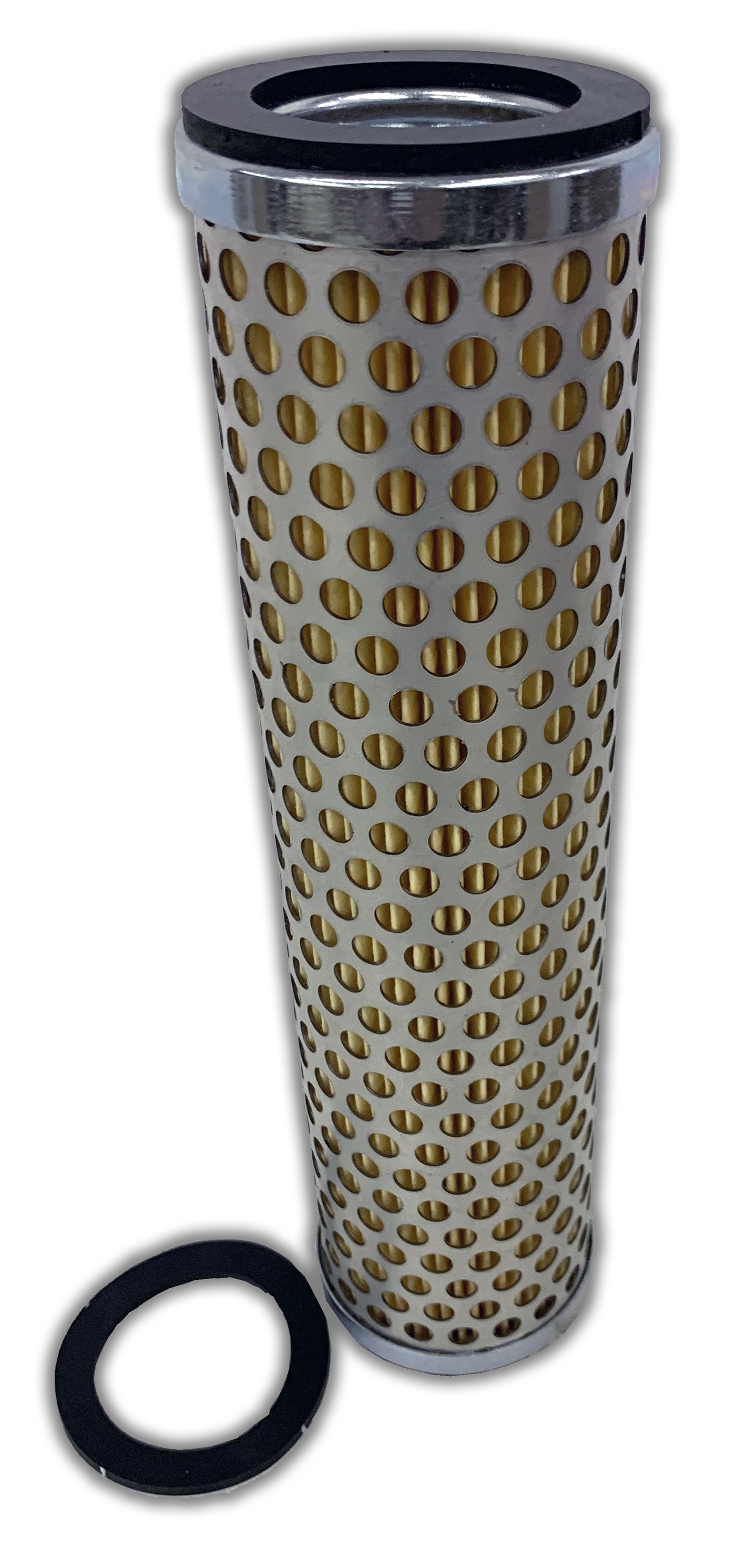

MF0026166 | 2 13/25" | 145 psi | 1.496" | 9 13/25" | 2 13/25" | 296 sq. in. | Outside In | 11.85g | - | RFQ
|
 |
MF0026167 | 2 13/25" | 145 psi | 1.496" | - | 2 13/25" | 296 sq. in. | Outside In | 11.85g | - | RFQ
|
 |

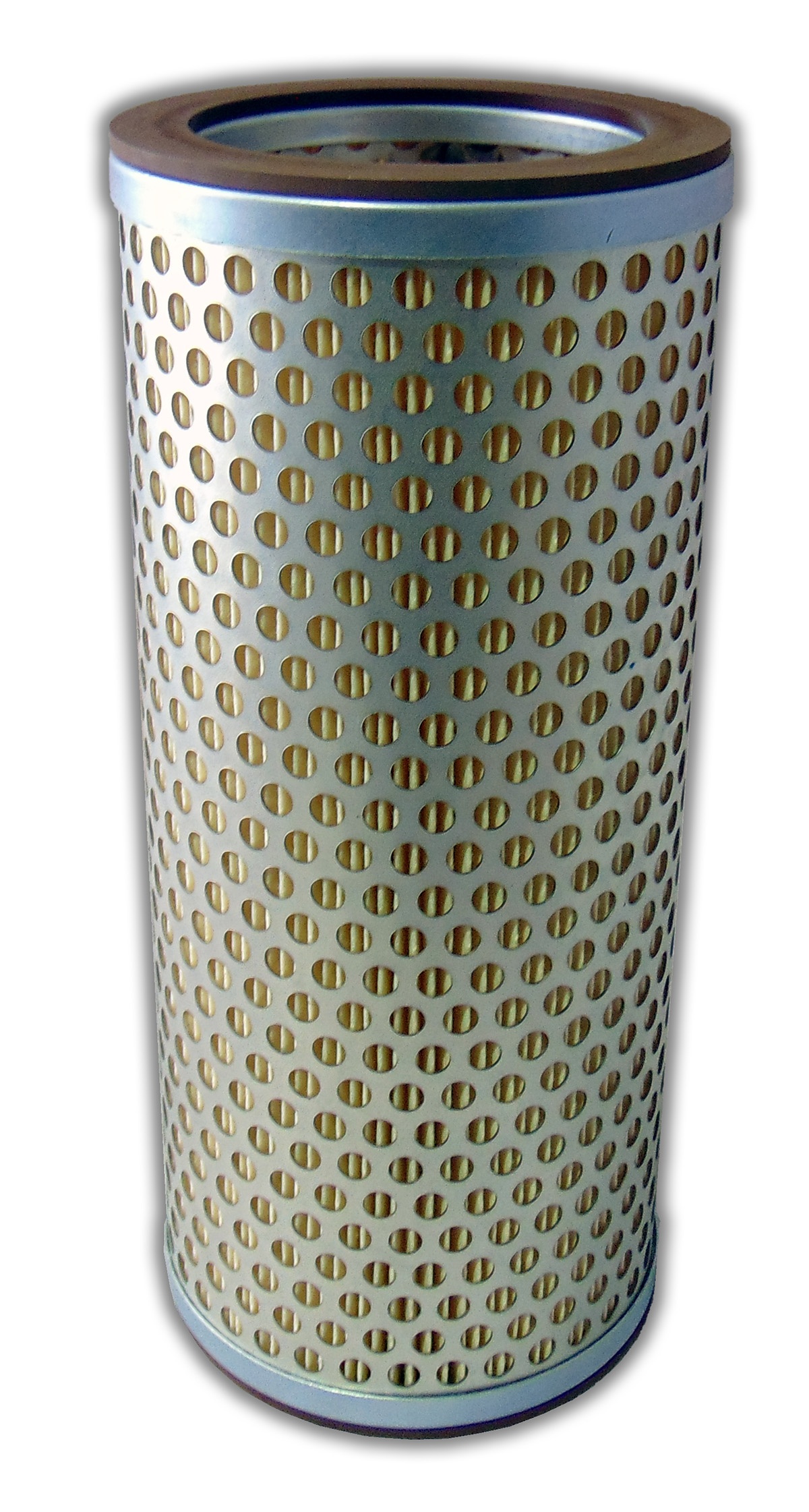

MF0026190 | 4.252" | 145 psi | 3.11" | 9 19/25" | 4.252" | 741 sq. in. | Outside In | - | - | RFQ
|
 |
MF0035948 | 3.661" | - | 1.732" | 9.17" | 3.661" | - | - | - | - | RFQ
|
 |

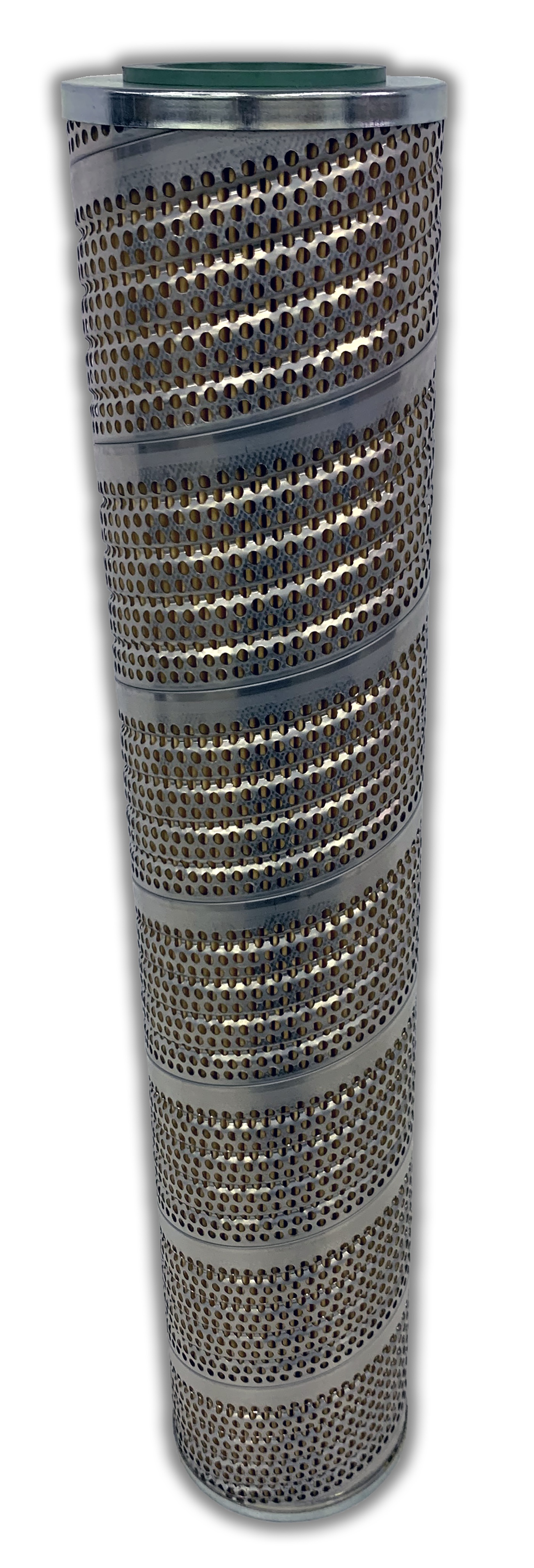

MF0035952 | 3.661" | 73 psi | 1.732" | 18.89" | 3.661" | 1176 sq. in. | Outside In | 47.02g | - | RFQ
|
|
MF0066901 | 2 13/25" | 145 psi | 1.496" | - | 2 13/25" | 296 sq. in. | Outside In | 11.85g | - | RFQ
|
|
MF0094259 | 2 13/25" | 145 psi | 1.496" | 9 13/25" | 2 13/25" | 296 sq. in. | Outside In | 11.85g | - | RFQ
|
