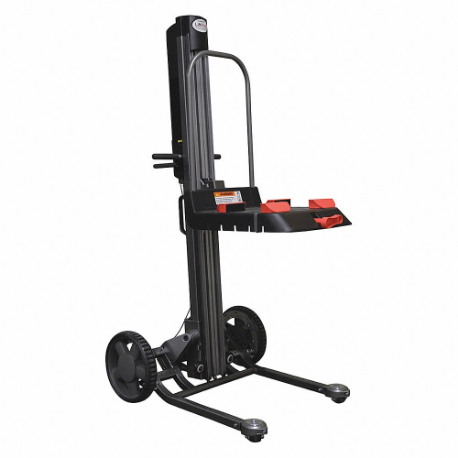

MAGLINER LPS6014NA1 Powered-Lift/Manual-Push Platform Lift Trucks, 350 Lb Load Capacity
Get it by Wednesday, Dec 24
10.00% off
€5,152.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Platform |
| Assembled | Yes |
| Axle-mounted Wheel Dia. | 13" |
| Axle-mounted Wheel Type | Solid |
| Axle-mounted Wheel/tread Material | Rubber |
| Base Inside Width | 10 7/8" |
| Base Material | Steel |
| Base Outside Width | 13 7/8" |
| Base Style | Fixed |
| Battery Voltage | DC |
| Brake Type | Dual Disk Brakes |
| Caster Dia. | 2" |
| Caster Type | Tread On Core |
| Caster Wheel Bearings | Ball Bearing |
| Caster Wheel Dia. | 2" |
| Caster Wheel Material, Tread Material | Rubber |
| Caster Wheel Type | Tread On Core |
| Caster Wheel Width | 1 3/4" |
| Color | Black |
| Features | Minimizes Bending And Stretching, Provides Variable Height Work Surface, Electric Screw Drive Lift System Provides Smooth, Quiet Operation, Quick Change Adapter Allows Easy Changes Between Attachments |
| For Surface Type | Concrete, Wood |
| Frame Finish | Powder Coated |
| Frame Material | Plastic, Steel |
| Frame Type | Flat Back |
| Handle Material | Plastic, Steel |
| Handle Type | Handlebar |
| Hub Position | Offset |
| Includes | Wall Charger |
| Lift Control | Hand Lever |
| Lift Mechanism | Mechanical |
| Load Capacity | 350 lbs. |
| Load Center | 9" |
| Max. Lifting Height | 60" |
| Min. Lifting Height | 5" |
| Non-marking Axle-mounted Wheels | Yes |
| Operation | Powered, Manual |
| Overall Height With Platform Lowered | 60" |
| Overall Height With Platform Raised | 72" |
| Overall Length | 36" |
| Overall Raised Height | 72" |
| Overall Width | 22" |
| Platform Length | 18" to 28" |
| Platform Material | Plastic |
| Platform Width | 18" |
| Recommended Lift Mechanism | Mechanical |
| Stowed Height | 72" |
| Stowed Length | 24" |
| Weight | 108 lbs. |
| Wheel Configuration | (2) Swivel, (2) Axle-Mounted |
Shipping Info:
| Ship weight (kg) | 63 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Overall Width | Base Inside Width | Base Outside Width | Max. Lifting Height | Overall Height With Platform Lowered | Overall Raised Height | Stowed Height | Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| LPS4825NA1 | 33" | 21 7/8" | 24 7/8" | 48" | 48" | 60" | 60" | 350 lbs. | €5,045.19 | |
| LPS6025NA1 | 33" | 21 7/8" | 24 7/8" | 60" | 60" | 72" | 72" | 350 lbs. | €6,161.68 | |
| LPS4814NA1 | 22" | 10 7/8" | 13 7/8" | 48" | 48" | 60" | 60" | 350 lbs. | €5,466.99 |
