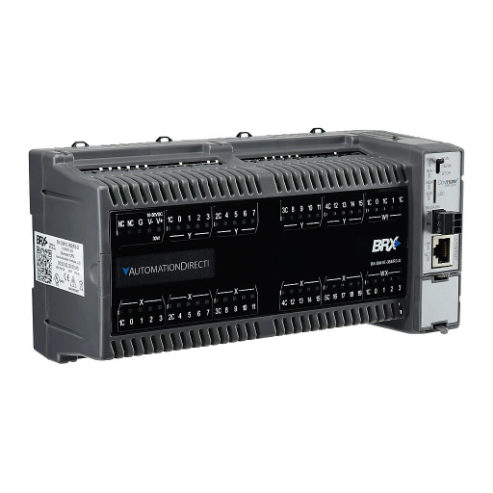

BRX BX-DM1E-36ER3-D Plc, 12-24 VDC, Ethernet And Serial Ports, Microsd Card Slot, 20-Point, AC/DC
Get it by Tuesday, Sep 1
€986.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Logic Controller |
| Analog Input Signal Type | Current/Voltage |
| Connection Type | (1) Ethernet 10, 100BASE-T (RJ45), (1) Rs-232, Rs-485 (3-PIN Terminal) |
| Discrete Input Type | Sinking, Sourcing |
| Discrete Output Type | Relay |
| Duration Measurement | Up To (3) Single Input (Edge) Timers |
| External Power Requirement | 12-24V DC |
| Frequency Response | 250 kHz |
| Includes | BX-RTB03S Terminal Block And D0-MC-BAT Battery |
| Input Amps Signal | 4-20 MA, +/-20 MA |
| Interval Measurement | Up To 3 Single Input Edge Timers, Up To 3 Dual Input Dual Edge Timers |
| Ladder Memory | 64k Words |
| Max. Expansion Modules Allowed | 8 |
| No. Of High Speed Capable Input Points | 10 |
| No. Of Isolated Discrete Input Commons | 5 |
| No. Of Non Isolated Analog Input Commons | 1 |
| No. Of Non-isolated Analog Output Commons | 3 |
| Output Amps Signal | 4-20/-/+20mA |
| Output Resolution | 16 Bit |
| Output Voltage Signal Range | 0-5V DC, 0-10V DC, +/-5V DC and +/-10V DC |
| Port Protocols | Mqtt Client Mqtts Client Ftp Client Do-More Protocol Modbus Rtu Master, Slave Modbus Tcp Tcp, IP Ethernet, IP Explicit Messaging Scanner, Adapter Ethernet Remote I, O K-Sequence Slave Progra mming And Monitoring |
| Port Speed(s) | 10 Mbps, 100 Mbps Up to 115.2k baud |
| Product Datasheet | automation-direct-bx-dm1e-36er3-d.pdf |
| Programming Language | Ladder |
| Relay Configuration | Form A (SPST) Relays |
| Total Memory | 192k Words |
| Voltage Type | AC/DC |
Shipping Info:
| Ship weight (kg) | 0.61 |
| HS code | 853710 |
| Country of Origin | US |
