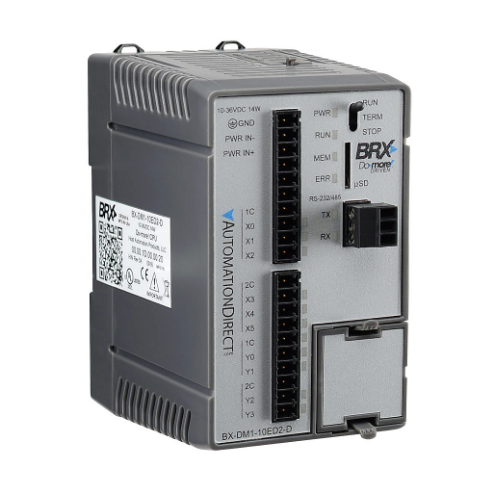

BRX BX-DM1-10ED2-D Plc, 12-24 VDC, Serial Port, Microsd Card Slot, 6-Point, AC/DC
Get it by Tuesday, Sep 1
€565.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Logic Controller |
| Axis Profiles | Relative, Absolute Positioning Velocity Mode Trapezoid S-Curve Electronic Gearing Camming Following Homing Jogging Linear Interpolation Online Edit X Y Trend View |
| Connection Type | (1) RS-232, RS-485 (3-Pin Terminal) |
| Discrete Input Type | Sinking, Sourcing |
| Discrete Output Type | Sourcing |
| Duration Measurement | Up To (3) Single Input (Edge) Timers |
| Frequency Response | 250 kHz |
| Includes | BX-RTB03S Terminal Block And D0-MC-BAT Battery |
| Interval Measurement | Up To 3 Single Input Edge Timers, Up To 3 Dual Input Dual Edge Timers |
| Ladder Memory | 64k Words |
| No. Of Points Per Discrete Input Common | 3 |
| Output Pulse Mode | Up To (4) Virtual Axes Up To (2) Pto Linear Step, Direction Outputs Up To (1) Pto Rotary Clockwise, Counter-Clockwise (Cw, Ccw) Output Up To (1) Pto Quadrature (A And B) Output Up To (2) Pwm Pulse Width Modulation Outputs |
| Port Protocols | Do-More Protocol Modbus Rtu Master, Slave Ascii In, Out K-Sequence Slave Progra mming And Monitoring |
| Port Speed(s) | Up to 115.2k baud |
| Product Datasheet | automation-direct-bx-dm1-10ed2-d.pdf |
| Programming Language | Ladder |
| Table-driven Input (s) | Up To Four Programmable Limit Switches, Up To Four Preset Tables |
| Total Memory | 192k Words |
| Voltage Type | AC/DC |
Shipping Info:
| Ship weight (kg) | 0.23 |
| HS code | 853710 |
| Country of Origin | US |
