MAG-MATE PNL0800 LiFt.ing Magnet, 800 lbs Capacity, 7-7/8 Inch Overall Length
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment
Delivery
Product Specifications:
| Item | Lifting Magnet |
| Activation Mechanism | On Handle, Off Handle |
| Bail Inside Length | 2 3/8" |
| Bail Inside Width | 1 3/4" |
| Bail Opening Height | 2-3/8" |
| Bail Opening Height | 2 3/8" |
| Bail Opening Width | 1 3/4" |
| Bail Opening Width | 1-3/4" |
| Bail Thickness | 1/2" |
| Features | Lifts Flat And Round Loads |
| Footnotes | Max. Rated Capacities Based On Clean, Polished Steel And Dependant On Material Thickness And Size |
| Handle Length | 8" |
| Height | 3 7/8" |
| Includes | Lock-On, Lock-Off Handle |
| Magnet Height | 3 7/8" |
| Magnet Length | 6 3/8" |
| Magnet Material | Neodymium |
| Magnet Width | 3 5/8" |
| Material | Neodymium |
| Max. Heat Resistant Temp. | 180 Degrees F |
| Max. Heat Resistant Temp. | 180°F |
| Max. Rated Flat Capacity | 800 lbs. |
| Max. Rated Flat Capacity | 800 lb. |
| Maximum Flat Load Capacity | 800 lbs. |
| Maximum Load Capacity | 800 lbs. |
| Maximum Operating Temperature | 180°F |
| Maximum Round Load Capacity | 400 lbs. |
| Min. Material Thickness For Activation | 1/4" |
| Min. Thickness For Max. Load Capacity | 3" |
| Minimum Operating Temperature | -10°F |
| Minimum Thickness For Activation | 1/4" |
| Number Of Poles | 2 |
| Overall Height | 8 7/8" |
| Overall Length | 7 7/8" |
| Overall Width | 3 5/8" |
| Required Material Thickness For Max Rated Capacity | 3" |
| Standards | Asme B30.20 |
| Width | 3 5/8" |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 28.58 |
| Ship width (cm) | 25.4 |
| HS code | 8505110000 |
| Country of Origin | CN |
Product Details:
Mag-Mate PNL0800 permanent lifting magnet is designed for lifting heavy loads with both flat and round surfaces.
Features:
- It comes with a locking handle with on / off functionality that prevents damage to the surface of the part being lifted and eliminates the fear of dropping in the case of power failure.
- The locking feature also avoids the handle from being bumped partially 'ON', thereby eliminating the false indication that the magnet is holding safely.
- This 800 lb magnet has a design factor of 3:1 and is suitable for handling steel plates, blocks and containers.
- It is made of Neodymium, offering the strongest magnetic properties and capability to withstand temperatures up to 180 degrees Fahrenheit.
Standards and Approvals:
- ASME B30.20
Frequently Asked Questions:
Q. What is RFID?
A. This lifting magnet features an embedded RFID (Radio Frequency Identification) chip used to identify each unique magnet and its recorded documentation of any maintenance and / or scheduled calibration performed in the past.
Q. What is the design factor?
A. Design factor is defined as the ratio of the ultimate failure strength of a piece of material or equipment to the actual working stress or intended safe load.
Q. How to operate the locking system of this magnet?
A. Pull on the handle to release the lock pin then rotate the handle to the desired position and lift / release the load.
Product Variants
| Product | Model | Max. Rated Flat Capacity | Magnet Length | Magnet Width | Bail Opening Height | Bail Opening Width | Overall Length | Overall Height | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
PNL0250 | 250 lbs. | 3 5/8" | 2 5/8" | 1 3/8" | 1 1/2" | 5" | 6 5/8" | 2 5/8" | €538.23 | |
|
PNL1600 | 1600 lbs. | 9 1/8" | 4 7/8" | 3 1/2" | 2 1/4" | 10 3/4" | 8 7/8" | 4 7/8" | €1,968.92 | |
 |

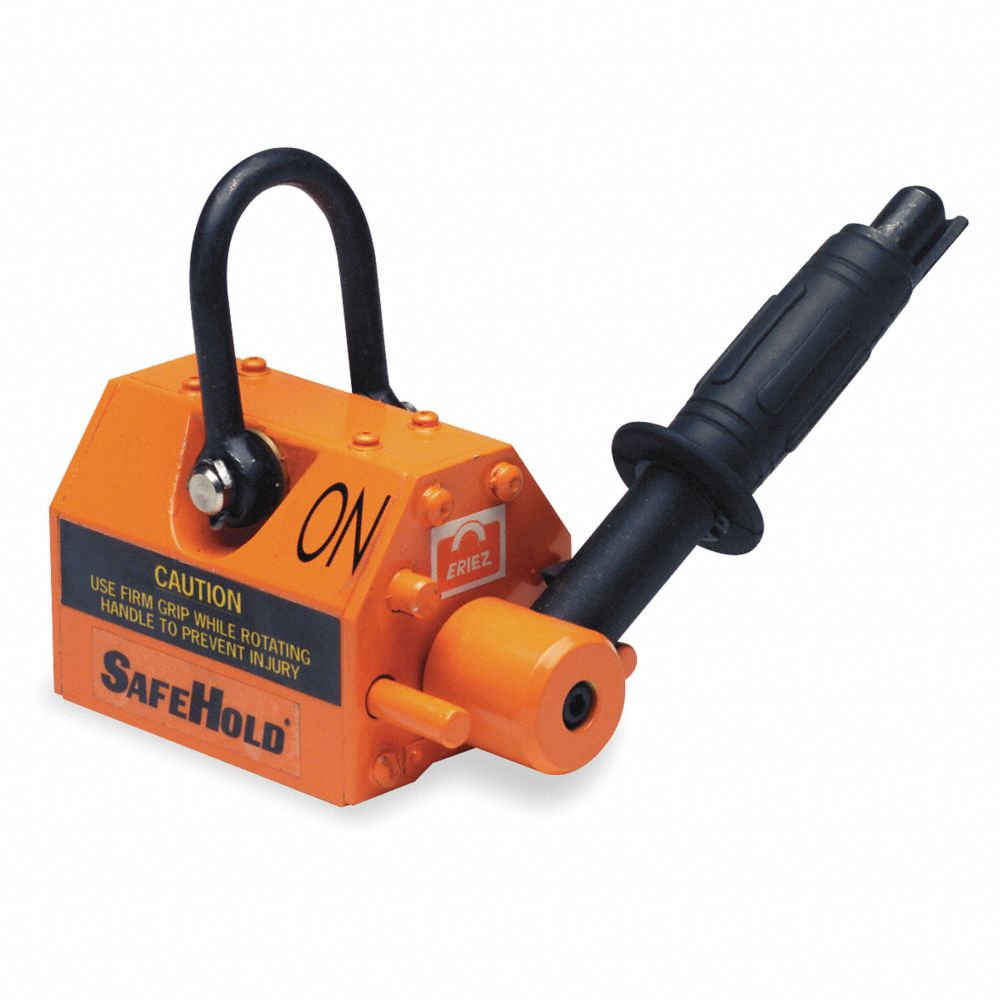

RPL2 | - | - | - | - | - | - | - | - | €463.76 | |
 |

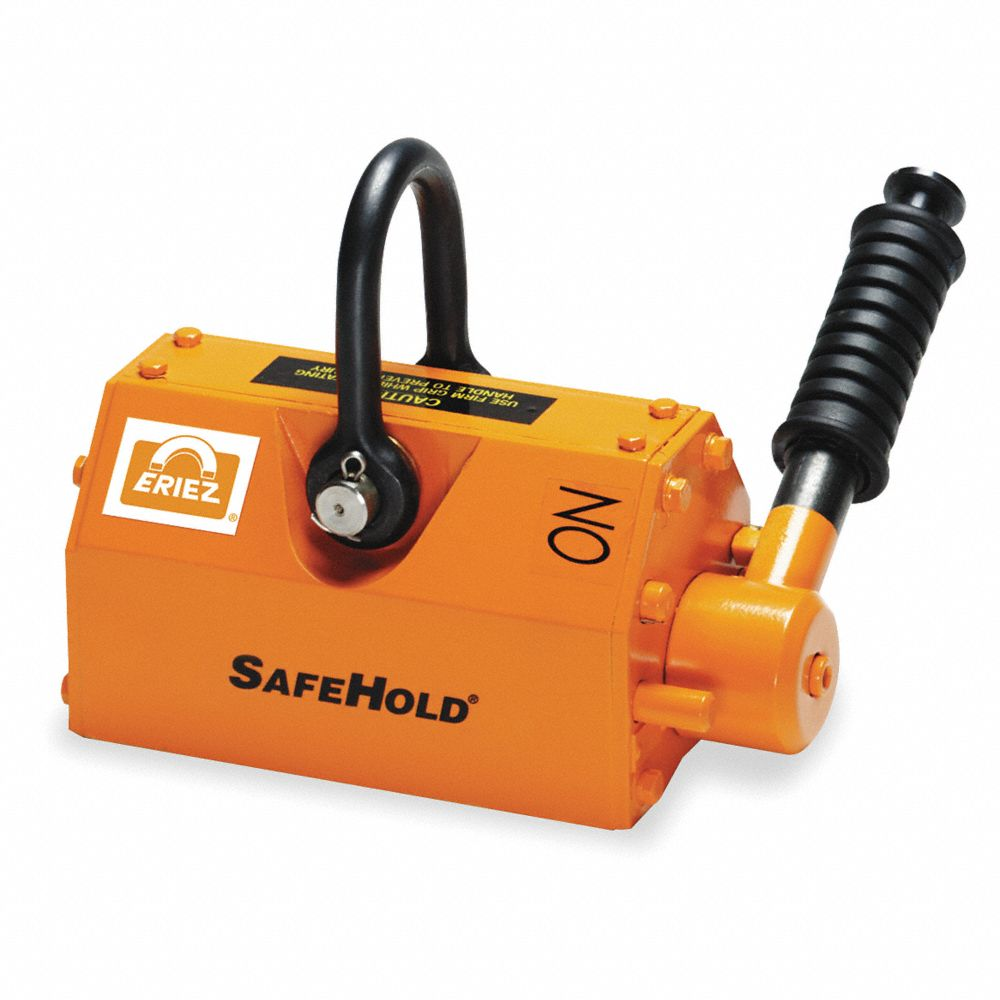

RPL7 | - | - | - | - | - | - | - | - | €1,041.02 | |
 |

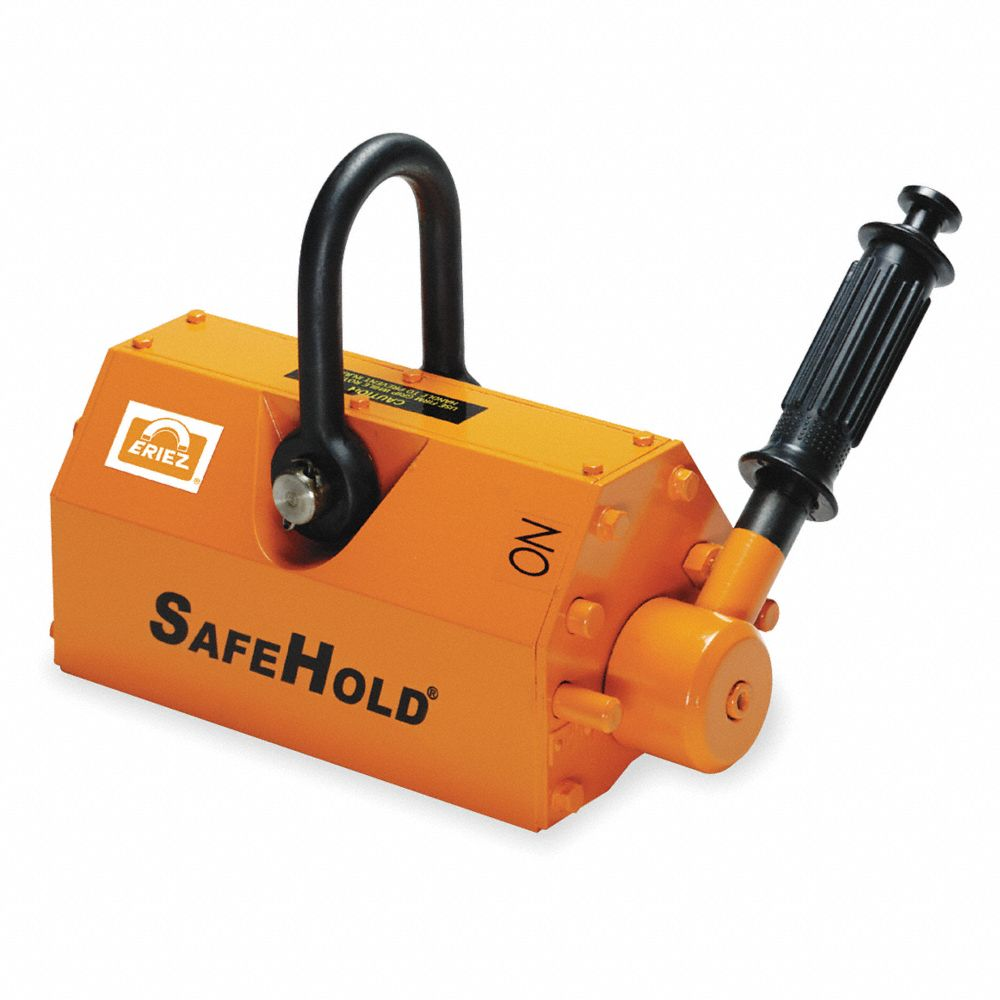

RPL15 | - | - | - | - | - | - | - | - | €1,714.86 | |
 |

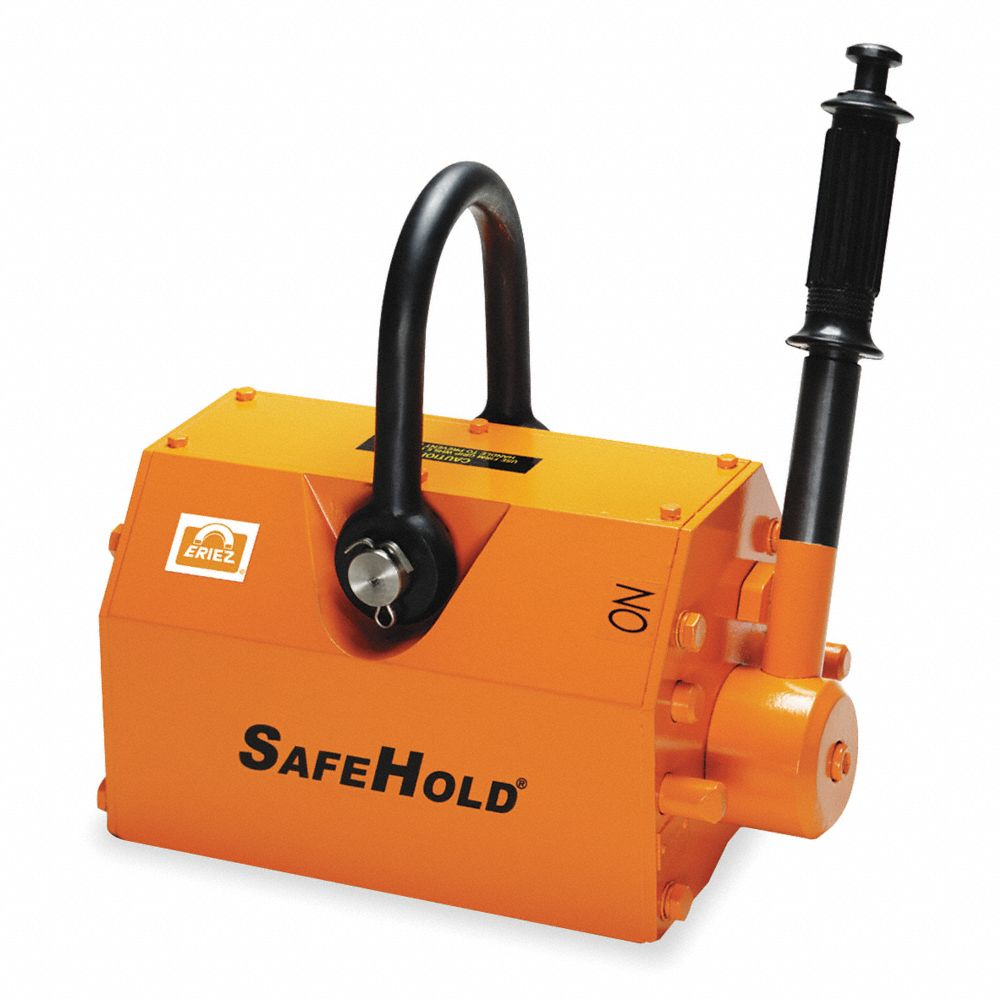

RPL25 | - | - | - | - | - | - | - | - | €3,084.61 |
