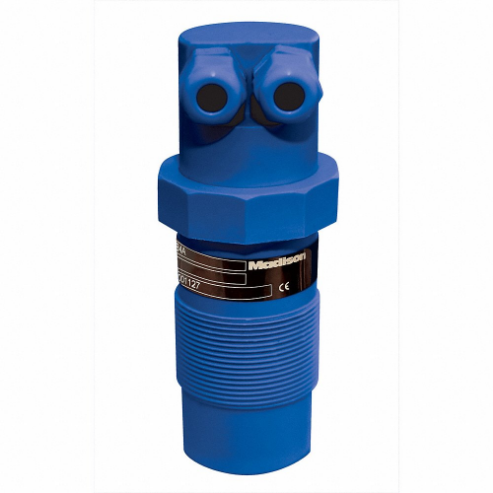

MADISON U5098-D024-019 Ultrasonic Sensor, 2 G Thread, 0.8 ft to 19 ft, 20 to 30 V DC
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,272.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sensor |
| Accuracy | ±0.2% Max of Full Range |
| Antenna Dia. | 2 1/8" |
| Beam Angle | 10° |
| Classification | Ultrasonic |
| Configuration | Push Button |
| Connection | 2" NPT |
| Connection Size | 2" |
| Connection Type | NPT |
| Deadband | 10" |
| Display | None |
| Enclosure Material | Polypropylene |
| Enclosure Rating | IP66 |
| For Media Type | Film-Causing, Solid/Semi-Solid Liquid, Sticky Liquid |
| Gasket Material | Polypropylene |
| Height | 8.425" |
| Input Voltage | 20-30V |
| Material | Polypropylene |
| Max. Media Temperature | 158°F |
| Max. Operating Pressure | 72.5 psi |
| Max. Pressure | 7.25 psi |
| Max. Voltage | 30V DC |
| Media Temperature (minimum) | -22°F |
| Media Temperature Range | -22°F to +158°F |
| Motor Enclosure Design | IP66 |
| Mounting | Threaded |
| Operating Frequency | 55 kHz |
| Operating Temp. Range | -22°F to +158°F |
| Output Signal | 4-20 mA |
| Output Voltage Range | 4-20 mA |
| Output Wire Configuration | 4 Wire |
| Overall Height | 8 2/5" |
| Range | 19 ft. |
| Resolution | 1/25" |
| Spatial Resolution | 1/25" |
| Standards | Ce Certified |
| Tank Seal Material | Buna N |
Shipping Info:
| Ship weight (kg) | 6.3 |
| Ship height (cm) | 21.34 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | IT |
