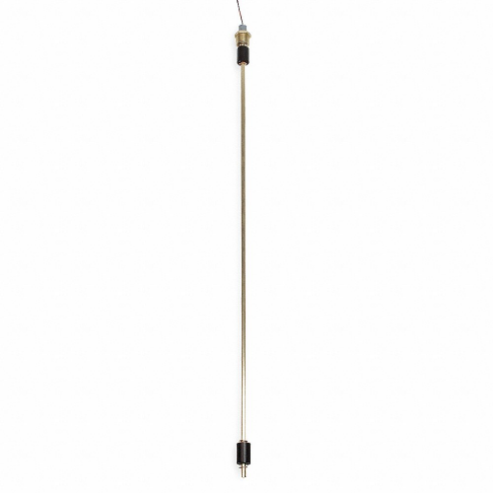

MADISON M4168-3 Drum Level Switch 3/4 Inch Npt Selectable Bunan
Item: AC4HVWModel: M4168-3Cross Ref: 2ZY51
7 In Stock
Ships within 2 days via
10.00% off
€201.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Drum Liquid Level Switch |
| Body Material | Brass |
| Components Included | Float |
| Conduit Size | 3/4" |
| Contact Form | SPST |
| Current Rating | 0.28A |
| Display Qty | 1 |
| Electrical Connection Type | Lead Wires |
| Float Dia. | 0.9" |
| Float Length | 1 1/4" |
| Float Length | 1.25" |
| Float Material | Buna N |
| Float Specific Gravity | 0.5 |
| Float Specific Gravity | 0.50 |
| Height | 32" |
| Max. Current | 0.28A |
| Max. Pressure | 150 psi |
| Max. Voltage | 240V |
| Minimum Media Specific Gravity | 0.63 xg |
| Mounting | Vertical Open Tank |
| Mounting Position | Vertical |
| Mounting Style | Open Tank Vertical |
| Operating Temp. | 221°F |
| Operating Temperature - Maximum | 221°F |
| Overall Height | 32" |
| Overall Length | 32.94" |
| Product Type | Alternator Closed Liquid Level Switch |
| Proof Pressure | 150 psi |
| Stem Length | 32" |
| Stem Material | Brass |
| Stem Thread Size | 3/4" , NPT |
| Switch Action | Select |
| Switch Function | Select |
| Tank Connection Size | 3/4" NPT |
| Type | High And Low Levels |
| Voltage Rating - Maximum | 240V |
Shipping Info:
| Ship weight (kg) | 1.44 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 83.67 |
| Ship width (cm) | 9.14 |
| HS code | 9026102080 |
| Country of Origin | US |
Product Variants
| Product | Model | Float Material | Float Length | Body Material | Operating Temp. | Stem Material | Float Specific Gravity | Switch Function | Contact Form | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M4169-3 | Stainless Steel | 1.59" | Stainless Steel | 302°F | Stainless Steel | 0.73 | Select | SPST | €316.70 |
