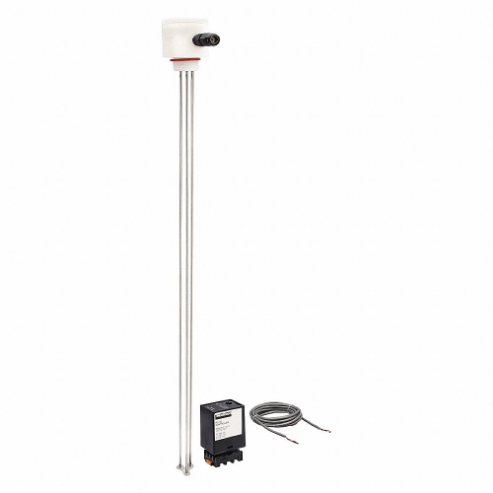

MADISON M3784-110 Conductivity Switch 1 Inch Npt Connection
Item: AE3LRKModel: M3784-110Cross Ref: 5DYD4
7 In Stock
Ships within 2 days via
10.00% off
€568.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Float Switch |
| Accuracy | Not Applicable |
| Body Material | Polypropylene |
| Connection Size | 1" |
| Connection Type | NPT |
| Cord Length | 2 ft. |
| Enclosure Rating | Not Rated |
| Fitting | 1" NPT |
| Float Diameter | Not Applicable |
| Float Length | Not Applicable |
| Float Material | Stainless Steel |
| For Media Type | Chemicals, Nonhazardous Liquids |
| Height | 28 1/7" |
| Housing Material | Polypropylene |
| Lead | 2 |
| Length | 28 1/5" |
| Max. Media Temperature | 221°F |
| Max. Operating Pressure | 30 psi |
| Max. Pressure | 30 psi |
| Max. Temp. | 221°F |
| Media Type | Chemicals, Nonhazardous Liquids |
| Mounting Orientation | Vertical |
| Mounts | Tethered |
| No. Of Digital Outputs | 1 |
| Number Of Outputs - Analog | Not Applicable |
| Number Of Outputs - Digital | 1 |
| Operation | Conductivity Switch |
| Output Voltage Range | Not Applicable |
| Output Wire Configuration | Not Applicable |
| Overall Length | 28.2" |
| Probe Material | Stainless Steel |
| Probe Type | Rod |
| Process Connection | 1" |
| Process Connection Type | NPT |
| Product Type | Float Switch |
| Range | 25 4/5" |
| Stem Length | 25 3/4" |
| Stem Material | Stainless Steel |
| Voltage | 120V AC |
| Width | 2 1/4" |
| Wire Gauge | 18 AWG to 22 AWG |
| Wire Lead | 2 |
Shipping Info:
| Ship weight (kg) | 1.25 |
| Ship height (cm) | 11.68 |
| Ship length (cm) | 71.5 |
| Ship width (cm) | 5.72 |
| HS code | 9026102080 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Cord Length | Float Material | Housing Material | Float Length | Connection Type | Height | Mounts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M3850 | 9V DC | Cordless | Polypropylene | Stainless Steel | 7/8" | UNF | 2" | Nut, Washer | - | RFQ
|
