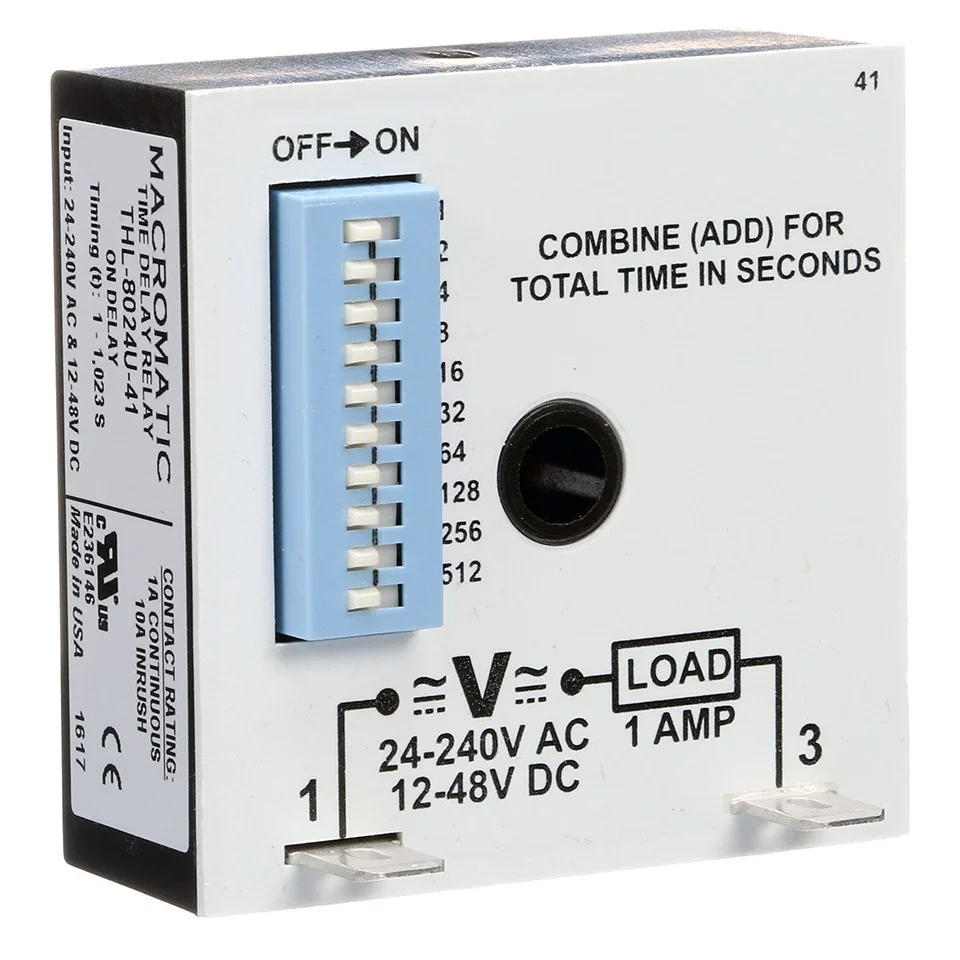

MACROMATIC THL-8024U-41 Time Delay Relay, 1-1023 Sec, 24-240VAC, 1A Normally Open
Get it by Tuesday, Aug 18
€49.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Time Delay Relay |
| Contact | Solid State |
| Contact Rating | 1A |
| Contact Rating (a) | 1A |
| Contacts | Solid State |
| Dc Voltage | 12-48V DC |
| Eu Rohs Indicator | Yes |
| Family Series | Macromatic Relays, THL-8 Series |
| Gross Weight | 0.1285 lbs. |
| Max. Time | 1023 sec. |
| Mounting Type | Surface |
| Multi-function | No |
| Nominal Coil Voltage | 12/48V DC/24/240V AC |
| Output Amps | 1A |
| Primary Type | Time Delay Relays |
| Series | THL-8 Series |
| Termination | 0.25" Flat Blade |
| Time Range Adjustment | Onboard |
| Timer | 0 min. to 1 min., 0 min. to 2 min., 0 min. to 3 min., 0 min. to 5 min., 0 min. to 10 min., 0 min. to 15 min. |
| Timing Range | 1 - 1,023 Seconds |
| Voltage Ac | 24-240V AC |
| Voltage Dc | 12-48V DC |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 2.9 |
| Ship width (cm) | 5.08 |
Product Variants
| Product | Model | Max. Time | Timer | Output Amps | Dc Voltage | Mounting Type | Contact Rating | Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
THL-8024U-40 | 102.3 sec. | - | 1A | 12-48V DC | Surface | 1A | THL-8 Series | €49.02 | |
 |
THL-8024U-42 | 10230 sec. | 0 min. to 1 min., 0 min. to 2 min., 0 min. to 3 min., 0 min. to 5 min., 0 min. to 10 min., 0 min. to 15 min., 0 min. to 30 min., 0 min. to 60 min., 0 min. to 100 min. | 1A | 12-48V DC | Surface | 1A | THL-8 Series | €49.02 |
