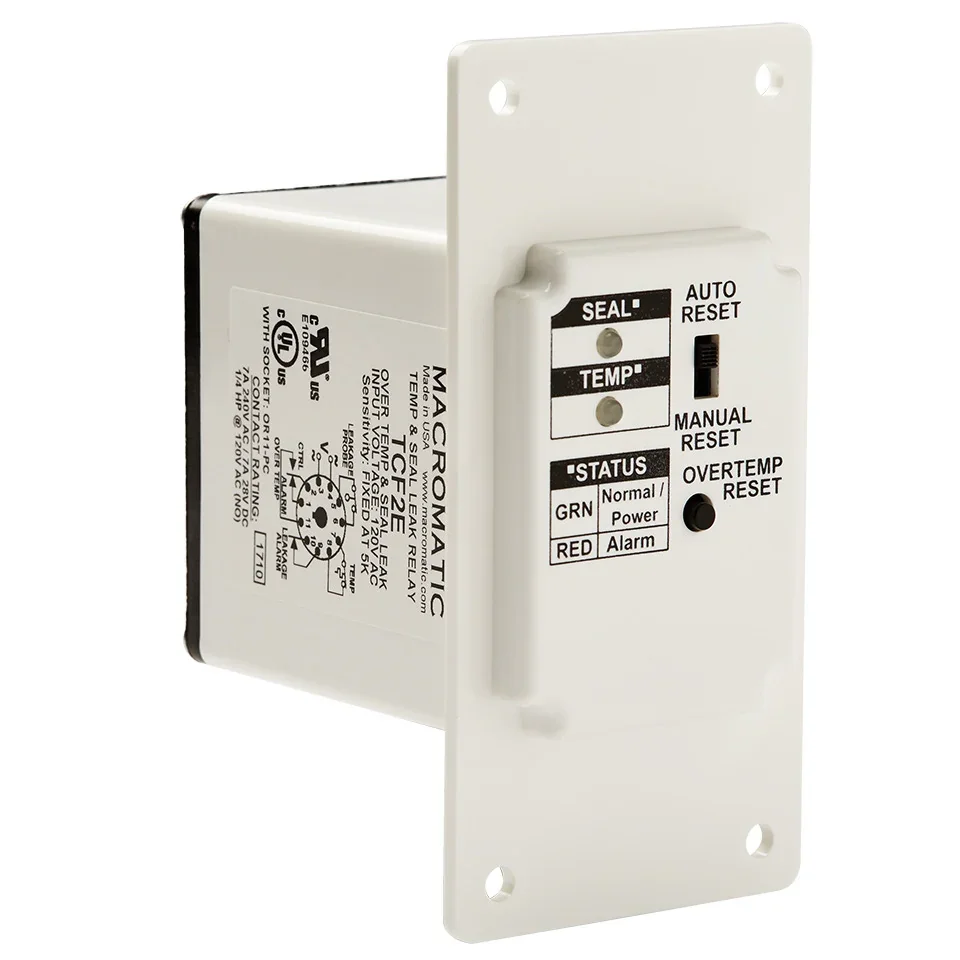

MACROMATIC TCF8E Pump Seal Failure Relay, 24VAC, 7A SPDT
Get it by Friday, Aug 14
€275.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Relay |
| Amps Supported | 7A |
| Amps Unbalance Detect | No |
| Contact Failure Detect | No |
| Display Type | LED Status Indicator |
| Family Series | Macromatic Protection Relays, TCF Series |
| Gross Weight | 0 lbs. |
| High Power Over Voltage Trip | No |
| Input Voltage | 24V AC |
| Line Voltage | 24V |
| Lo Hp Trip Detect | No |
| Lo Kw Trip Detect | No |
| Lo Pwr (under Vltg) Trip | No |
| Manual Reset | Yes |
| Mounting | Door |
| No. Of Phase | 1 |
| Output Relay | Spdt, Dpdt |
| Over Amps | No |
| Phase Loss Detect | No |
| Phase Rvrse/rotatn Detect | No |
| Rapid Cycling Detect | No |
| Restart Delay | 1 sec. |
| Series | TCF Series |
| Time Delay Trip | 1 sec. |
| Type Of Display | LED Status Indicator |
| Under Amps Detect | No |
| Var Restart Delay | No |
| Variable Point Trip | No |
| Voltage Unbalance Detect | No |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 10.67 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 5.33 |
| Country of Origin | US |
Product Variants
| Product | Model | Input Voltage | Amps Supported | Line Voltage | Mounting | No. Of Phase | Output Amps | Time Delay Trip | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
TCF1D100 | 240V AC | 7A | 240V | Flange | 1 | 7A | 1 sec. | €239.26 | |
 |
TCF1D250 | 240V AC | 7A | 240V | Flange | 1 | 7A | 1 sec. | €239.26 | |
 |
TCF1E | 240V AC | 7A | 240V | Door | 1 | 7A | 1 sec. | €275.21 | |
 |
TCF2D100 | 120V AC | 7A | 120V | Flange | 1 | 7A | 1 sec. | €239.26 | |
 |
TCF2D250 | 120V AC | 7A | 120V | Flange | 1 | 7A | 1 sec. | €239.26 | |
 |
TCF2E | 120V AC | 7A | 120V | Door | 1 | 7A | 1 sec. | €275.21 | |
 |
TCF2F | 120V AC | 14A | 120V | Deadfront Door-Mounting | 1 | 7A | - | €295.05 |
