MACROMATIC SFP120C100 Pump Seal Failure Relay, 3VA, Indicator Style LED, -40 to 85 Deg C | AE7BKJ 5WMJ8

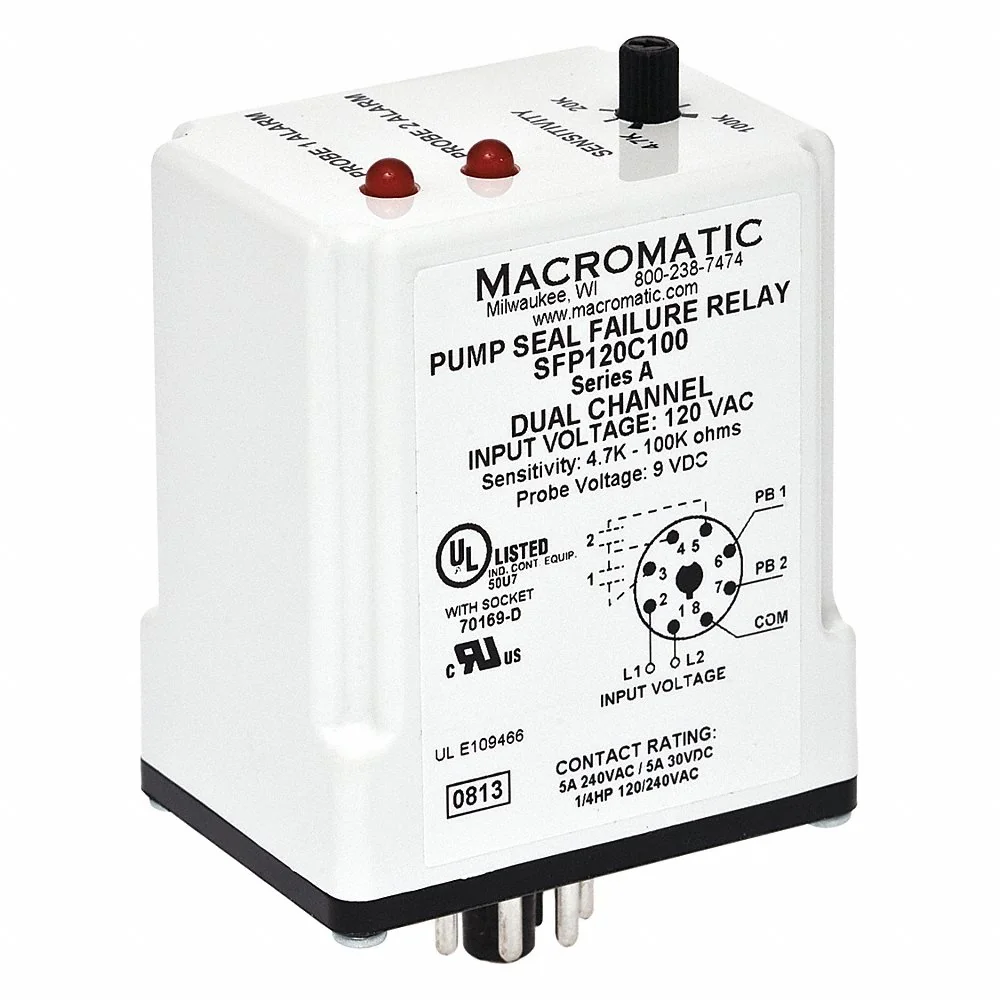

MACROMATIC SFP120C100 Pump Seal Failure Relay, 3VA, Indicator Style LED, -40 to 85 Deg C

Item: AE7BKJModel: SFP120C100Cross Ref: 5WMJ8
7 In Stock

Ships within 2 days via

€164.77
5.00% off
€156.53 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Protection Relay
Adjustment Method Rotary Knob
Amps 5A
Amps Supported 10A
Amps Unbalance Detect No
Base Shape Octal
Base Type Octal
Body Depth 2.9"
Body Height 2.33"
Body Width 1.71"
Burden 3 VA @ 5A
Coil Voltage 120V AC
Configuration/contact Rating 8 Pin Single Channel SPDT10A @ 240V AC/7A @ 28V DC. 11 Pin Single Channel DPDT7A @ 240V AC/28V DC. 8 Pin Dual Channel (2) SPNO 5A @ 240V AC/28V DC
Contact Failure Detect No
Contact Form SPST, NO
Contact Rating (ac) 5A @ 240V
Contact Rating (dc) 5A @ 28V
Control Voltage 120V AC
Electrical Connection 8-Pin Terminal
Electrical Connection Type Pin
Electrical Operating Durability 100000
Features Full Status Indication, Pulsed Probes, Automatic Reset When Fault Condition Clears
For Use With Submersible Pumps
Frequency 50/60 Hz
Function Configuration Dual Channel 8 Pin (2) SPNO
Gross Weight 0.42 lbs.
High Power Over Voltage Trip No
Input Voltage 120V AC
Life Mechanical 10000000 Operations
Lo Hp Trip Detect No
Lo Kw Trip Detect No
Lo Pwr (under Vltg) Trip No
Manual Reset No
Max. Amps 10A
Max. Operating Temp. 149°F
Mechanical Operating Durability 10000000
Mount Plug-In
Mounting Plug-In
Mounting Style Plug-In
No. Of Channels Dual Channel
No. Of Contacts 2
No. Of Pins 8
No. Of Pins/terminals 8
Number Of Contacts 2
Operating Amps 5A at 240V AC (Resistive Load), 5A at 28V DC (Resistive Load)
Output (2) 5A SPNO
Over Amps No
Phase Loss Detect No
Phase Rvrse/rotatn Detect No
Power 2 VA
Power Consumption 3 VA
Rapid Cycling Detect No
Relay Function Seal Leakage
Relay Mounting Style Socket
Relay Type Seal Leakage
Resistive Contact Amp Rating 10A
Response Time 1 sec.
Seal Leak Max. Resistance 100000 ohms
Seal Leak Min. Resistance 4700 ohms
Socket Code A
Status Indicator LED Indicator
Type Of Display LED Status Indicator
Under Amps Detect No
Var Restart Delay No
Variable Point Trip No
Voltage 120V AC
Voltage Unbalance Detect No

Shipping Info:

Ship weight (kg) 0.2
Ship height (cm)5.92
Ship length (cm)7.37
Ship width (cm)4.34
HS code8536490080
Country of OriginUS

Product Variants

ProductModelAmpsOperating AmpsNo. Of ContactsNo. Of ChannelsContact FormContact Rating (ac)Contact Rating (dc)BurdenPrice
MACROMATIC SFP120A100 Pump Seal Failure Relay, 3VA, Indicator Style LED, -40 to 85 Deg C | AE7BKH 5WMJ7 SFP120A10010A10A at 240V AC (Resistive Load), 7A at 28V DC (Resistive Load)1Single ChannelSPDT10A @ 240V7A @ 28V3 VA @ 10A€134.74
MACROMATIC SFP120A250 Pump Seal Failure Relay, 3VA, Indicator Style LED, -40 to 85 Deg C | CD3ZHL SFP120A250--------€105.25
MACROMATIC SFP024A250 Pump Seal Failure Relay, 3VA, Indicator Style LED, -40 to 85 Deg C | CD6FQU SFP024A250--------€105.25
MACROMATIC SFP024A100 Pump Seal Failure Relay, 3VA, Indicator Style LED, -40 to 85 Deg C | CD6FQV SFP024A100--------€105.25
MACROMATIC SFP024B250 Pump Seal Failure Relay, 3VA, Indicator Style LED, -40 to 85 Deg C | CD6FQW SFP024B250--------€111.36
MACROMATIC SFP024C250 Pump Seal Failure Relay, 3VA, Indicator Style LED, -40 to 85 Deg C | CD6FQX SFP024C250--------€128.62
MACROMATIC SFP024C100 Pump Seal Failure Relay, 3VA, Indicator Style LED, -40 to 85 Deg C | CD6FQY SFP024C100--------€128.62
