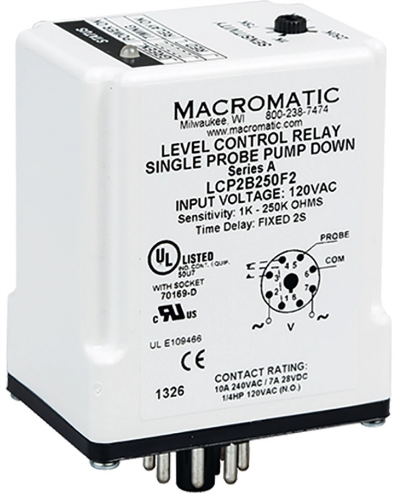

MACROMATIC LCP2B250F2 Level Control Relay, 2VA, Indicator Style LED, -40 to 85 Deg C
Item: AG2BYCModel: LCP2B250F2Cross Ref: 31EL61
7 In Stock
Ships within 2 days via
10.00% off
€100.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Level Control Relay |
| Amps Rating | 10A |
| Application | Level Control Relay |
| Base Shape | Octal |
| Body Depth | 2 4/5" |
| Body Height | 3 1/5" |
| Body Width | 1.7" |
| Contact Form | SPDT |
| Contact Rating (ac) | 10A @ 240V AC |
| Control Type | Liquid Level Single Probe Pump Down |
| Current Rating | 10A |
| Dc Contact Rating | 7A @ 28V DC |
| Electrical Connection Type | Pin |
| Enclosure Color | White |
| Enclosure Depth | 2 4/5" |
| Enclosure Height | 3 1/5" |
| Enclosure Width | 1.7" |
| Features | 5V Dc Pulsed Probe Voltage, Adjustable Sensitivity |
| Flat Pin Width | Not Applicable |
| Input Voltage | 120V AC |
| Max. Resistance Sensitivity | 250000 ohms |
| Minimum Resistance Sensitivity | 1000 ohms |
| Mounting Style | Socket |
| Number Of Pins | 8 |
| Number Of Pins/terminals | 8 |
| Number Of Probes | Single Probe |
| Relay Function | Pump Down |
| Relay Mounting Style | Socket |
| Socket Code | A |
| Special Information | 8 Pin Octal Socket Required, Galvanically Isolated |
| Special Information | Galvanically Isolated, 8 Pin Octal Socket Required |
| Status Indicator | LED Indicator |
| Switch Type | Single Pole Double Throw |
| Type | Plug In |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 8.13 |
| Ship length (cm) | 7.11 |
| Ship width (cm) | 4.32 |
| HS code | 8536490075 |
| Country of Origin | US |
Product Details:
- Special Features: LED Indication, 5VDC Pulsed Probe Voltage, Adjustable Sensitivity, 10A Relay Output
Product Variants
| Product | Model | Load Capacity | Indicator Style | Input Voltage | Temp. Range | Enclosure Depth | Enclosure Height | Enclosure Width | Enclosure Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCP2A250F2 | - | - | 120V AC | - | 2 4/5" | 3 1/5" | 1.7" | White | €111.53 | |
 |
LCP1A100F10 | 2 VA | LED | - | -40°C to +85°C | - | - | - | - | €87.42 | |
 |
LCP1A100F1 | 2 VA | LED | - | -40°C to +85°C | - | - | - | - | €87.42 | |
 |
LCP1A100F2 | 2 VA | LED | - | -40°C to +85°C | - | - | - | - | €87.42 | |
 |
LCP1A100F30 | 2 VA | LED | - | -40°C to +85°C | - | - | - | - | €87.42 | |
 |
LCP1A100F3 | 2 VA | LED | - | -40°C to +85°C | - | - | - | - | €87.42 | |
 |
LCP1A100F4 | 2 VA | LED | - | -40°C to +85°C | - | - | - | - | €87.42 |
