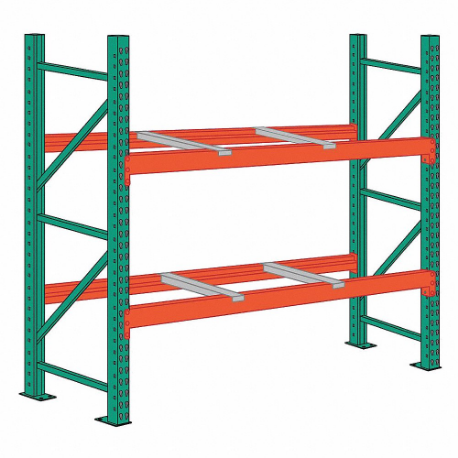

LYON 97SFB144042096 Pallet Rack Starter Unit, 108 Inch x 42 Inch x 8 ft, 14 ga Beams, 14 ga Uprights
Get it by Monday, Dec 22
10.00% off
€1,532.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pallet Rack Starter Unit |
| Beam Gauge | 14 ga. |
| Beam Height | 6" |
| Beam Step Depth | 1" |
| Beam Style | Step Beam |
| Color | Green, Orange |
| Connection Type | Teardrop |
| Finish | Powder Coated |
| Includes | (2) Uprights, (4) Beams, Front To Back Supports |
| Load Capacity Per Level | 6790 lbs. |
| Material | Steel |
| Metal Forming Type | Roll Formed |
| Number Of Shelves | 2 |
| Overall Depth | 42" |
| Overall Height | 8 ft. |
| Overall Width | 108" |
| Overall Wxdxh | 108" x 42" x 8 ft. |
| Pallet Rack Beam Style | Step Beam |
| Pallet Rack Configuration | Starter |
| Pallet Rack Construction | Teardrop |
| Pallet Rack Style | Roll Formed |
| Upright Gauge | 14 ga. |
| Upright Load Capacity @ 36 In | 20600 lbs. |
| Usable Width | 2.3 ft. |
| Whole Unit Load Capacity | 13580 lbs. |
| Whole Unit Load Capacity1 | 13580 lbs. |
Shipping Info:
| Ship weight (kg) | 158.76 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Pallet Rack Configuration | Overall Height | Overall Width | Load Capacity Per Level | Usable Width | Overall Depth | Finish | Whole Unit Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
97AWD108042144 | Add On | 12 ft. | 108" | 6320 lbs. | 9 ft. | 42" | Powder Coated | 12640 lbs. | €2,132.16 | |
 |
97AFB120042144 | Add On | 12 ft. | 108" | 6140 lbs. | 10 ft. | 42" | Powder Coated | 12280 lbs. | €1,743.03 | |
|
97AFB096042144 | Add On | 12 ft. | 108" | 5200 lbs. | 8 ft. | 42" | Powder Coated | 10400 lbs. | €1,429.78 | |
|
97AFB144042144 | Add On | 12 ft. | 108" | 6790 lbs. | 2.3 ft. | 42" | Powder Coated | 13580 lbs. | €2,013.81 | |
|
97AFB108042144 | Add On | 12 ft. | 108" | 6320 lbs. | 9 ft. | 42" | Powder Coated | 12640 lbs. | €1,563.46 | |
|
97AWD096042144 | Add On | 12 ft. | 108" | 5200 lbs. | 8 ft. | 42" | Powder Coat | 10400 lbs. | €1,954.80 | |
 |
97AWD120042144 | Add On | 12 ft. | 108" | 6140 lbs. | 10 ft. | 42" | Powder Coated | 12280 lbs. | €2,173.75 | RFQ
|
