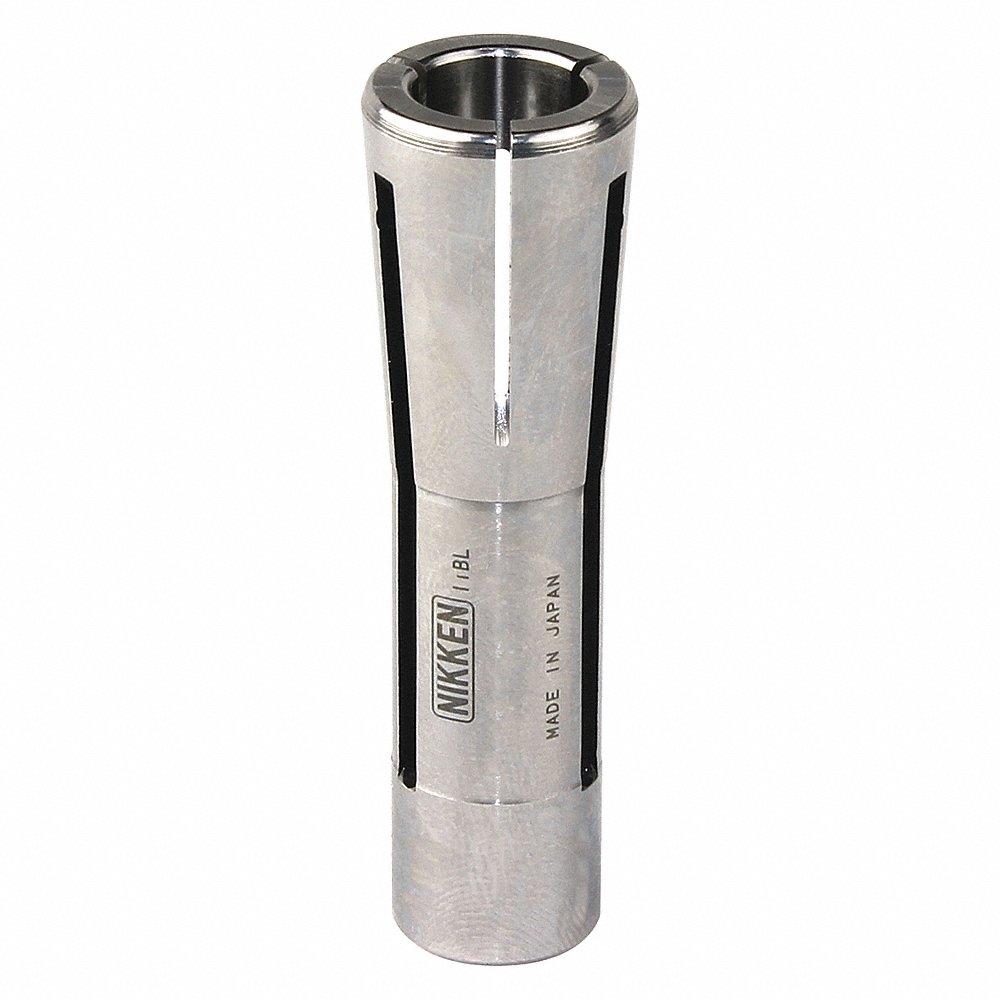

LYNDEX-NIKKEN VMK8-4 Collet, Round Face, 4 mm
Item: CR9VPJModel: VMK8-4Cross Ref: 38RH94
7 In Stock
Ships within 2 days via
10.00% off
€157.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Collet |
| Bore Shape | Round |
| Clamping Hole Length | 49/64" |
| Collapse Range - Maximum | 4 mm |
| Collet Series | Mmc8/Vmc8 |
| Collet Type | Sealed |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Face Shape | Round |
| Features | 1000 psi High-Pressure Coolant Capable, Coolant Collets Are Mechanically Sealing, No Additional Accessories Required To Make These Collets Coolant-Through Capable |
| For Use With | MMC8 Mini Chuck |
| Head Dia. | 15 mm |
| Max. Body Dia. | 4 mm |
| Min. Size | 4 mm |
| Number Of Slots | 3 |
| Outside Diameter - Maximum | 0.591" |
| Overall Length | 2 1/32" |
| System Of Measurement | Metric |
| Taper Angle | 8° |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Face Shape | Collet Type | Max. Body Dia. | Collet Series | Size | Clamping Hole Length | Material | Internal Thread Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
018-024 | Round | Standard | 3/8" | DA180 Series | 3/8" | 1 5/16" | Low Carbon Steel | - | €38.47 | |
 |
020-016 | Round | Standard | 1/4" | DA200 Series | 1/4" | 61/64" | Low Carbon Steel | - | €32.64 | |
|
020-024 | Round | Standard | 3/8" | DA200 Series | 3/8" | - | Low Carbon Steel | - | €32.64 | |
 |
500-004 | Round | Standard | 1/16" | 5C Series | - | 15/64" | - | 1.042"-24 | €56.57 | |
|
500-009 | Round | Standard | 9/64" | 5C Series | - | 25/64" | - | 1.042"-24 | €49.50 | |
|
500-010 | Round | Standard | 5/32" | 5C Series | - | 25/64" | - | 1.042"-24 | €49.50 | |
|
500-011 | Round | Standard | 11/64" | 5C Series | - | 25/64" | - | 1.042"-24 | €49.50 |
