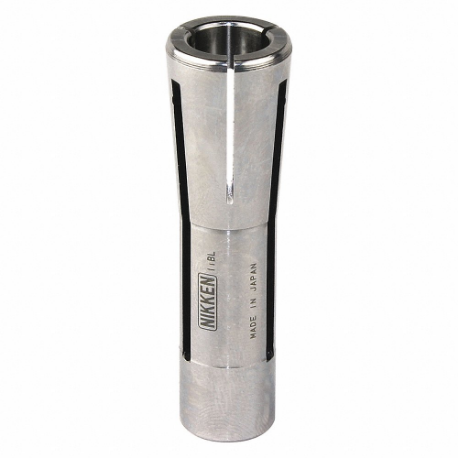

LYNDEX-NIKKEN VMK8-2 Collet, Round Face, 2 mm
Item: CR9WJRModel: VMK8-2Cross Ref: 38RH86
7 In Stock
Ships within 2 days via
5.00% off
€192.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Collet |
| Bore Shape | Round |
| Clamping Hole Length | 21.5 mm |
| Collet Series | Mmc8/Vmc8 |
| Collet Type | Sealed |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Face Shape | Round |
| Features | 1000 psi High-Pressure Coolant Capable, Coolant Collets Are Mechanically Sealing, No Additional Accessories Required To Make These Collets Coolant-Through Capable |
| For Use With | MMC8 Mini Chuck |
| Head Dia. | 15 mm |
| Max. Body Dia. | 2 mm |
| Max. Collapse | 2 mm |
| Max. Outside Dia. | 0.591" |
| Min. Size | 2 mm |
| No. Of Slots | 3 |
| Overall Length | 2 1/32" |
| System Of Measurement | Metric |
| Taper Angle | 8° |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Body Dia. | Max. Outside Dia. | Head Dia. | Min. Size | For Use With | Face Shape | Collet Type | Coolant Through | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
018-024 | 3/8" | 1.04" | 1.035" | 3/8" | Collet Chucks | Round | Standard | No | €38.47 | |
 |
020-016 | 1/4" | 0.54" | 0.539" | 1/4" | Collet Chucks | Round | Standard | No | €32.64 | |
|
020-024 | 3/8" | 0.54" | 0.539" | 3/8" | Collet Chucks | Round | Standard | No | €32.64 | |
 |
500-004 | 1/16" | 1.47" | 1.485" | 1/16" | Collet System | Round | Standard | No | €56.57 | |
|
500-009 | 9/64" | 1.47" | 1.485" | 9/64" | Collet System | Round | Standard | No | €49.50 | |
|
500-010 | 5/32" | 1.47" | 1.485" | 5/32" | Collet System | Round | Standard | No | €49.50 | |
|
500-011 | 11/64" | 1.47" | 1.485" | 11/64" | Collet System | Round | Standard | No | €49.50 |
