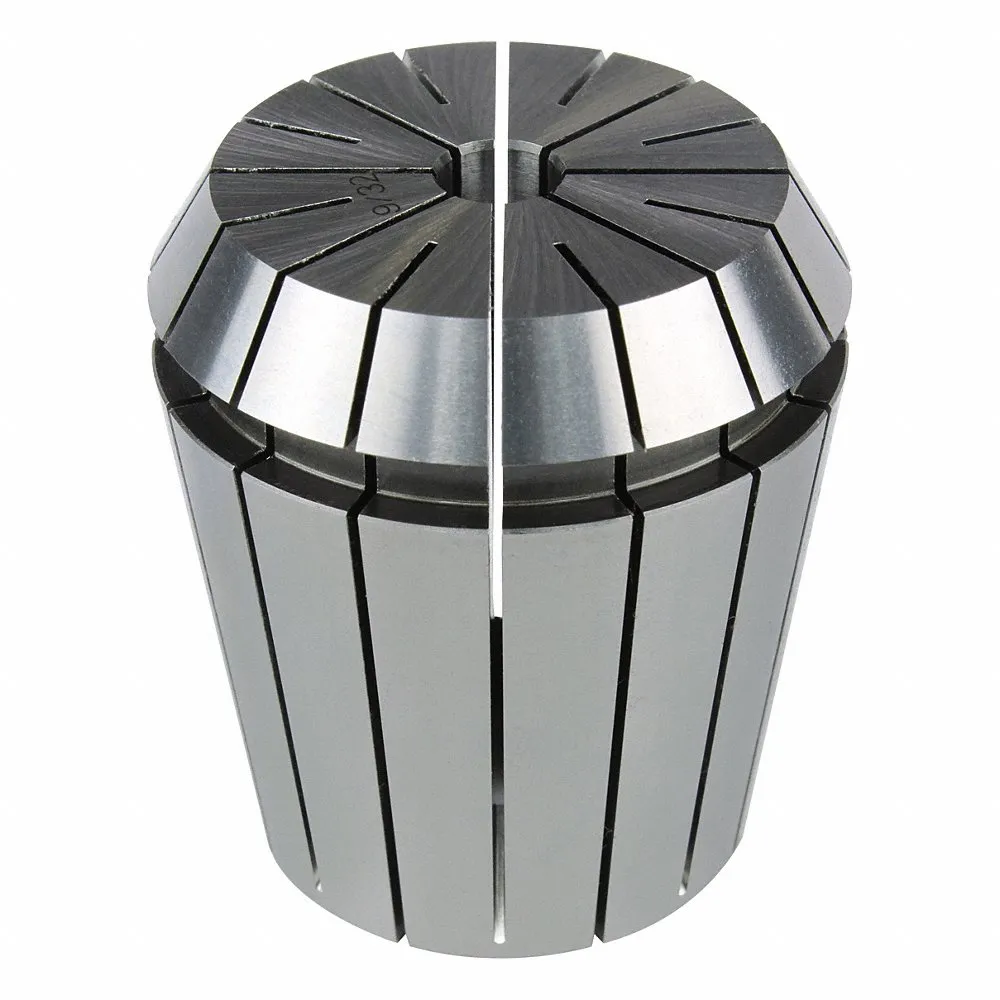

LYNDEX-NIKKEN E40-413(C) Collet, Round Face, 10.50 mm
Item: CR9WNPModel: E40-413(C)Cross Ref: 38PP24
7 In Stock
Ships within 2 days via
10.00% off
€147.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Collet |
| Bore Shape | Round |
| Clamping Hole Length | 1 19/64" |
| Collapse Range | 10 mm to 10.5 mm |
| Collet Series | Er40 |
| Collet Size | 10.5 mm |
| Collet Type | Sealed Coolant |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Face Shape | Round |
| For Use With | ER Collet Chucks |
| Head Dia. | 41.2 mm |
| Material | Chromium-Molybdenum |
| Max. Body Dia. | 10.5 mm |
| Max. Bore Dia. | 31.2 mm |
| Min. Size | 0.393" |
| Number Of Slots | 8 |
| Outside Diameter - Maximum | 1.61" |
| Overall Length | 1 13/16" |
| Standards | Din 6499 |
| System Of Measurement | Metric |
| Taper Angle | 16° |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Face Shape | Collet Type | Max. Body Dia. | Collet Series | Size | Clamping Hole Length | Material | Internal Thread Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
018-024 | Round | Standard | 3/8" | DA180 Series | 3/8" | 1 5/16" | Low Carbon Steel | - | €38.47 | |
 |
020-016 | Round | Standard | 1/4" | DA200 Series | 1/4" | 61/64" | Low Carbon Steel | - | €32.64 | |
|
020-024 | Round | Standard | 3/8" | DA200 Series | 3/8" | - | Low Carbon Steel | - | €32.64 | |
 |
500-004 | Round | Standard | 1/16" | 5C Series | - | 15/64" | - | 1.042"-24 | €56.57 | |
|
500-009 | Round | Standard | 9/64" | 5C Series | - | 25/64" | - | 1.042"-24 | €49.50 | |
|
500-010 | Round | Standard | 5/32" | 5C Series | - | 25/64" | - | 1.042"-24 | €49.50 | |
|
500-011 | Round | Standard | 11/64" | 5C Series | - | 25/64" | - | 1.042"-24 | €49.50 |
