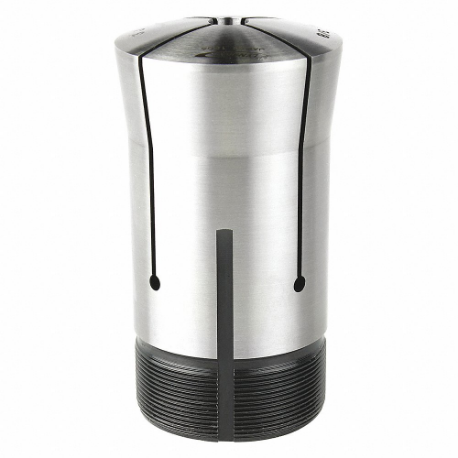

LYNDEX-NIKKEN 300-059 Collet, Round Face, 59/64 Inch Size
Item: CR9VWYModel: 300-059Cross Ref: 38NR31
7 In Stock
Ships within 2 days via
5.00% off
€126.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Collet |
| Bore Shape | Round |
| Clamping Hole Length | 1 9/16" |
| Collet Series | 3J Series |
| Collet Size | 59/64" |
| Collet Type | Standard |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| External Thread Direction | Right Hand |
| External Thread Size | 1.988-20 |
| Face Shape | Round |
| For Use With | Collet System |
| Head Dia. | 2 1/5" |
| Internal Thread Direction | Right Hand |
| Internal Thread Size | 1.79"-24 |
| Max. Body Dia. | 59/64" |
| Max. Bore Dia. | 2" |
| Max. Outside Dia. | 2.21" |
| Measurement System | Inch |
| Min. Size | 59/64" |
| No. Of Slots | 4 |
| Overall Length | 3 3/4" |
| System Of Measurement | Imperial |
| T.i.r. Tolerance | 0.0015" |
| Taper Angle | 14.246° |
Shipping Info:
| Ship weight (kg) | 0.67 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Body Dia. | Max. Outside Dia. | Head Dia. | Min. Size | For Use With | Face Shape | Collet Type | Coolant Through | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
018-024 | 3/8" | 1.04" | 1.035" | 3/8" | Collet Chucks | Round | Standard | No | €38.47 | |
 |
020-016 | 1/4" | 0.54" | 0.539" | 1/4" | Collet Chucks | Round | Standard | No | €32.64 | |
|
020-024 | 3/8" | 0.54" | 0.539" | 3/8" | Collet Chucks | Round | Standard | No | €32.64 | |
 |
500-004 | 1/16" | 1.47" | 1.485" | 1/16" | Collet System | Round | Standard | No | €56.57 | |
|
500-009 | 9/64" | 1.47" | 1.485" | 9/64" | Collet System | Round | Standard | No | €49.50 | |
|
500-010 | 5/32" | 1.47" | 1.485" | 5/32" | Collet System | Round | Standard | No | €49.50 | |
|
500-011 | 11/64" | 1.47" | 1.485" | 11/64" | Collet System | Round | Standard | No | €49.50 |
