LYNDEX-NIKKEN 100-059 Collet, Round Face, 59/64 Inch Size
Item: CR9VWWModel: 100-059Cross Ref: 38NM94
7 In Stock
Ships within 2 days via
10.00% off
€44.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Collet |
| Bore Shape | Round |
| Collapse Range | 0.9064" to 0.922" |
| Collet Series | Tg100 |
| Collet Size | 59/64" |
| Collet Type | Standard |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Face Shape | Round |
| Finish | Chrome Plated |
| For Use With | Collet Chucks |
| Head Dia. | 1.278" |
| Material | Low Carbon Steel |
| Max. Body Dia. | 59/64" |
| Max. Bore Dia. | 1.121" |
| Measurement System | Inch |
| Outside Diameter - Maximum | 1.38" |
| Overall Length | 2 25/64" |
| System Of Measurement | Fractional Inch |
| T.i.r. Tolerance | 0.0002" |
| Torque - Maximum | 75 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Face Shape | Collet Type | Max. Body Dia. | Collet Series | Size | Clamping Hole Length | Material | Internal Thread Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
010-018 | Round | Standard | 9/32" | DA100 Series | 9/32" | 1 3/16" | Low Carbon Steel | - | €34.26 | |
|
010-024 | Round | Standard | 3/8" | DA100 Series | 3/8" | 1 13/64" | Low Carbon Steel | - | €34.26 | |
 |

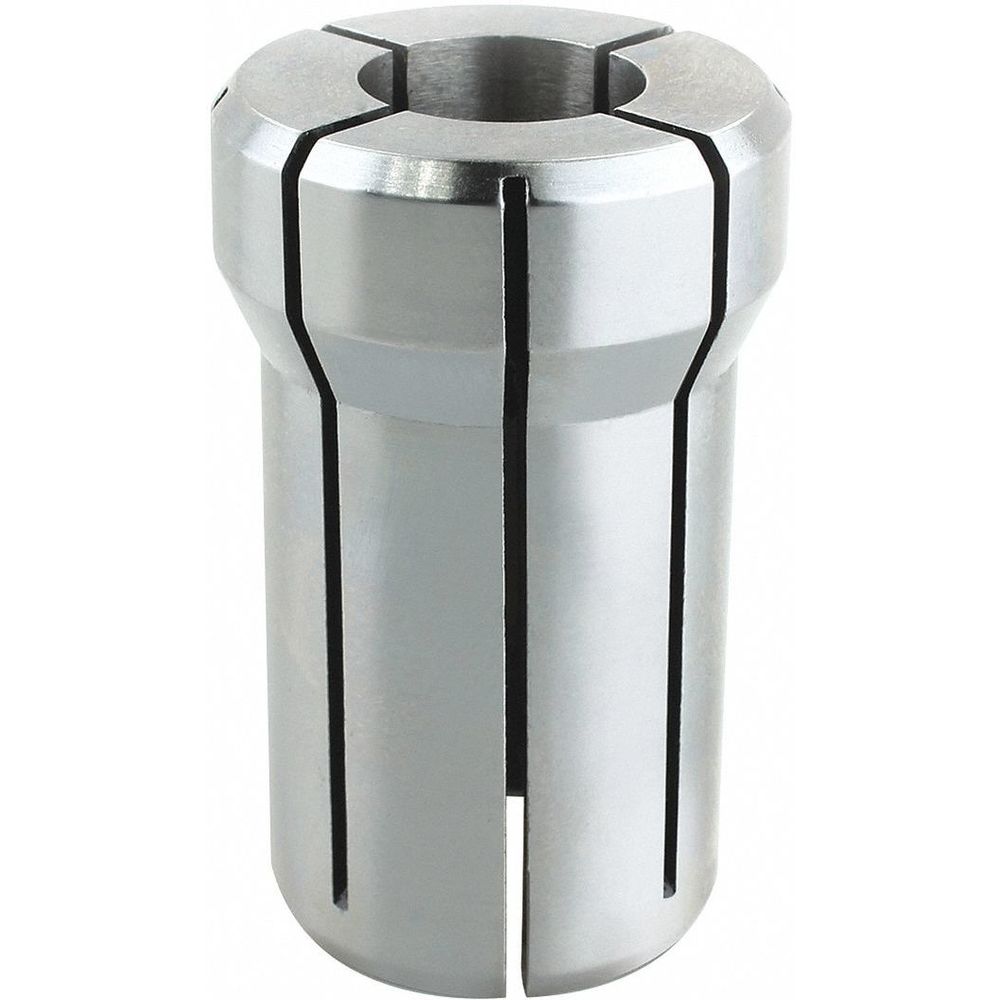

018-024 | Round | Standard | 3/8" | DA180 Series | 3/8" | 1 5/16" | Low Carbon Steel | - | €38.47 | |
 |

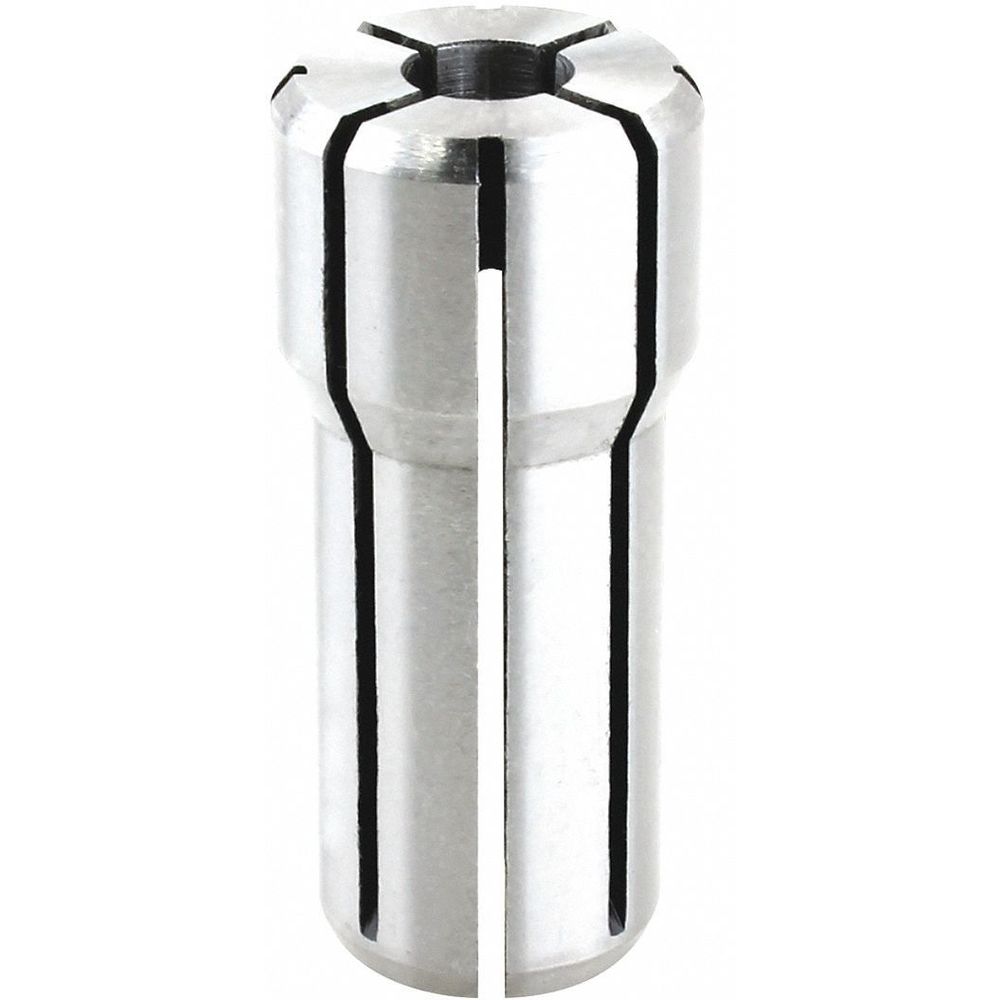

020-016 | Round | Standard | 1/4" | DA200 Series | 1/4" | 61/64" | Low Carbon Steel | - | €32.64 | |
|
020-024 | Round | Standard | 3/8" | DA200 Series | 3/8" | - | Low Carbon Steel | - | €32.64 | |
 |
030-014 | Round | Standard | 7/32" | DA300 Series | 7/32" | - | Low Carbon Steel | - | €32.64 | |
 |

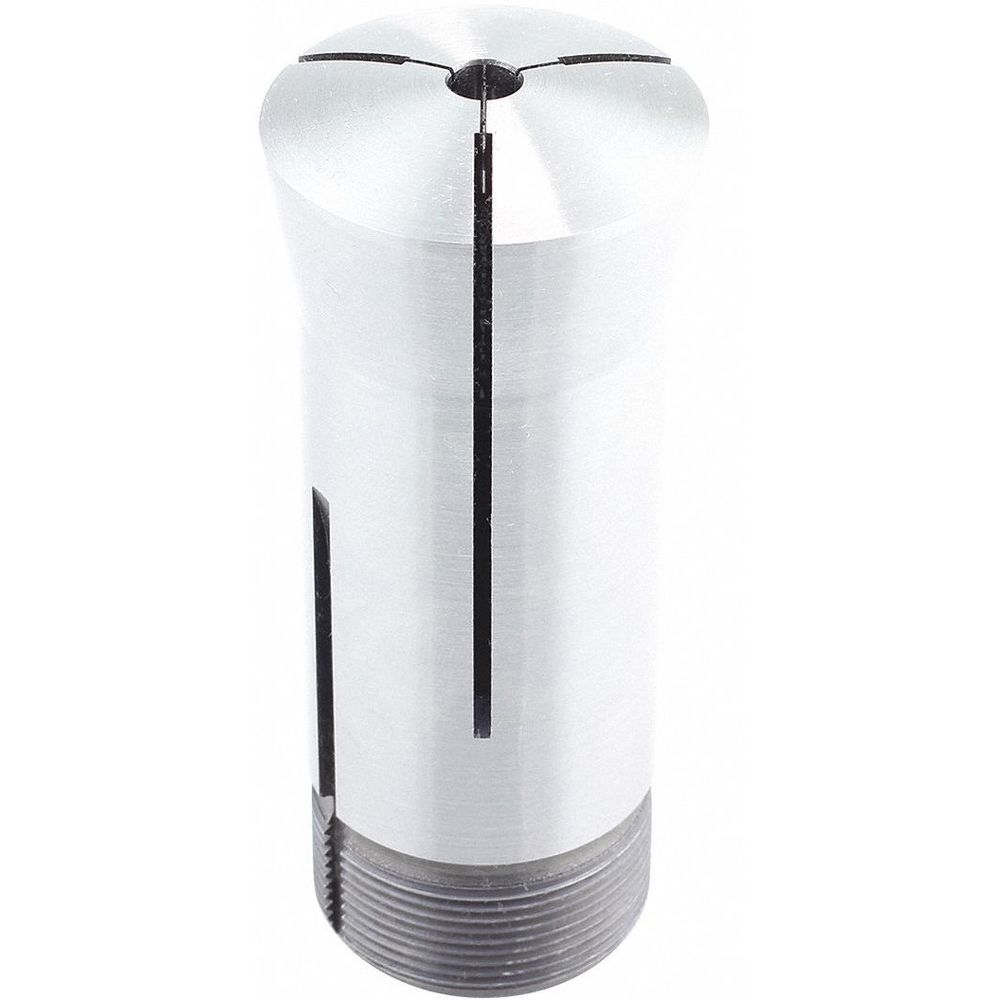

500-004 | Round | Standard | 1/16" | 5C Series | - | 15/64" | - | 1.042"-24 | €56.57 |
