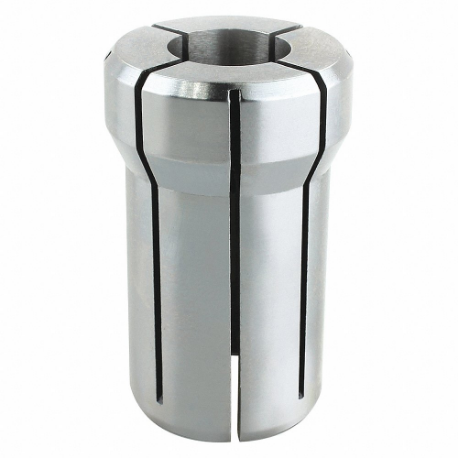

LYNDEX-NIKKEN 018-032 Collet, Round Face, 1/2 Inch Size
Item: CR9UEWModel: 018-032Cross Ref: 38NK46
7 In Stock
Ships within 2 days via
10.00% off
€33.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Collet |
| Bore Shape | Round |
| Clamping Hole Length | 1 11/32" |
| Collapse Range | 0.469" to 0.5" |
| Collet Series | DA180 |
| Collet Size | 1/2" |
| Collet Type | Standard |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Face Shape | Round |
| Finish | Precision Ground |
| For Use With | DA Collet Chucks |
| Head Dia. | 1.035" |
| Material | Low Carbon Steel |
| Max. Body Dia. | 1/2" |
| Max. Bore Dia. | 0.873" |
| Measurement System | Inch |
| Min. Size | 1/2" |
| Number Of Slots | 4 |
| Outside Diameter - Maximum | 1.04" |
| Overall Length | 1 41/64" |
| System Of Measurement | Imperial |
| Taper Angle | 25° |
| Torque - Maximum | 40 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Face Shape | Collet Type | Max. Body Dia. | Collet Series | Size | Clamping Hole Length | Material | Internal Thread Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
018-024 | Round | Standard | 3/8" | DA180 Series | 3/8" | 1 5/16" | Low Carbon Steel | - | €38.47 | |
 |
020-016 | Round | Standard | 1/4" | DA200 Series | 1/4" | 61/64" | Low Carbon Steel | - | €32.64 | |
|
020-024 | Round | Standard | 3/8" | DA200 Series | 3/8" | - | Low Carbon Steel | - | €32.64 | |
 |
500-004 | Round | Standard | 1/16" | 5C Series | - | 15/64" | - | 1.042"-24 | €56.57 | |
|
500-009 | Round | Standard | 9/64" | 5C Series | - | 25/64" | - | 1.042"-24 | €49.50 | |
|
500-010 | Round | Standard | 5/32" | 5C Series | - | 25/64" | - | 1.042"-24 | €49.50 | |
|
500-011 | Round | Standard | 11/64" | 5C Series | - | 25/64" | - | 1.042"-24 | €49.50 |
