LUMAPRO 3496 Incandescent Bulb, Double Contact Index BAY15d, T6, 14 Vac, 8.26/25.2 Watt, White
Item: AC8WPYModel: 3496Cross Ref: 3EHN2
7 In Stock
Ships within 2 days via
5.00% off
€4.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miniature Incandescent Bulb |
| Amps | 2100 mA |
| Amps Drawn | 2100 mA |
| Applications | Stop, Turn Signal, Parking |
| Average Bulb Life | 600 hrs., 5000 hrs. |
| Bulb Base Type | Double Contact Index (BAY15D) |
| Bulb Dia. | 3/4" |
| Bulb Housing | Glass |
| Bulb Life | 600 hrs., 5000 hrs. |
| Bulb Shape | T6 |
| Dimmable | No |
| Environmental Usage | Indoor Only |
| For Enclosed Fixtures | No |
| High Output | No |
| Housing Material | Glass |
| Indoor/outdoor | Indoor |
| Initial Lumens | 180 lm |
| Lamp Dia. | 3/4" |
| Lamp Shape | T |
| Lamp Type | Miniature T |
| Light Color | White |
| Light Output | 180 lm |
| Light Technology | Incandescent |
| Lumens | 180 lm |
| Max. Overall Length | 1.89" |
| Primary Application | Stop, Turn Signal, Parking |
| Rated Life | 5000 hrs. |
| Trade Number | 3496 |
| Voltage | 14V AC |
| Watts | 8.26/25.2 W |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 4.8 |
| Ship width (cm) | 2.54 |
| HS code | 8539293060 |
| Country of Origin | TW |
Product Variants
| Product | Model | Voltage | Watts | Light Color | Bulb Dia. | Amps | Max. Overall Length | Average Bulb Life | Primary Application | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7443-2PK | 12V AC | 4.2 W | - | - | - | 1.85" | 500 hrs., 1000 hrs. | Automotive | 2 | €12.78 | |
|
7440-10PK | 12V AC | 21 W | White | 7/8" | 1.75A | 1.85" | 300 hrs. | General Purpose | 10 | €37.16 | |
 |

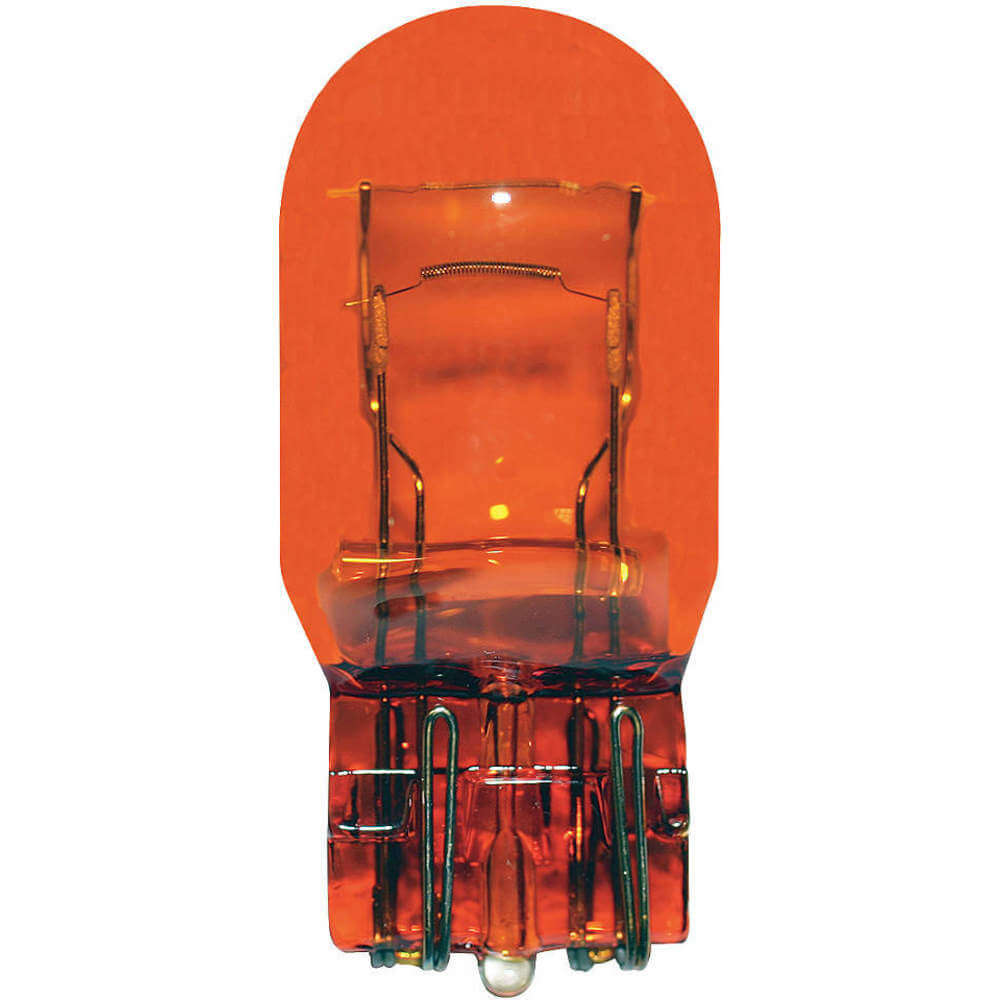

7443NA-10PK | 12V | 25 W | Amber | - | - | 1.85" | 500 hrs., 1000 hrs. | General Purpose | 10 | €64.54 | |
 |

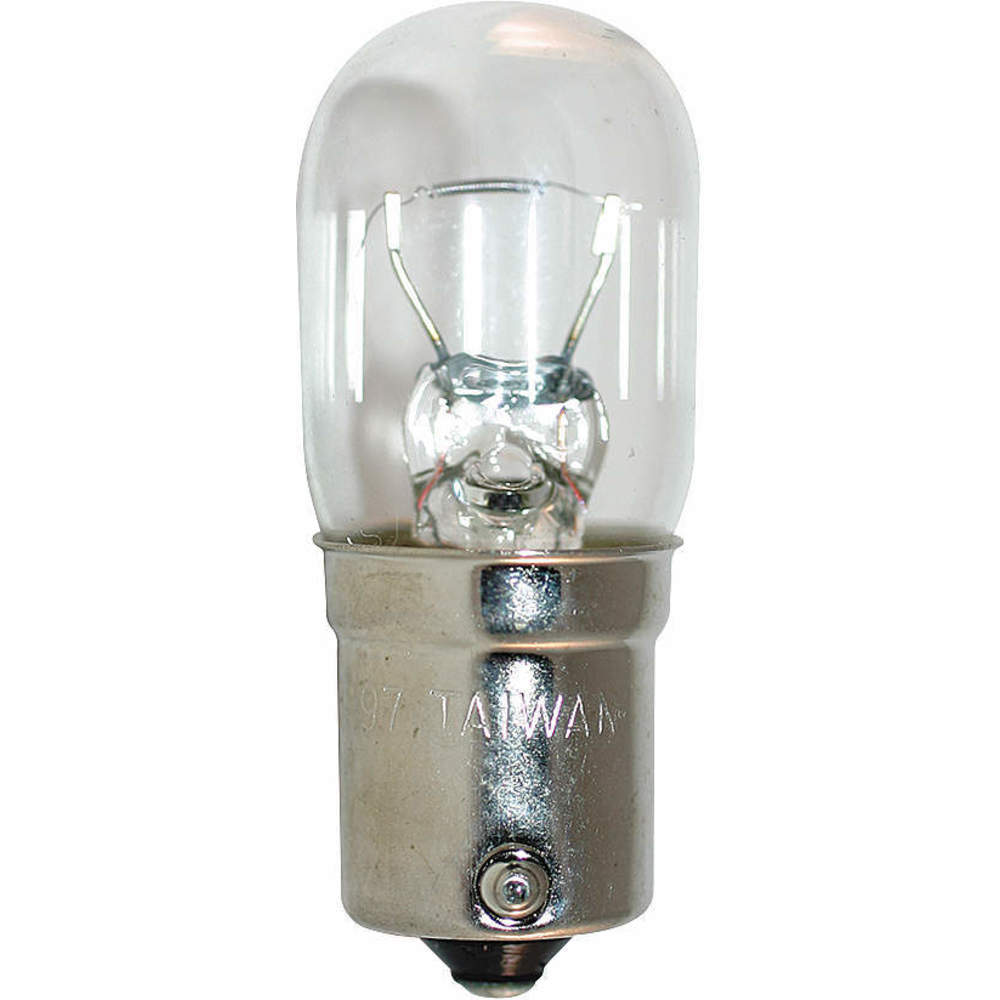

3497 | 12.8V AC | 26.4 W | White | 3/4" | 2.2A | 1.89" | 600 hrs. | High Mount Stop, Turn Signal | 1 | €5.15 | |
 |

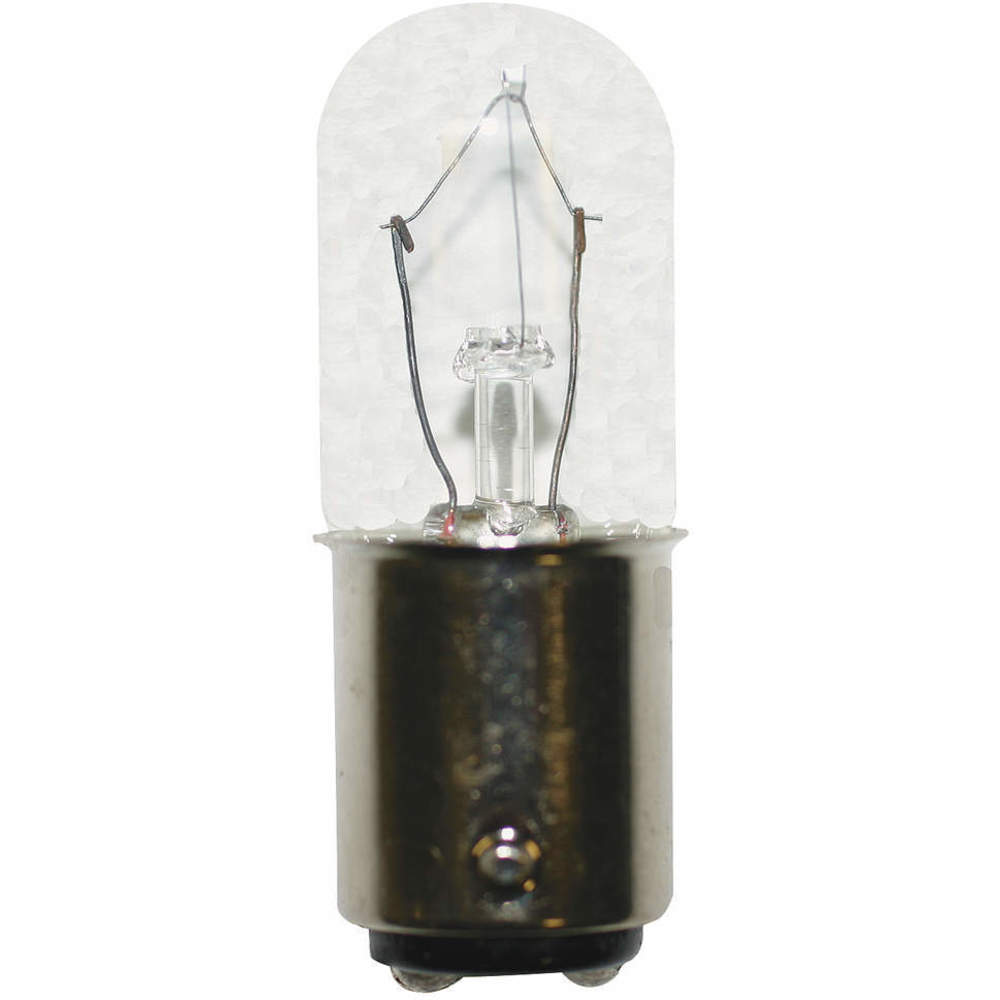

C240-1 | 24V AC | 7 W | White | 3/4" | - | 1.69" | 1000 hrs. | Beacons | 1 | €6.89 | |
 |

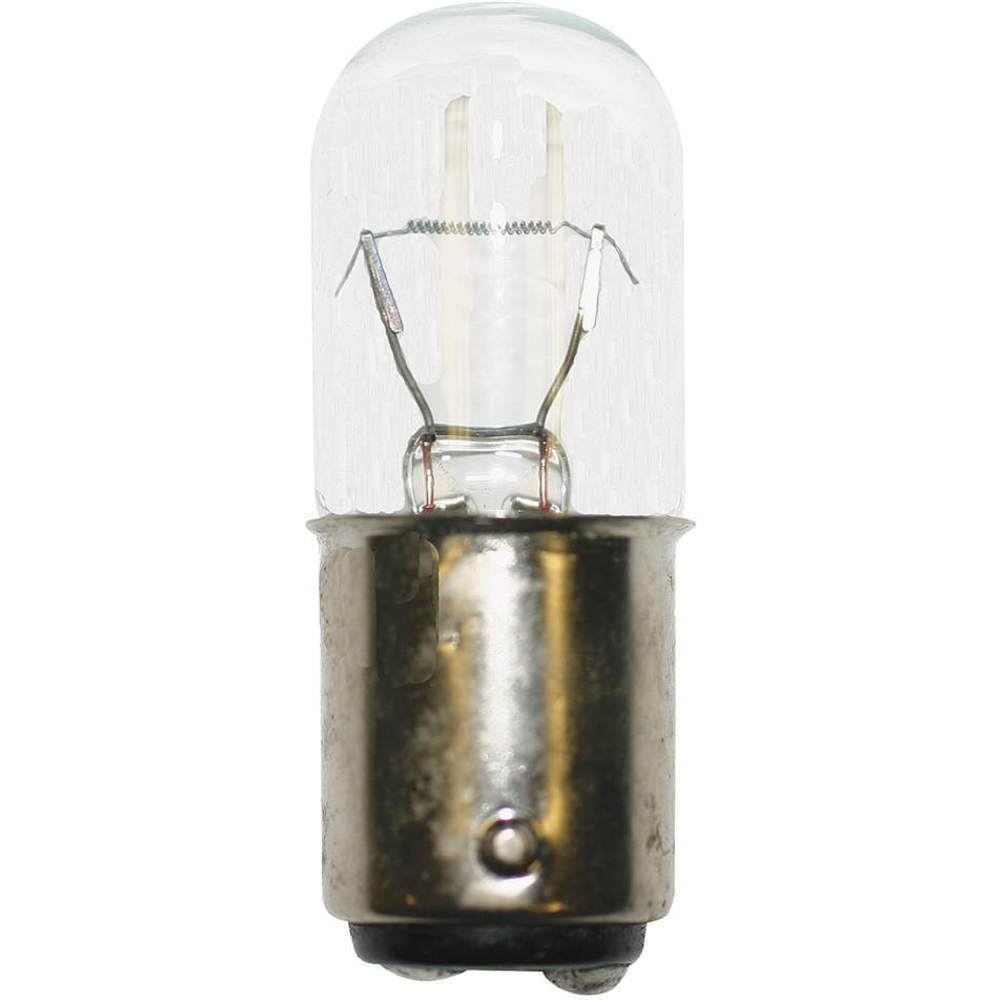

C241-1 | 24V AC | 5 W | White | 3/4" | - | 1.45" | 1000 hrs. | Beacons | 1 | €6.99 | |
 |

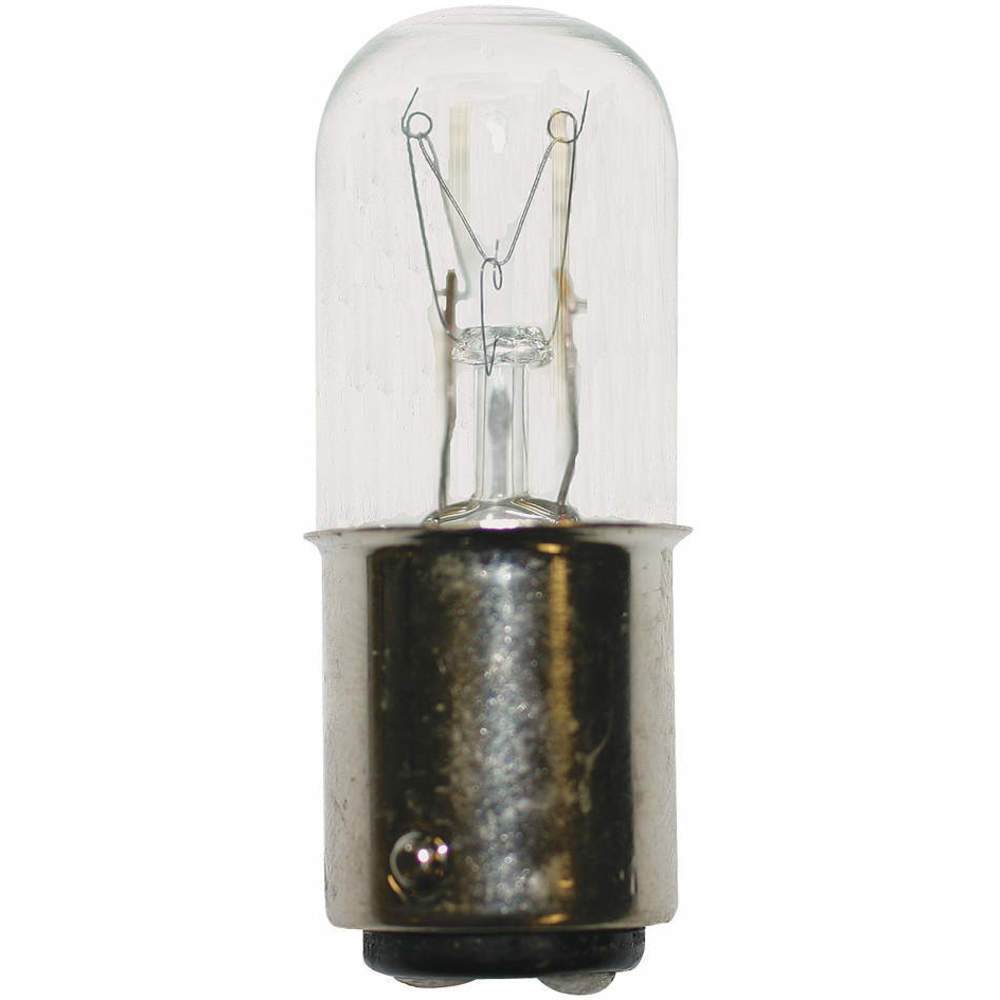

C242-1 | 48V AC | 7 W | White | 3/4" | - | 1.65" | 1000 hrs. | Beacons | 1 | €7.36 |
