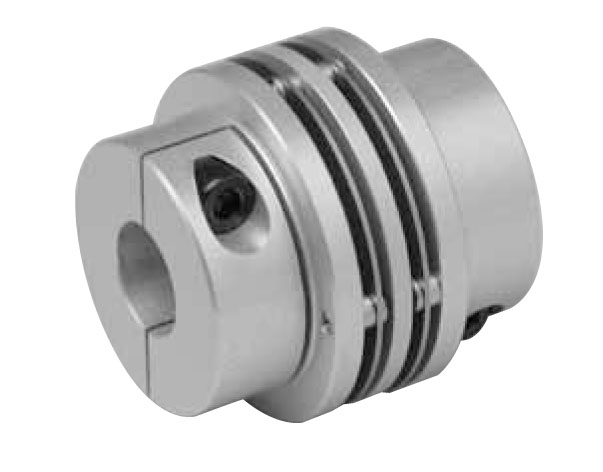

LOVEJOY 68514477162 Motion Control Coupling, 18 Inch Lbs Torque, 1.26 Inch Dia.
Get it by Friday, Aug 21
€312.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Disc Coupling |
| Angular Misalignment | 2° |
| Application | Motion Control |
| Axial Misalignment | -0.016" to +0.016" |
| Bore A | 0.188" |
| Bore B | 1/4" |
| Bore Type | Finished Bore |
| Clamp Screw Size | M3 |
| Coupling Size | Mds32C |
| Cubic Inches | 2.50047 cu. in. |
| Dimension Hd | 0.866" |
| Disc Material | Stainless Steel |
| Features | Zero Backlash Design High Torsional Stiffness Aluminum Hubs With Stainless Steel Discs Moderate-High Torque Capabilities Low Inertia |
| Hub Material | Aluminum |
| Key Way Size | No Keyway |
| Length Thru Bore | 0.539" |
| Max. Bore (dimensions Id1/id2) | 0.394" |
| Max. Operating Temp. | 300°F |
| Min. Bore (dimensions Id1/id2) | 0.236" |
| Moment Of Inertia | 0.212 lbs.-sq. in. |
| Nominal Torque | 18 lbs.-in. |
| Outside Dia. | 1.26" |
| Overall Length | 1.575" |
| Parallel Misalignment | 0.006" |
| Style | Clamp Screw |
| Torsional Stiffness | 8850 lbs.-in./deg. |
| Type | Mini Disc Coupling |
| Weight (complete Coupling W/ Min. Bores) | 1.69 oz. |
Shipping Info:
| Ship height (cm) | 4 |
| Ship length (cm) | 3.2 |
| Ship width (cm) | 3.2 |
| Country of Origin | US |
