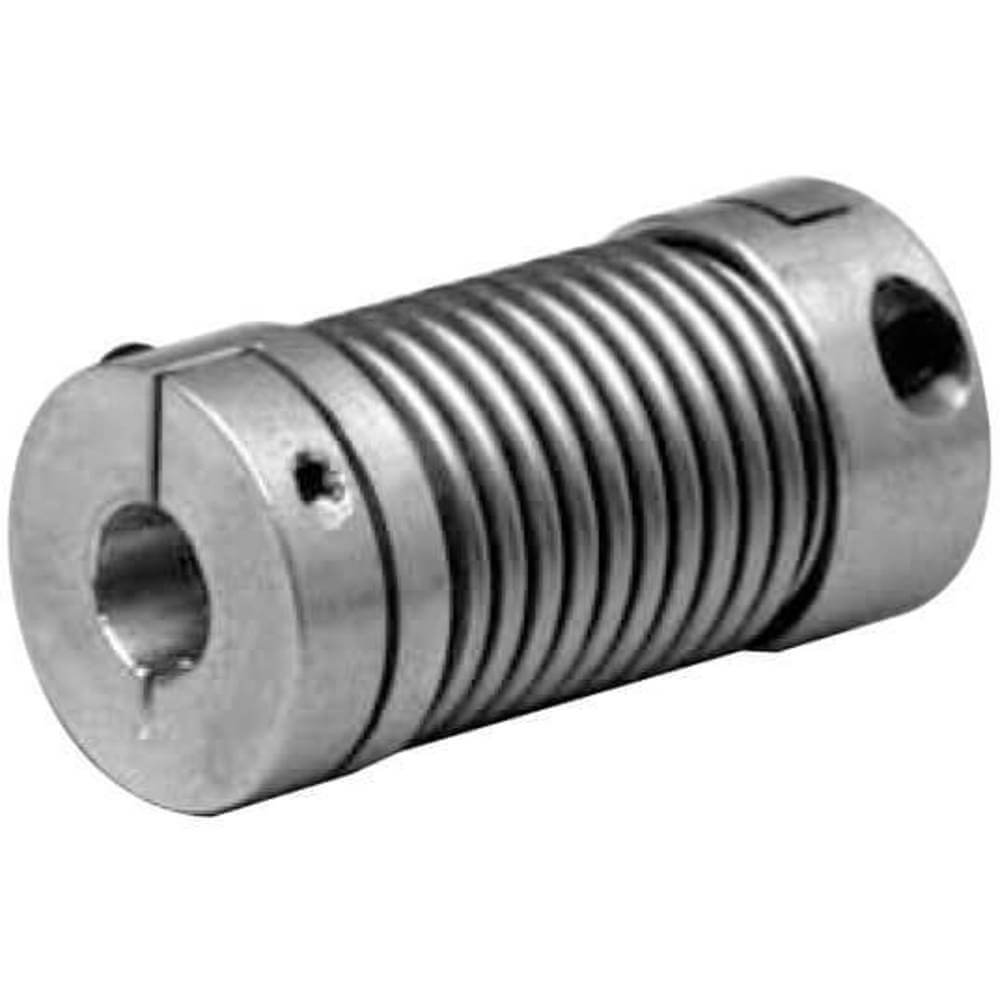

LOVEJOY 68514477000 Clamp Style Coupling, Size BWC41, 1.375 Inch Bore Size
Get it by Thursday, Aug 27
€254.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flexible Shaft Coupling |
| Angular Misalignment | 1.2° |
| Axial Misalignment | 0.012" |
| Bellows Material | Stainless Steel |
| Bore A | 8 mm |
| Bore B | 8 mm |
| Bore Size | 8 mm |
| Bore Type | Bored |
| Coupling Type | Standard Bellows |
| Hub Material | Aluminum |
| Key Way Size | No Keyway |
| Keyway | Without Keyway |
| Keyway Type | No Keyway |
| Length Through Bore | 14 mm |
| Max. Bore Dia. | 16 mm |
| Max. Operating Temp. | 212 Deg. F |
| Max. Operating Temp. | 212°F |
| Max. Speed | 15000 RPM |
| Min. Bore | 6 mm |
| Moment Of Inertia | 0.335 lbs.-sq. in. |
| Nominal Torque | 39.83 lbs.-in. |
| Outside Dia. | 32 mm |
| Overall Length | 41 mm |
| Parallel Misalignment | 0.004" |
| Product Datasheet | lovejoy-68514456618.pdf |
| Style | Clamp |
| System Of Measurement | Metric |
| Torsional Stiffness | 57083 lbs.-in./rad |
Shipping Info:
| Ship height (cm) | 4.1 |
| Ship length (cm) | 3.2 |
| Ship width (cm) | 3.2 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Length Through Bore | Max. Bore Dia. | Nominal Torque | Torsional Stiffness | Moment Of Inertia | Parallel Misalignment | Min. Bore | Axial Misalignment | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 68514476994 | 7 mm | 6.5 mm | 7.97 lbs.-in. | 4487 lbs.-in./rad | 0.009 lbs.-sq. in. | 0.004" | 3 mm | 0.008" | €189.14 | |
| 68514476990 | 7 mm | 6.5 mm | 3.54 lbs.-in. | 2248 lbs.-in./rad | 0.009 lbs.-sq. in. | 0.004" | 3 mm | 0.009" | - | RFQ
|
| 68514476991 | 7 mm | 6.5 mm | 3.54 lbs.-in. | 2248 lbs.-in./rad | 0.009 lbs.-sq. in. | 0.004" | 3 mm | 0.009" | €176.73 | |
| 68514476993 | 7 mm | 6.5 mm | 7.97 lbs.-in. | 4487 lbs.-in./rad | 0.009 lbs.-sq. in. | 0.004" | 3 mm | 0.008" | - | RFQ
|
| 68514476995 | 9 mm | 10 mm | 13.28 lbs.-in. | 6620 lbs.-in./rad | 0.038 lbs.-sq. in. | 0.004" | 3 mm | 0.01" | - | RFQ
|
| 68514476996 | 9 mm | 10 mm | 13.28 lbs.-in. | 6620 lbs.-in./rad | 0.038 lbs.-sq. in. | 0.004" | 3 mm | 0.01" | €198.45 | |
| 68514476999 | 14 mm | 16 mm | 39.83 lbs.-in. | 57083 lbs.-in./rad | 0.335 lbs.-sq. in. | 0.004" | 6 mm | 0.012" | €254.26 |
