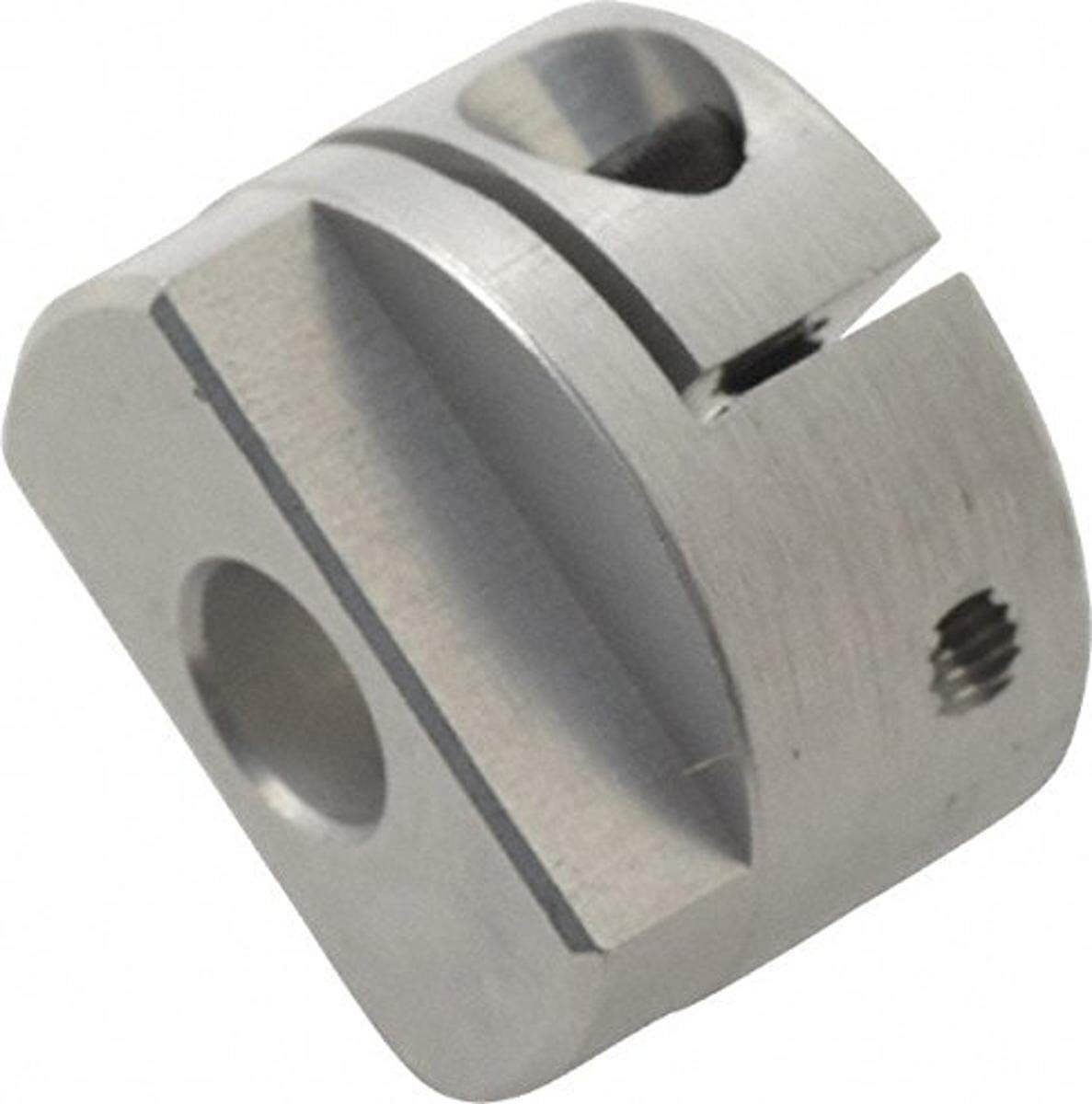

LOVEJOY 68514458114 MOL32 HUB 8MM N/KW Motion Control Coupling Hub, 39.80 Inch Lbs Torque, 1.260 Inch Dia., 0.025 Lbs Inch Sq. Inertia
Get it by Wednesday, Dec 24
€76.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motion Control Coupling Hub |
| Angular Misalignment | 3° |
| Bore Size | 8 mm |
| Bore Type | Bored |
| Coupling Size | MOL32 |
| Coupling Type | Oldham, Three Piece Design W/ Insert |
| Coupling Weight (lb.) | 55 g |
| Coupling Weight (lb.) | 55g |
| Hub Material | Aluminum |
| Keyway | Without Keyway |
| Length Through Bore | 13 mm |
| Max. Bore Dia. | 14 mm |
| Max. Operating Temp. | 80°C |
| Max. Speed | 1200 RPM |
| Min. Bore | 8 mm |
| Moment Of Inertia | 0.025 lbs.-sq. in. |
| Nominal Torque | 39.8 lbs.-in. |
| Outside Dia. | 32 mm |
| Overall Length | 33 mm |
| Parallel Misalignment | 0.1" |
| Product Datasheet | lovejoy-68514456618.pdf |
| Series | MOL Series |
| Set Screw Size | M5 |
| Style | Set Screw |
| System Of Measurement | Metric |
| Torsional Stiffness | 8788 lbs.-in./rad |
| Volume | 0.81285 cu. in. |
Shipping Info:
| Ship height (cm) | 6.6 |
| Ship length (cm) | 3.2 |
| Ship width (cm) | 3.2 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Torsional Stiffness | Parallel Misalignment | Overall Length | Nominal Torque | Bore Size | Max. Bore Dia. | Max. Speed | Min. Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
68514458116 | 8788 lbs.-in./rad | 0.1" | - | 39.8 lbs.-in. | 11 mm | 14 mm | 1200 RPM | 8 mm | €76.64 | |
 |
68514458115 | - | - | - | 39.8 lbs.-in. | 10 mm | - | - | - | €76.64 | |
|
68514458079 | 620 lbs.-in./rad | 2/5" | 18 mm | 6.2 lbs.-in. | 3 mm | 6 mm | 2400 RPM | 3 mm | €51.09 | |
|
68514458080 | 620 lbs.-in./rad | 2/5" | 18 mm | 6.2 lbs.-in. | 4 mm | 6 mm | 2400 RPM | 3 mm | - | RFQ
|
|
68514458081 | 620 lbs.-in./rad | 2/5" | 18 mm | 6.2 lbs.-in. | 5 mm | 6 mm | 2400 RPM | 3 mm | - | RFQ
|
|
68514458082 | 620 lbs.-in./rad | 2/5" | 18 mm | 6.2 lbs.-in. | 6 mm | 6 mm | 2400 RPM | 3 mm | €51.09 | |
|
68514458091 | 974 lbs.-in./rad | 3/5" | 23 mm | 10.6 lbs.-in. | 4 mm | 8 mm | 1900 RPM | 3 mm | - | RFQ
|
