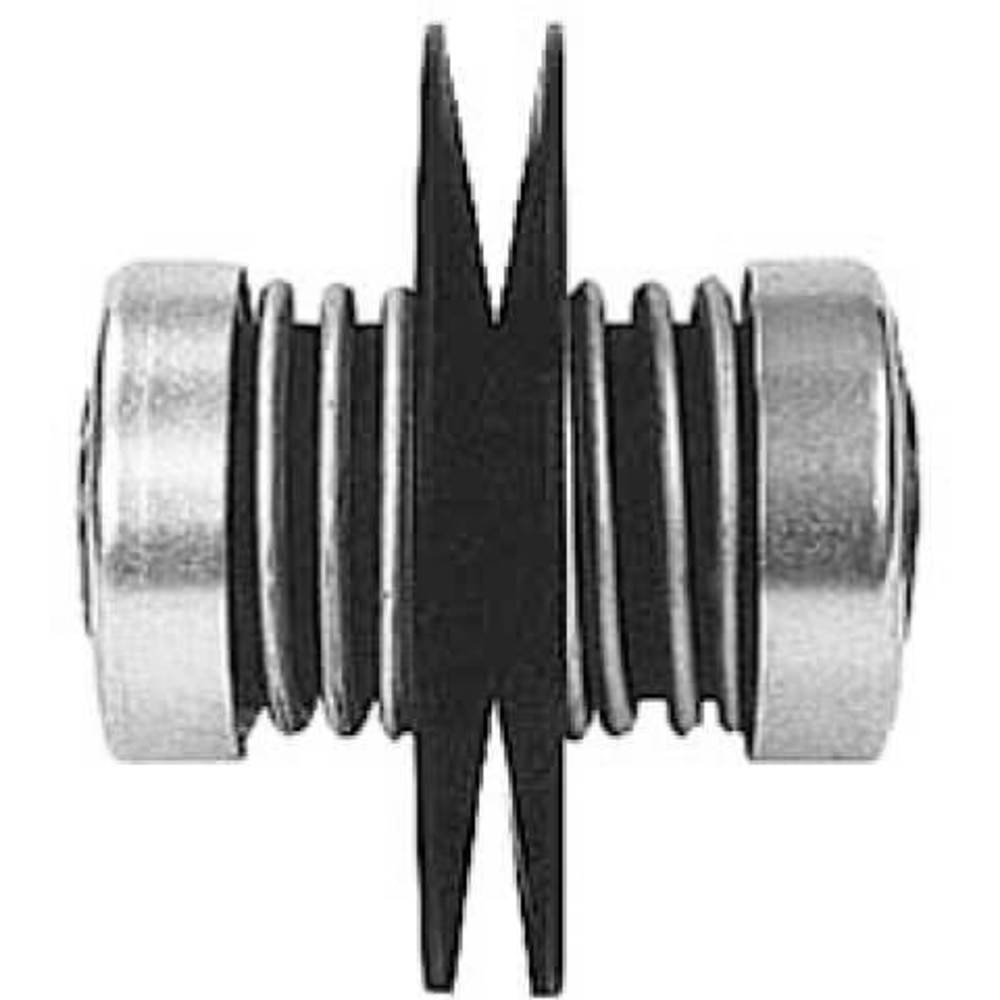

LOVEJOY 68514457645 2620 X 7/8 Spring-Loaded Variable Speed Pulley, 5.06 In Overall Length
€858.17 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Pulley |
| Belt Size | Any B Type |
| Belt Type | B |
| Bore Depth | 3 1/2" |
| Bore Dia. | 7/8" |
| Dimensions D | 3.13" |
| Dimensions L | 2.53" |
| Drive Type | Adjustable Center Driver |
| Features | Three Diameters (5, 6 And 7 Inches) Six Models, Rated For 1 Through 5 Hp At 1,750 RPM Speed Ratios Up To 2.3 To 1 Durable Cast Iron Flanges Use With Standard “B” Section Drive Belts Belt Alignment Is Maintained At All Speeds |
| Key Way Size | 3/16" x 3/32" |
| Max. Pitch Dia. (dimension Pd) | 5.65" |
| Min. Pitch Dia. (dimension Pd) | 2.69" |
| Motor Power @ 1150 Rpm | 1.5 hp |
| Motor Power @ 1750 Rpm | 2 hp |
| Outside Dia. | 6" |
| Overall Length | 5.06" |
| Ratio | 2.11 |
| Torque | 72 lbs.-in. |
| Total Travel Distance | 2 1/5" |
| Volume | 182.16 cu. in. |
Product Variants
| Model | Bore Dia. | Belt Type | Max. Pitch Dia. (dimension Pd) | Min. Pitch Dia. (dimension Pd) | Volume | Drive Type | Belt Size | Ratio | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 68514418700 | 5/8" | - | 5 4/5" | 1.9" | 174.96 cu. in. | Fixed Center Driven | 1422V | 3:1 | €677.97 | |
| 68514418724 | 5/8" | - | 5 4/5" | 1.9" | 174.96 cu. in. | Fixed Center Driven | 1422V | 3:1 | €1,037.73 | |
| 68514418726 | 3/4" | - | 5 4/5" | 1.9" | 174.96 cu. in. | Fixed Center Driven | 1422V | 3:1 | €1,037.73 | |
| 68514418814 | 7/8" | - | 9.7" | 2 4/5" | 875 cu. in. | Adjustable Center Driver | 2926V | 3.41 | €3,020.44 | |
| 68514420374 | 1" | - | 7 7/25" | 2.42" | 401.0625 cu. in. | Fixed Center Driven | 1922V | 9:1 | €1,284.23 | RFQ
|
| 68514418819 | 1 1/8" | - | 9.7" | 2 4/5" | 875 cu. in. | Adjustable Center Driver | 2926V | 3.41 | €3,020.44 | |
| 68514418988 | 1 1/8" | - | 9.7" | 3 1/5" | 1031 cu. in. | Adjustable Center Driver | 2926V | 3:1 | €3,956.91 |
